OPC UA Server Gateway with MQTT-connectivity for S7-Controller
OPC UA Server Gateway with MQTT-connectivity for S7-Controller
€760,00
Quickly available!
Stand-alone Infield Hardware for integrating PLC data in on-premise and Cloud applications

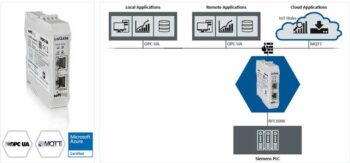

dataFEED uaGate SI is a compact gateway for industrial use providing convenient and secure data connectivity without the need for a PC. It integrates data from a SIMATIC S7-300, S7-400, S7-1200 or S7-1500 PLC via OPC UA into higher-level management softwares such as ERP, MES or SCADA of new or existing installations. Using the MQTT Publisher functionality, these data can be integrated into IoT cloud applications.
- Access to Siemens PLC Data from OPC UA Applications
- Optimized for Siemens Integration
- Industry-proven Security
| Hardware | Processor | Altera Cyclone V SoC with Dual-core ARM Cortex-A9 |
| Connectors | 2 x IEEE 802.3 100BASE-TX/10BASE-T (independent interfaces) | |
| Status LEDs | PWR (power supply), RUN (running), ERR (error), SYS (configuration) | |
| Dimensions (H x W x D) | 100 mm x 22.5 mm x 105 mm | |
| Power Supply | 18 VDC ... 32 VDC, SELV/PELV supply mandatory Typically 200 mA, maximum 1 A at switch-on | |
| Operating Temperature, Horizontal DIN Rail Installation | -40 °C .. 50 °C (0 mm minimum distance) & -40 °C .. 55 °C (22.5 mm minimum distance) | |
| Operating Temperature, Vertical DIN Rail Installation | -40 °C .. 35 °C (0 mm minimum distance) & -40 °C .. 40 °C (22.5 mm minimum distance) | |
| Storage Temperature | -40 °C .. 85 °C | |
| Relative Humidity | 10 % ... 90 %, non-condensing | |
| Weight | About 0.2 kg | |
| Mounting | DIN Rail (35 mm) | |
| Protection Class | IP20 | |
| Software | Protocols | SIMATIC S7 , OPC UA (Server, 20,000 items in total), MQTT (Publisher, 1,000 topics) |
| Supported Controller | Siemens S7-300, S7-400, S7-1200, S7-1500 | |
| Supported Engineering Tools | SIMATIC STEP 7, TIA Portal V13, V13 SP1, V14, V14 SP1 | |
| Conformity | Emission | EC Directive 2004/108/EC “Electromagnetic Compatibility”, EN 55011, Group 1, Class A / EC Directive 2004/108/EC “Electromagnetic Compatibility”, EN 55022, Class A / EC Directive 2004/108/EC “Electromagnetic Compatibility”, EN 61000, Part 6-4 / FCC CFR45, Part 15 Section 15.107 and 15.109 (Class A), / VCCI Class A Information Technology Equipment 2002 |
| Immunity | EC Directive 2004/108/EC “Electromagnetic Compatibility”, EN 61000, Part 6-2 | |
| Certifications | CE, FCC, RoHS |
Description |
Order number |
| dataFEED uaGate SI | GAA-DX-145111 |
| uaGateSI_D_EN_190101_311 | Versie: 01/2019 |
| dataFEEDGateways_C_EN_100_190601 | Versie: EN_171_190601 |
| Quick Startup Guide - uaGateSI_QSG_V1.72_EN | Versie: EN-082020-1.72 |
