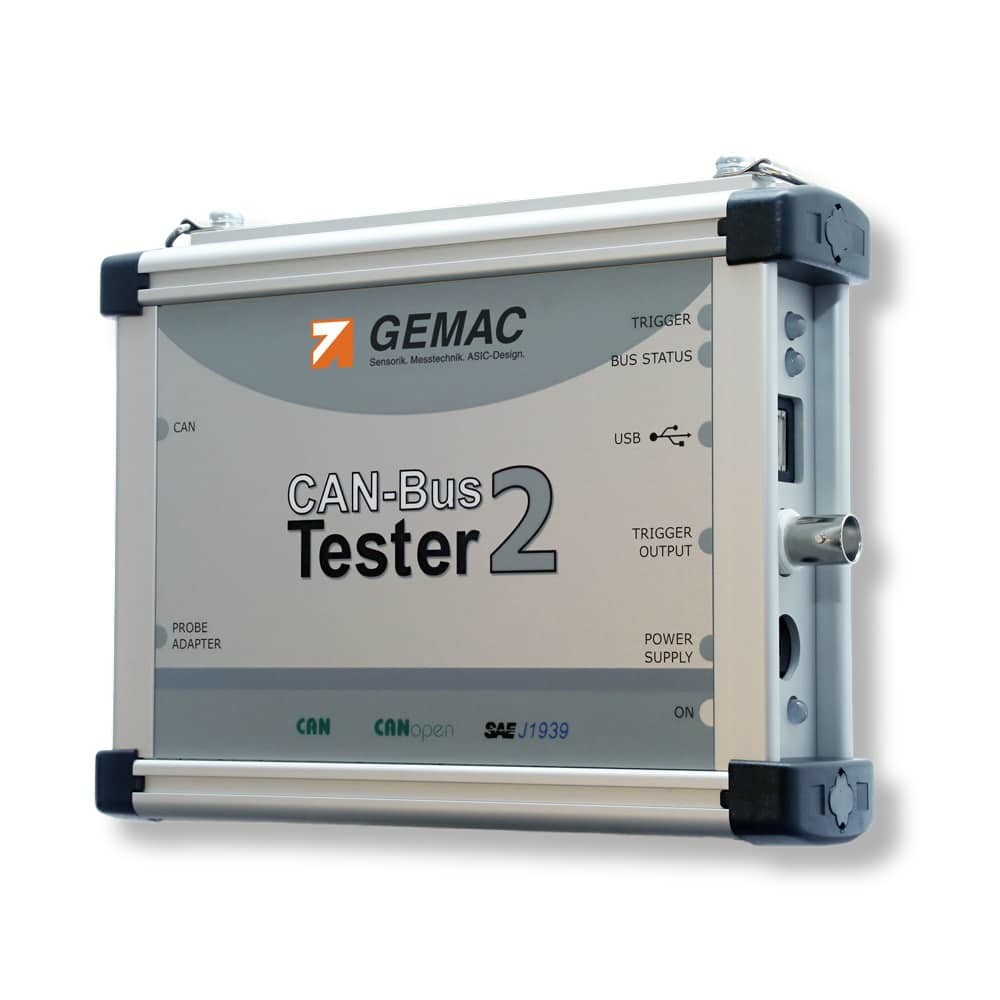

CAN-Bus Tester 2
CAN-Bus Tester 2

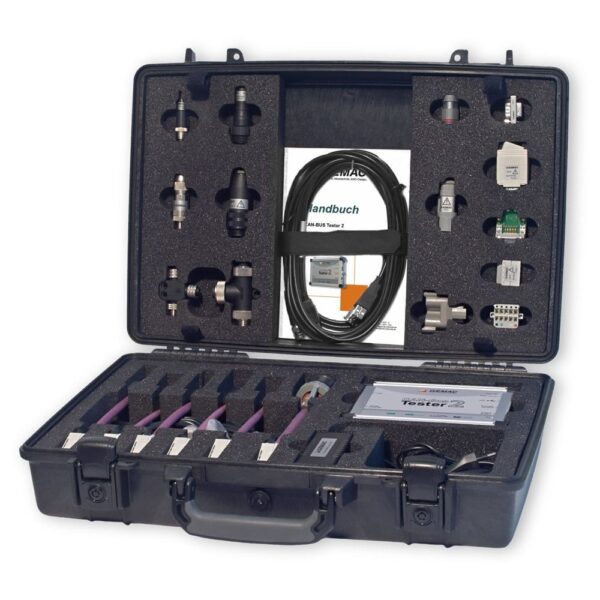

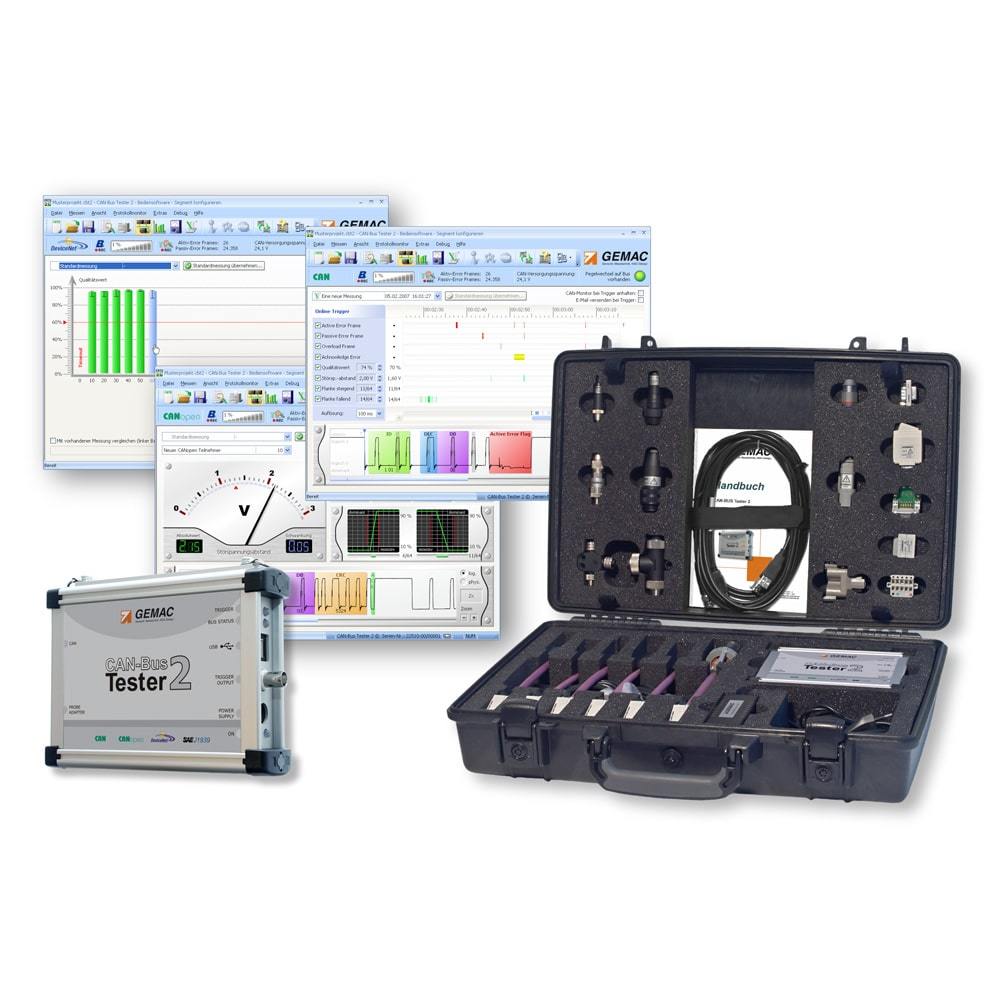

The CAN-Bus Tester 2 constitutes a universal measuring instrument for the commissioning, analysis, monitoring, troubleshooting and service/maintenance of CAN bus plants.
Typical problems which occur during the operation of CAN bus plants, such as node failures, faults in the communication or complete standstill of the plant, often have their origins in the physical bus characteristics.
The CAN-Bus Tester 2 provides an overview of the signal conditions on the bus, which helps you locate and rectify frequently occurring error causes without unnecessary delay.
You can already ensure a correct bus cabling and verify its transmission properties when setting up the plant.
You can also perform comparing measurements directly on the running plant over its lifetime and thus prevent down-times.
- Commissioning of CAN bus plants
- Wiring test, module check
- Service/maintenance of CAN bus plants
- Troubleshooting and analysis of the bus characteristics
- Development of CAN modules
- Final testing in the production
- Bus systems: CAN, CANopen, DeviceNet, SAE J1939 (ISOBUS, NMEA 2000)
- Baud rates (5 kbit/s ... 1 Mbit/s )
- Measuring of the signal conditions: General quality level (0 ... 100 %) - Disturbance-free voltage range, rising and falling edges
- Continuous monitoring: Bus status, bus traffic load, error frame counter
- User-friendly protocol monitor (CAN, CANopen, SAE J1939)
- Online trigger (real-time monitoring of the bus for logical and physical errors)
- Testing of cables (Short-circuits, interruptions, loop resistances, cable length)
| Use (CAN type) | CAN (ISO11898-2), CANopen (CiA301), DeviceNet (EN 50325-2), SAE J1939 | |
| Baud rates | All baud rates according to the particular CAN type - customized baud rates | |
| Quality level | Signal quality level (0 ... 100 %) | |
| Disturbance-free voltage range and edges | 0 ... 4 V, resolution 50 mV, edge steepness (in 1/64th of the bit width) | |
| Oscilloscope with message frame analysis | 64-fold sampling per bit, 10,240 sample points, zooming, adjustable trigger position, recording of complete message frames, decoding to used protocol | |
| Bus status Bus traffic detection | (display: dominant, recessive, not defined, bus traffic) | |
| Bus traffic load | Permanent display of the bus traffic load (0 ... 100 %), | |
| Protokollmonitor | ||
| CAN: | Reception of CAN message frames incl. filtering, Transmission of CAN message frames and sequences (message lists) | |
| CANopen: | Interpretation of all CAN messages according to the CANopen spec as SDOs, PDOs, NMT-, Heartbeat-, Emergency-, Sync- and Time stamp (CiA301, CiA302, CiA305, CiA401, CiA402, CiA404, CiA406, CiA408, CiA410, upgradeable) | |
| SAE J1939: | Interpretation of Source Address, “Parameter Group Number" (PGN) and "Suspect Parameter" (SPN) with name, value and unit including extensive filter functionality Additional decoding of the extensions used by ISOBUS and NMEA 2000 | |
| CAN connection | 2 x 9-pin D-Sub 9 connectors | |
| PC connection | Self-powered device to USB Specification 1.1, electrically isolated | |
| Trigger output for the oscilloscope | BNC socket, electrically isolated | |
| Housing | Aluminum plate housing, degree of protection: IP20 | |
| Temperature range | Operation: 5 ... 40 °C, storage: -20 ... 60 °C | |

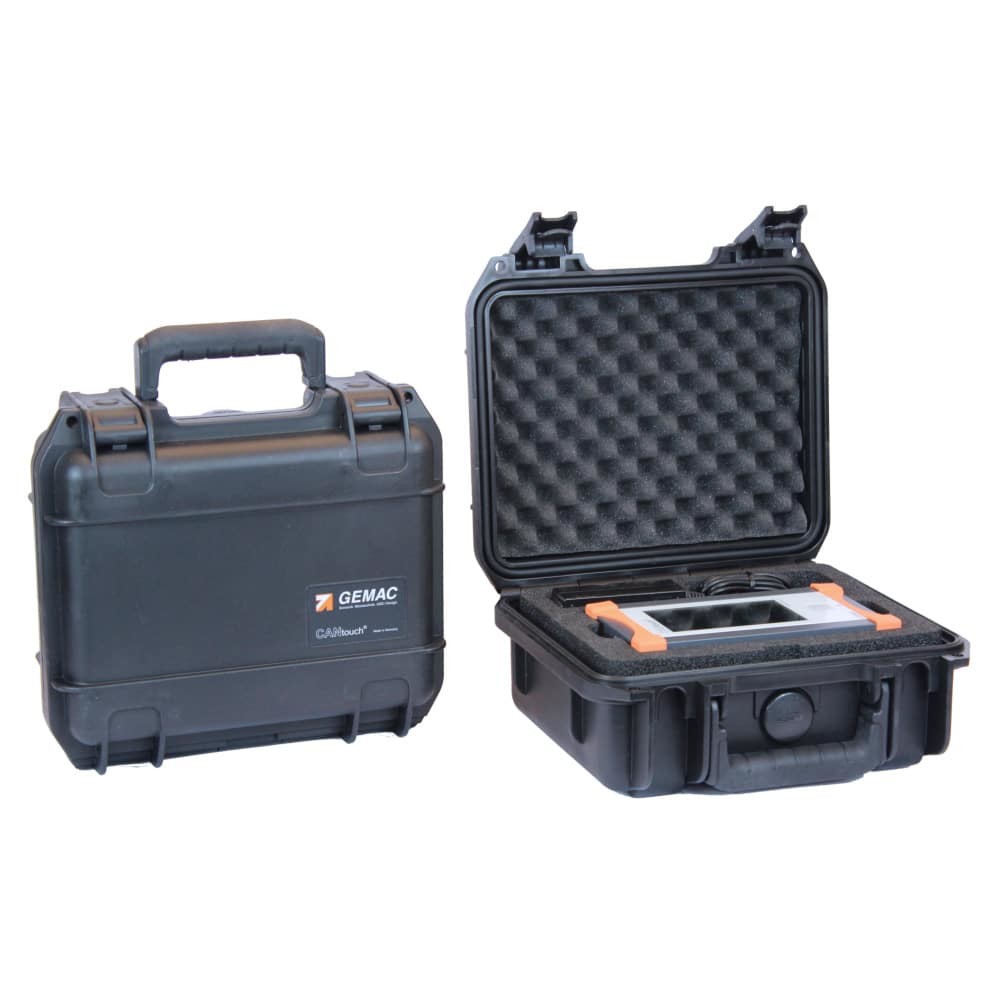

| Dimensions (Device / Case) | 170 mm x 134 mm x 40 mm / 504 mm x 354 mm x 119 mm | |
| Weight (Device / Case) | approx. 600 g / approx. 5000 g |
Description |
Order number |

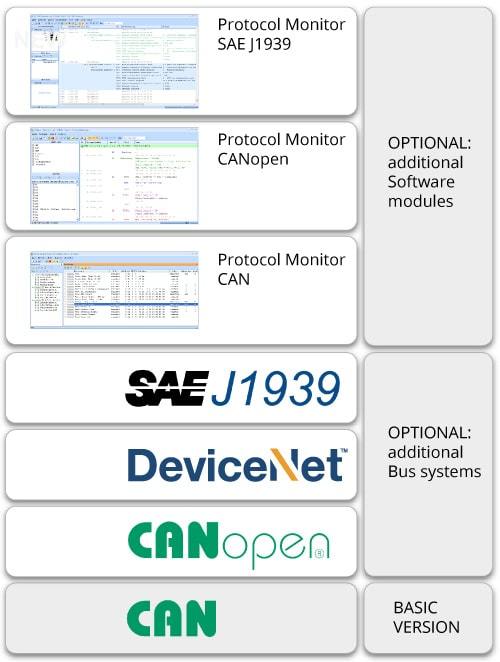

| CAN - Bus Tester 2, basic version, bus system: CAN | PR-22517-10 |
| License key for bus system CANopen | SW-22517-01 |
| License key for bus system DeviceNet | SW-22517-02 |
| License key for bus system SAE J1939 | SW-22517-03 |
| License key for Protocol Monitor CAN (transmit / receive) | SW-22517-10 |
| License key for Protocol Monitor CANopen (receive) | SW-22517-11 |
| License key for Protocol Monitor SAE J1939, ISOBUS, NMEA 2000 (receive) | SW-22517-12 |
