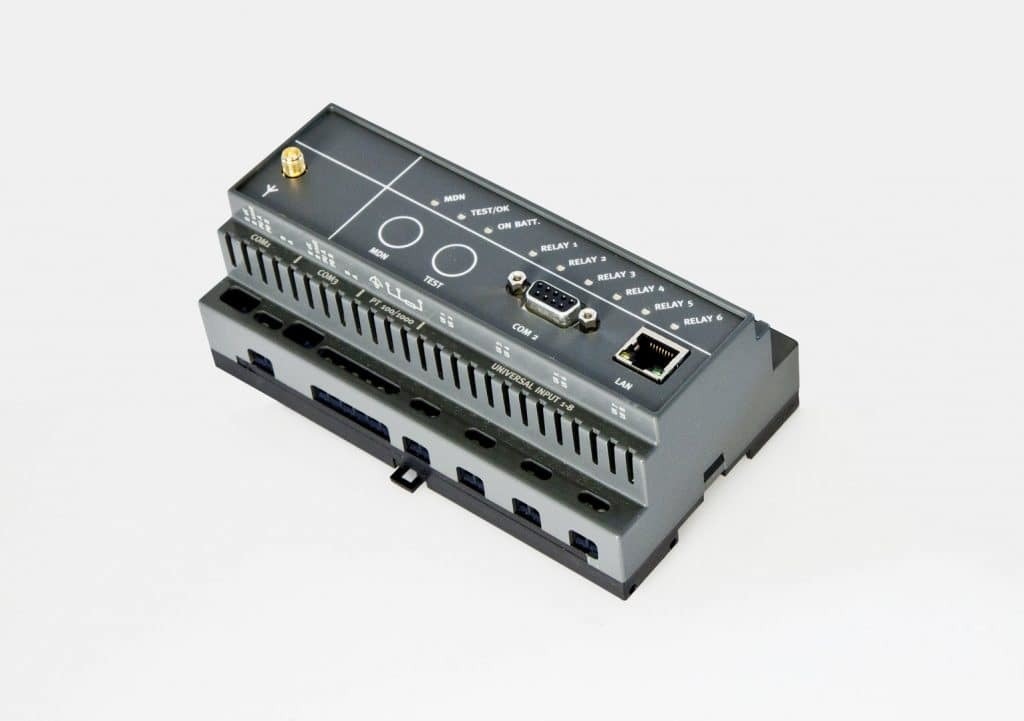

IoT Edge Gateway DATAEAGLE 7010

IoT Edge Gateway DATAEAGLE 7010

Sensor signals can now be reliably transmitted to the cloud by radio using DATAEAGLE 7000 series.

DATAEAGLE 7010 measures and controls sensors. Analog and digital sensors can be connected to the univerals inputs. Adding to the versatility of the DATAEAGLE 7010 series cloud we offer numerous options like RS232 or RS 485 interface as well as mA- and relais-outputs for remote control.

The gateway itself is designed for quick commissioning:
It can be programmed remotely through an online portal (Device Cloud), that has predefined parameter settings to transmit sensor values. The DATAEAGLE 7010er series contains an integrated battery which allows operating in case of the loss of AC power.

You can connect an intelligent display via the RS 232 interface of the DATAEAGLE 7010 and 7011.

The DATAEAGLE 7010 Extension adds cost-efficiently more univerals ports to the DATAEAGLE 7010. YOu can connect up to three extension modules.

  • 8 universal input ports (4-20 mA or 0-10 V or digital)
  • 2 serial ports RS485 and RS 232 for a digital sensor
  • 1 temperature sensor inout for PT100/1000
  • 2 analog output port
  • 6 Relais output
  • Integrated eSIM-card with worldwide roaming functionality
Voltage supply12 -30 V DC
Connection voltage supplyTerminal clamps
Power consumptionTyp. 1W, max. 3W
FixingDIN rail mounting
Protection classIP 20
Temperature range-20…+60 °C
Weight320 gr
Width157 mm
Height86 mm
Depth64 mm
FrequencyGSM/GPRS Quad-Band
SImintegrated SIM-Chip
Anteanna ConnectionSMA - 50 Ohm
Inputs8 x analog or digital - 0... 20 mA, 4... 20 mA 0... 2 V, 0... 10 V, PWM, Frequency, Digital Day- / Interval Counter
External Temperature Sensor1 PT1000/1000
Modbus1 x RS485 (switchable Master/ Slave) Modi: RTU, ASCII, 64 in-, 64 outputchannels
Serial1 x RS232 for connection of digital sensor, Modi: ASCII, 64 in-, 64 output channels
Outputs6 x relais (2 groups)
2 x Analog output (no galvanic isolation)
