eCon 3000 Full Gigabit Ethernet Basic with optional Fiber Optic
eCon 3000 Full Gigabit Ethernet Basic with optional Fiber Optic

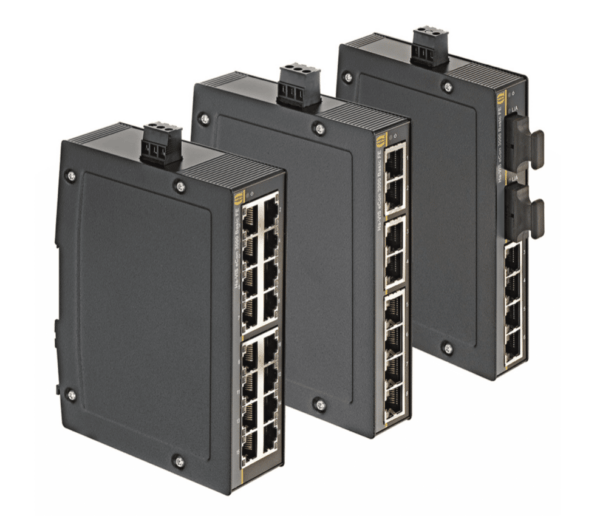

The eCon 3000 Full Gigabit family of unmanaged Ethernet switches is equipped with up to 7 gigabit Ethernet ports and allows for cost-efficient and quick expansion and/or reconstruction of network infrastructures with high bandwidth requirements.
In this, all switches support extra-long Ethernet frames (jumbo frames).
The slender design of the switches enables an extremely high packing density on the DIN rail.
The selection includes various combinations of variants with RJ45 and bre optic cables.
Automatic detection of the transmission rate (auto-negotiation) and of the wiring of the twisted pair data cable (auto-polarity and auto-MDI(X)) allow for simple plug and play.
All variants are available with the temperature ranges “Industrial” and “Commercial”.
- Unmanaged Plug and Play Ethernet switches for DIN rail assembly in control cabinets
- 2 to 7 Ethernet ports RJ45 and FOC
- Full Gigabit Ethernet non-blocking switch architecture according to IEEE 802.3
- Support of jumbo frames (10 kB)
- Variants with industrial temperature range of -40°C ... +70°C
- Wide range power supply 24/48 VDC
- Surge protection and reverse polarity protection
- Minimum energy consumption due to energy-e cient Ethernet
- Optimised DIN rail bracket
Description |
Order number |
| Gbit switches | |
| eCon 3050GBT-A - 5 RJ45 - Temp. -40 + 70°C -1Gbit | 24034050000 |
| eCon 3050GB-A - 5 RJ45 - Temp. - 0 +55°C - 1Gbit | 24034050010 |
| eCon 3060GBT-A - 6 RJ45 - Temp. -40 + 70°C -1Gbit | 24034060000 |
| eCon 3060GB-A - 6 RJ45 - Temp. - 0 +55°C - 1Gbit | 24034060010 |
| eCon 3070GBT-A - 7 RJ45 - Temp. -40 + 70°C -1Gbit | 24034070000 |
| eCon 3070GB-A - 7 RJ45 - Temp. - 0 +55°C - 1Gbit | 24034070010 |
| Gbit & Fiber Optic (FO) switches | |
| eCon 3011GBT-AD - 1 RJ45 - 1 FO MM(SC) - Temp. -40 +70°C - 1Gbit | 24034011100 |
| eCon 3011GB-AD - 1 RJ45 - 1 FO MM(SC) - Temp. - 0 +55°C - 1Gbit | 24034011110 |
| eCon 3011GBT-AF - 1 RJ45 - 1 FO SM(SC) - Temp. -40 +70°C - 1Gbit | 24034011200 |
| eCon 3011GB-AF - 1 RJ45 - 1 FO SM(SC) - Temp. - 0 +55°C - 1Gbit | 24034011210 |
| eCon 3011GBT-AC - 1 RJ45 - 1 FO SFP - Temp. -40 +70°C - 1Gbit | 24034011300 |
| eCon 3011GB-AC - 1 RJ45 - 1 FO SFP - Temp. - 0 +55°C - 1Gbit | 24034011310 |
| eCon 3041GBT-AD - 4 RJ45 - 1 FO MM(SC) - Temp. -40 +70°C - 1Gbit | 24034041100 |
| eCon 3041GB-AD - 4 RJ45 - 1 FO MM(SC) - Temp. - 0 +55°C - 1Gbit | 24034041110 |
| eCon 3041GBT-AF - 4 RJ45 - 1 FO SM(SC) - Temp. -40 +70°C - 1Gbit | 24034041200 |
| eCon 3041GB-AF - 4 RJ45 - 1 FO SM(SC) - Temp. - 0 +55°C - 1Gbit | 24034041210 |
| eCon 3042GBT-AD - 4 RJ45 - 2 FO MM(SC) - Temp. -40 +70°C - 1Gbit | 24034042100 |
| eCon 3042GB-AD - 4 RJ45 - 2 FO MM(SC) - Temp. - 0 +55°C - 1Gbit | 24034042110 |
| eCon 3042GBT-AF - 4 RJ45 - 2 FO SM(SC) - Temp. -40 +70°C - 1Gbit | 24034042200 |
| eCon 3042GB-AF - 4 RJ45 - 2 FO SM(SC) - Temp. - 0 +55°C - 1Gbit | 24034042210 |
| eCon 3043GBT-AC - 4 RJ45 - 3 FO SFP - Temp. -40 +70°C - 1Gbit | 24034043300 |
| eCon 3043GB-AC - 4 RJ45 - 3 FO SFP - Temp. - 0 +55°C - 1Gbit | 24034043310 |
| eCon 3051GBT-AD - 5 RJ45 - 1 FO MM(SC) - Temp. -40 +70°C - 1Gbit | 24034051100 |
| eCon 3051GB-AD - 5 RJ45 - 1 FO MM(SC) - Temp. - 0 +55°C - 1Gbit | 24034051110 |
| eCon 3051GBT-AF - 5 RJ45 - 1 FO SM(SC) - Temp. -40 +70°C - 1Gbit | 24034051200 |
| eCon 3051GB-AF - 5 RJ45 - 1 FO SM(SC) - Temp. - 0 +55°C - 1Gbit | 24034051210 |
| eCon 3052GBT-AC - 5 RJ45 - 2 FO SFP - Temp. -40 +70°C - 1Gbit | 24034052300 |
| eCon 3052GB-AC - 5 RJ45 - 2 FO SFP - Temp. - 0 +55°C - 1Gbit | 24034052310 |
| eCon 3061GBT-AC - 6 RJ45 - 1 FO SFP - Temp. -40 +70°C - 1Gbit | 24034061300 |
| eCon 3061GB-AC - 6 RJ45 - 1 FO SFP - Temp. - 0 +55°C - 1Gbit | 24034061310 |
