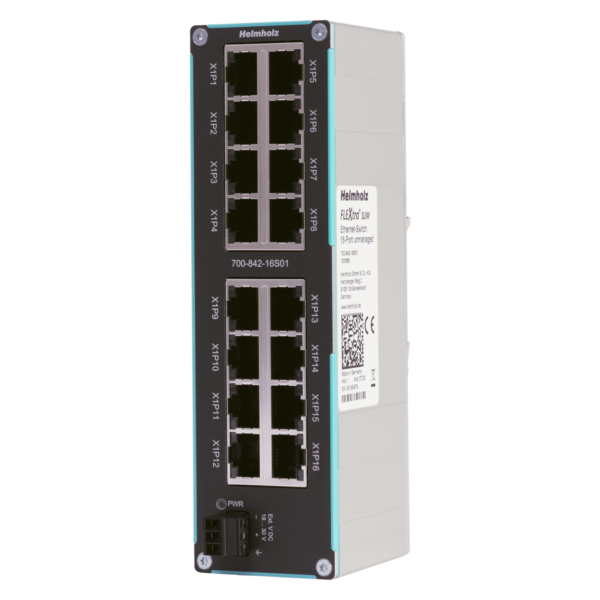

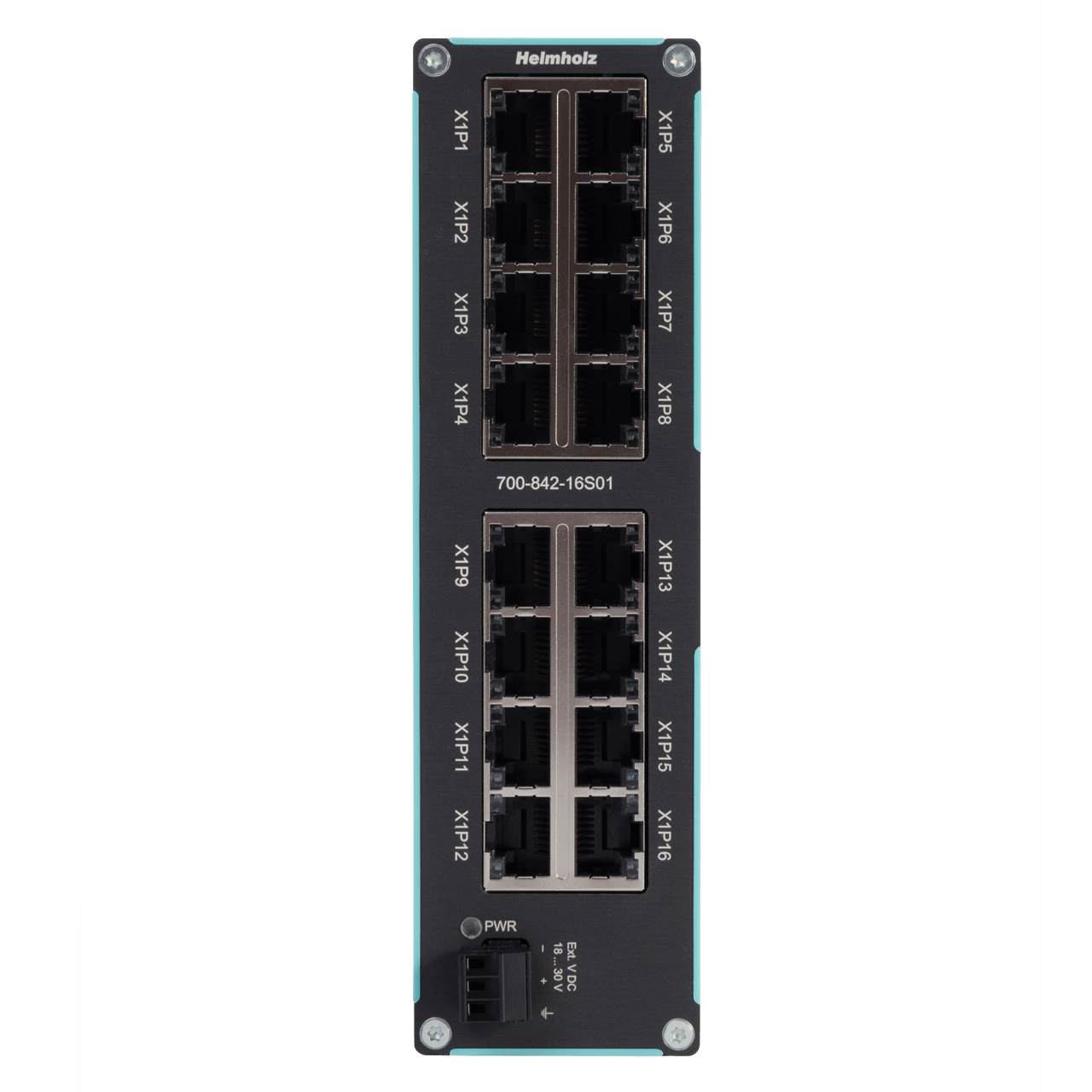

FLEXtra SLIM Unmanaged Ethernet Switch 16-ports
With its very compact design the unmanaged Ethernet Switches can be used for a wide range of industrial applications and convinces with its light but robust design.
FLEXtra SLIM Unmanaged Ethernet Switch 16-ports
€281,86
Quickly available!
The switch is suitable for DIN rail mounting and is very easy to integrate into your network. Once plugged in, it is immediately ready for operation thanks to the simple plug & play installation. No configuration is necessary.
The 16-port unmanaged Ethernet switch is suitable for PROFINET networks. The LLPD (neighbourhood detection) and PTCP (time synchronisation) functions are handled correctly with the switch in accordance with the PROFINET standard. The unmanaged Ethernet switch therefore complies with PROFINET Conformance Class A. Connect up to 16 Ethernet devices at 10 or 100 Mbit/s.
- Store-and-Forward architecture
- 10/100Base-T/TX, Full-/Half-Duplex (Autonegotiation)
- HP Auto MDI/MDI-X & IEEE 802.3u Auto crossover support
- CoS according to IEEE 802.1Q
- QoS-Priority Queues: 2 per port
- LLDP & PTCP Delay-Traffic blocking (for PROFINET networks)
- 2K MAC address lookup table
- 1024K bits memory for frame buffering
- IEEE 802.3x Full duplex flow control
- Max. forwarding packet length 1552 bytes
| General information | ||
| Scope of delivery | Ethernet 16-port switch with power supply plug, short manual | |
| Dimensions (DxWxH) | 55 x 45 x 157 mm | |
| Weight | Approx. 320g | |
| LAN interface: | ||
| Number | 16 | |
| Type | 10/100Base-T/TX, Full-/Half-Duplex (Autonegotiation), Auto MDI/MDI-X, IEEE Autocrossover | |
| Connection | RJ45 | |
| Transmission rate | 10/100 Mbps | |
| Status indicator | 1 LEDs power display, 32 LEDs Ethernet status | |
| Voltage supply | 24 V DC (18...30 V DC) | |
| Current draw | Max. 200 mA with 24 V DC | |
| Ambient conditions: | ||
| Ambient temperature | 0 °C … +60 °C | |
| Transport and storage temperature | -40 °C … +85 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Protection rating | IP20 | |
| Certifications | CE | |
| CE: | ||
| RoHS | Yes | |
| REACH | Yes |
Description |
Order number |
| Ethernet-Switch, unmanaged, 16-port | 700-842-16S01 |
| Industrial Ethernet & PROFINET Switches | Versie: 10-2023 |
| 700-842-16S01-Manual-EN-V1.pdf | Versie: 1 |
| VSCF_700-842-16S01_V00-00.STEP | Versie: |
