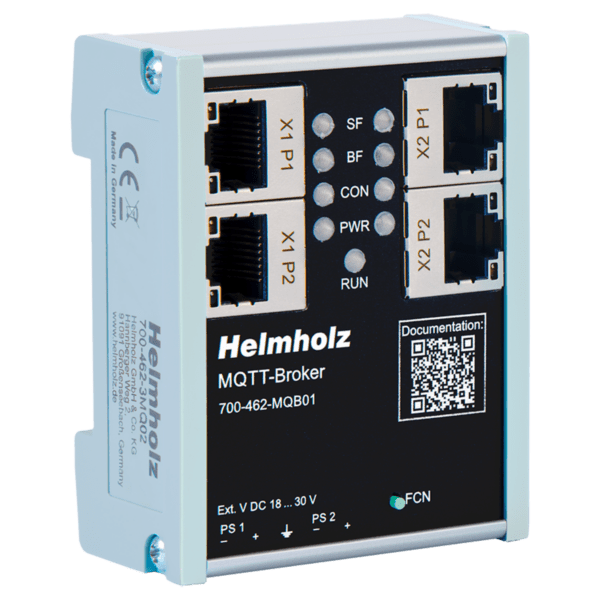

MQTT-Broker
MQTT-Broker
€407,00
Quickly available!
The MQTT broker enables MQTT messages to be saved and forwarded. With its extremely small design for rail mounting, it fits into even the smallest control cabinet.
As a fully-fledged MQTT broker, it enables the networking of a large number of MQTT participants within a machine, in a factory network or for data exchange in the cloud.
- Very compact design for the DIN rail
- Switch or firewall operating mode (zone transition)
- Full MQTT V3.1.1 & V5 feature set
- User management
- ACL management
- TLS Encryption
- Configuration via web interface
- Export/import of the configuration in editable file format
| General information | ||
| Dimensions (DxWxH) | 32,5 x 58,5 x 76 mm | |
| Weight | WeightApprox. 135 g | |
| Ethernet interface(X1/X2) | ||
| Number / Connection | 4 / integrated Switch | |
| Connection | RJ45 | |
| Transmission rate | 10/100 Mbit/s | |
| Protocols | MQTT V3.1.1 & V5, HTTPS | |
| Features | TLS Encryption, User management, ACL management | |
| Status indication | ||
| Functional status | 9 LEDs | |
| Ethernet status | 8 LEDs, two-colored | |
| Power supply | ||
| Voltage supply | 2x 24 V DC, 18 ... 30 V DC, redundant | |
| Current draw | max. 140 mA at DC 24 V | |
| Power dissipation | max. 3,4 W | |
| Ambient conditions | ||
| Ambient temperature | 0 °C ... +60°C | |
| Transport and storage temperature | -40 °C … +85 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Protection rating | IP20 | |
| Pollution degree | 2 | |
| Approvals | CE |
Description |
Order number |
| MQTT-Broker | 700-462-MQB01 |
| MQTT-broker, manual | Versie: V1 |
