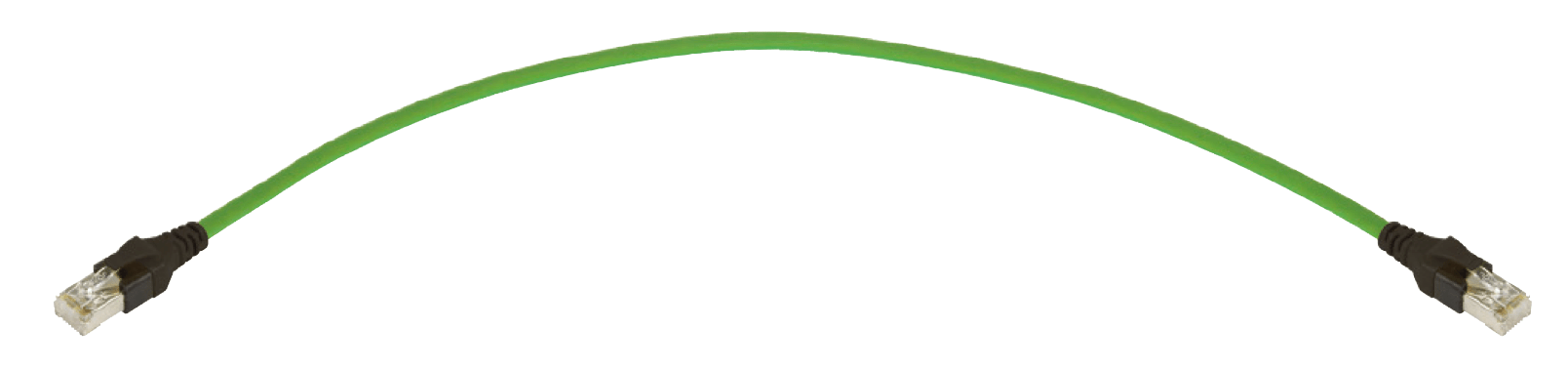

PROFINET Patchcable - Conformance Class B - CAT6 - Type B
PROFINET Patchcable - Conformance Class B - CAT6 - Type B - Image 2

PROFINET Patchcable – Conformance Class B – CAT6 – Type B

From €10,83

In industrial networks, reliability is essential. PROFINET patch cables form the backbone of your automation system, ensuring a stable, fast, and secure connection between your devices. At Helmholz Benelux, we offer high-quality PROFINET patch cables that meet the strictest industrial standards.

Why Choose PROFINET Patch Cables from Helmholz?

Excellent Signal Quality: Our patch cables are optimized for high data speeds and minimal signal loss.
Industrial Durability: Options with resistance to oil, vibrations, and extreme temperatures.
Easy Installation: Flexible and equipped with pre-assembled RJ45 and M12 connectors.
Compatibility: Complies with PROFINET guidelines for reliable operation within your network.

PROFINET Cable Types

  • PROFINET Type A: Designed for fixed installations, offering high performance and durability.
  • PROFINET Type B: Suitable for flexible installations with improved resistance to bending and movement.
  • PROFINET Type C: Ultra-flexible for continuous motion applications, ideal for robotic and drag chain use.
Request more information
  • RJ45 overmoulded and locking lever protection on both sides
  • 8 pole, 1:1, TIA/EIA-568-B
  • PROFINET compliant
  • Suitable for PROFINET Conformance Class B applications
  • Type B - Flexibele
  • Sheath material PVC
  • Reliable data transmission due to high EMC-immunity
Product Category:Ethernet Cables / PROFINET Cables
RoHSRoHS Compliant
Type:Cat 6
Connector End A:RJ45
Connector End A Pin Count:8 Position
Connector End B:RJ45
Connector End B Pin Count:8 Position
Color:Green
Number of Conductors:4 x 2
Cable type:S/FTP AWG 26/7, Cat 6A
Bending radius:Repeated bending ≥ 55 mm Single bending ≥ 30 mm
Gender:Male / Male
Jacket Material:PVC
Transmission performance:Category 6, Class E up to 250 MHz according ISO/IEC 11801 and EN 50173­1
Transmission rate:10/100 Mbit/s and 1 Gbit/s
Operating temperature:-20 ... +70 °C
Flame retardant:acc IEC 60332­-1-­2

Description

Order number
0,3m700-776-6003
0,5m700-776-6005
0,6m700-776-6006
1m700-776-6010
1,5m700-776-6015
2m700-776-6020
3m700-776-6030
5m700-776-6050
10m700-776-6100
