The Hilscher EU5C-SWD series comprises advanced gateways designed to seamlessly integrate SmartWire-DT networks with various industrial Ethernet protocols, including PROFINET, POWERLINK, EtherCAT, and Sercos. These gateways facilitate efficient communication between SmartWire-DT devices and higher-level control systems, enhancing data exchange and operational efficiency across diverse automation environments.

Each gateway variant connects SmartWire-DT networks to a specific industrial Ethernet protocol:

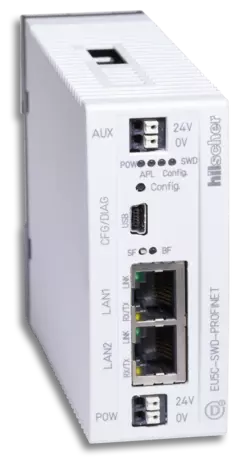

• EU5C-SWD-PROFINET: Interfaces with PROFINET controllers, enabling seamless data exchange and integration.
  The cyclic process data is exchanged and converted transparently between both networks. 1000 bytes of I/O data can be exchanged with up to 99 SmartWire-DT stations.
• EU5C-SWD-POWERLINK: Connects to POWERLINK networks, facilitating real-time data communication.
  The device thereby maps the process data of all SmartWire-DT stations modularly to I/O objects. 1000 bytes input and output process data can be mapped via TxPDOs and RxPDOs and will be transferred transparently between both network protocols.
• EU5C-SWD-ETHERCAT: Links with EtherCAT systems, ensuring high-speed data transfer and synchronization.
  Each SmartWire-DT station represents a single EtherCAT slave and is mapped with its process data modularly in slots. The device can transmit, exchange, and convert 1000 bytes of I/O data transparently between both networks. All 99 SmartWire-DT stations are supported.
• EU5C-SWD-SERCOS: Integrates with Sercos automation buses, providing deterministic communication for motion control applications.
  As SERCOS slave, the device maps each SmartWire-DT station and its process data modularly in separate IO Function Groups. 252 bytes of I/O process data of up to 99 SWD stations stations can be transmitted, exchanged, and converted transparently between both networks.

These gateways enable transparent data exchange between SmartWire-DT devices and the chosen Ethernet protocol, ensuring smooth interoperability and streamlined system integration. Engineered for industrial environments, the EU5C-SWD series features a compact form factor suitable for control cabinet installation, offering reliable performance under various operating conditions. With user-friendly interfaces and configuration tools, setup time and complexity are significantly reduced, allowing for quick deployment and commissioning.

Applications

The EU5C-SWD gateways are ideal for industries seeking to enhance their automation systems’ flexibility and scalability. By bridging SmartWire-DT networks with popular industrial Ethernet protocols, these gateways support efficient communication across diverse devices and control systems, making them suitable for applications in manufacturing, process automation, and motion control.

Incorporating the Hilscher EU5C-SWD series into your automation infrastructure ensures seamless integration, improved data exchange, and optimized operational performance across various industrial applications.
