Panel antenna for NETLink WLAN (antenna cable required)

Panel antenna for NETLink WLAN (antenna cable required)

To optimize the reception performance of WiFi devices, we offer a selection of different antennas. Depending on the antenna design, appropriate connection cables can be purchased.
When planning a wireless link, it is necessary to consider both with a mobile and stationary installation that the range may be influenced more or less by obstacles and the surrounding buildings. Due to the maximum transmission power of 100 mW in the 2.4 GHz range, wireless links of 10 to 30 meters are possible in buildings. Outdoors, 100 to 300 meters are considered realistic with line-of-sight connections.
With a directional panel antenna, wireless links exceeding 300 meters are also possible under optimum conditions.

Ideal for use in directional transmission and reception indoors and outdoors.
The range and WLAN performance is significantly improved by this design. The corresponding fixtures for wall mounting are included.

  • Gain 8 dBi
Protection ratingIP 67
Frequency range2400 – 2483 MHz
Polarizationvertical
Impedance50 Ω
Connector typeN-Type (f)

Description

Order number

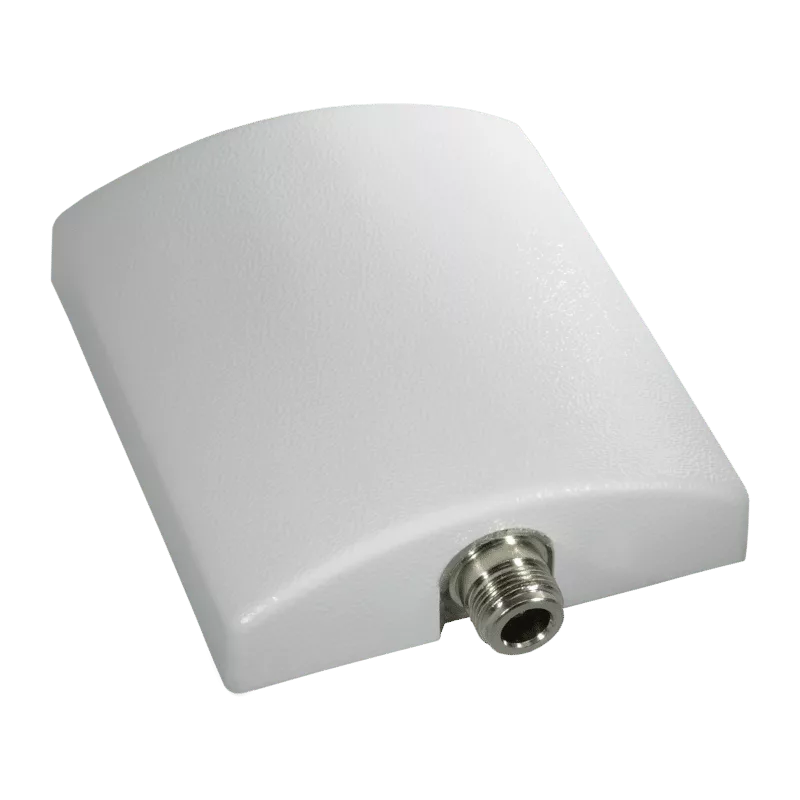

Panel antenna, 8 dBi (antenna cable required)700-889-ANT03

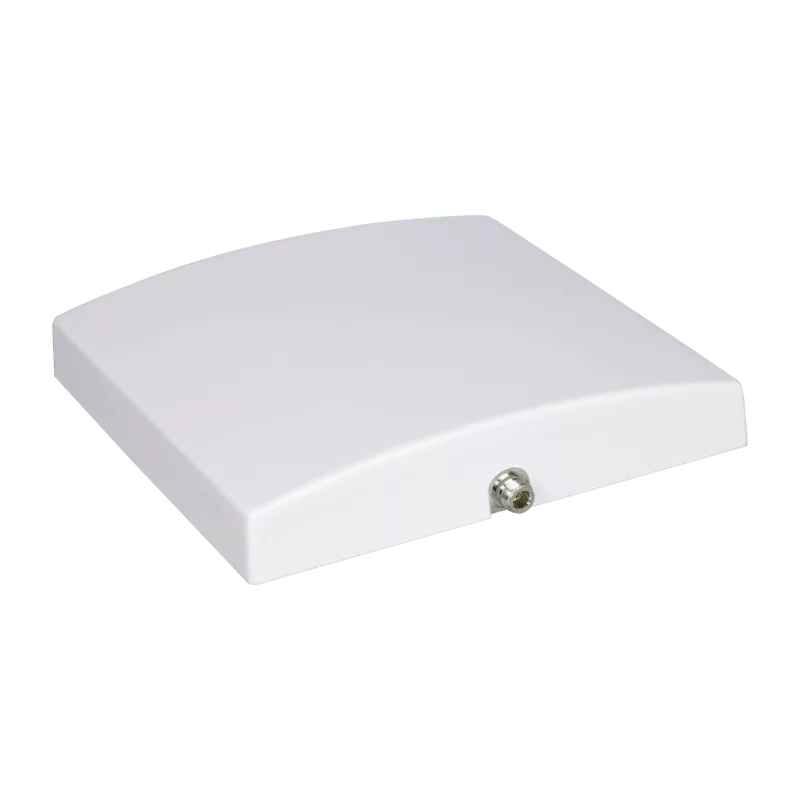

Panel antenna, 18 dBi (antenna cable required)700-889-ANT04
