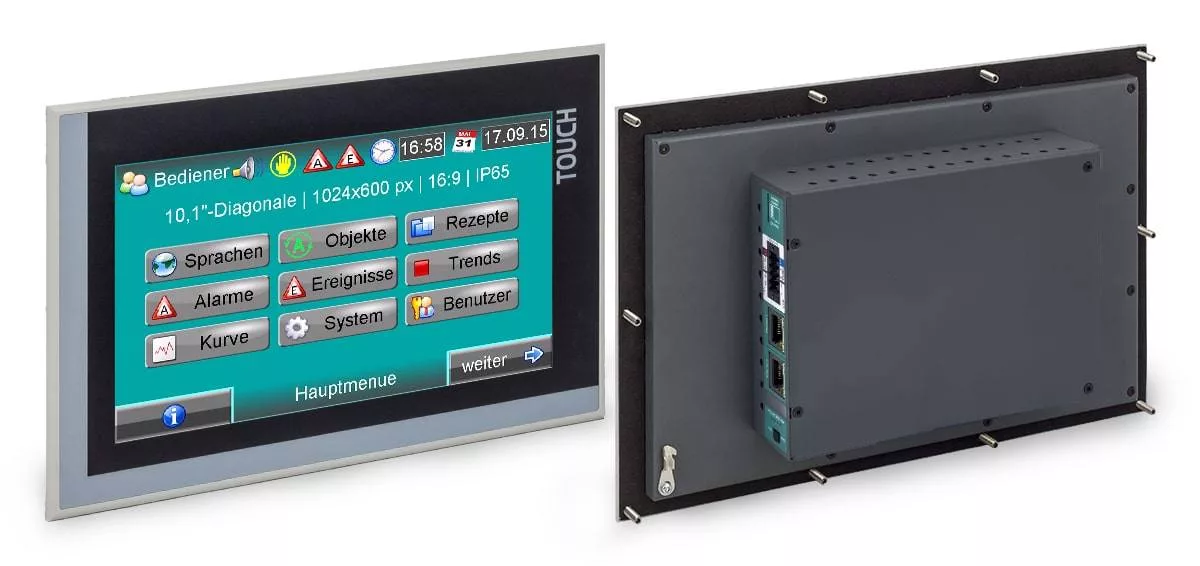

10,1″ – S7-Panel-PLC – flat / no periphery slots onboard

10,1″ – S7-Panel-PLC – flat / no periphery slots onboard

A more brilliant display with 1024x600pixel, a fast CPU and much memory. This features provide more power to the PC1010T to be used in medium and large automation projects.

Do not forget: all the CPU-T -interfaces with the 2port-Ethernet plugs and the optional Profinet-IO Controller, all this functions are realized in a 47mm deep device.

Now with 2 versions; one with Profinet, one without.

Both with VNC-server included.

Once more the INSEVIS- engineers show their German engineering.

  • Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
  • IP-protection class: front panel IP65 and rear side IP41
  • Operating temperature: -20°C ... +60°C (without condensation)
  • Optional: PROFINET IO Controller
10“ TFT display (1024x600 pixel) - resistive touch
RS232 with - free ASCII protocol
RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485
2x Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP
CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN
Micro-SD-slot - for SD-cards up to 8GByte
Status LEDs for Power, Battery, Error, Run
Profinet IO Controller in PC1010T-PNC-02
