S7 Panels & PLCs

S7-compatible PLCs, Panel-PLCs and HMIs

Helmholz supplies INSEVIS S7 controllers that you program with SIMATIC Manager or TIA Portal: Panel-PLCs from 3.5 to 15.6 inch, Compact PLCs for the DIN rail, Panel-HMIs and I/O. Your S7-300 knowledge, function blocks and tools carry straight over.

• Command-compatible with the S7-300 CPU 315-2 PN/DP; program in STL, LAD, FBD, SCL or S7-Graph
• Ethernet, Modbus TCP/RTU, CANopen, RS232 and RS485 on board; PROFINET IO controller or PROFIBUS DP as an option
• Visualization without runtime licences or tag limits, with free configuration and service software
• Metal front with IP65, operating temperature −20 to +60 °C for most types
• Designed and made in Germany, each controller 100% tested in its ordered configuration

Go straight to

• Panel-PLCs
• Compact PLCs
• Panel-HMIs
• I/O modules
• Software
• All products

Selection

Panel and PLC in one, or separate

A Panel-PLC combines touch panel and S7 CPU in one device with one IP address, ideal where the controller sits in the cabinet door. Put the CPU on the DIN rail as a Compact PLC and add a Panel-HMI when the panel and the I/O are in different places, or when you add a panel to an existing Siemens S7 controller. All three can be extended with I/O modules on board and in decentral head stations.

S7 Panel-PLCs

Touch panel and S7 CPU in one housing, from 3.5 to 15.6 inch, with a metal front (IP65) and a depth from 25 mm. The 4.3 to 15.6 inch types have the CPU-T with two Ethernet ports, VNC server and an optional PROFINET IO controller; the 3.5 and 5.7 inch types have the CPU-V or CPU-P with an optional PROFIBUS DP master or slave.

Choose the I/O on the rear

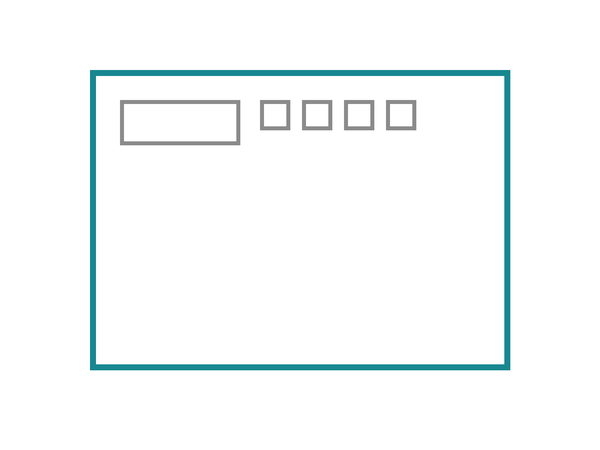

No I/O on board

Flattest version. Connect I/O via PROFINET, PROFIBUS, CANopen or Modbus.

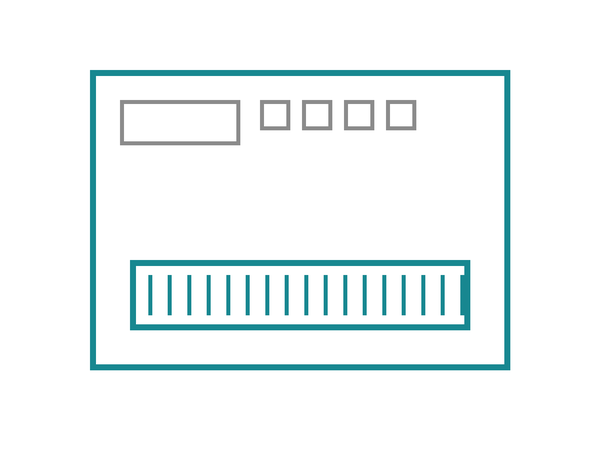

Fixed I/O on board

24 digital, 6 analog channels, counters and PWM, configured by software. For PROFINET, choose the slot version with PNC, such as the PC717T-PNC-02.

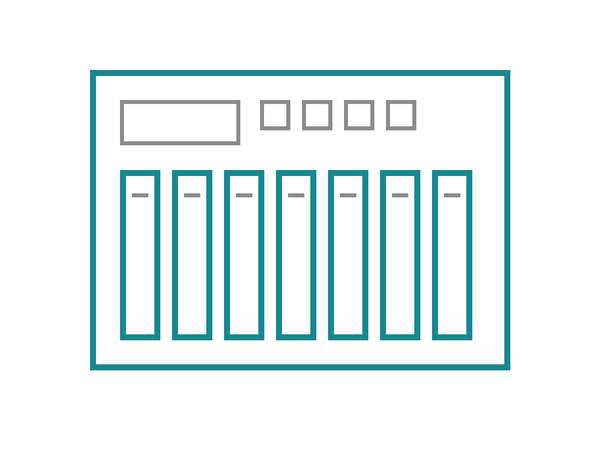

Slots for I/O modules

3 or 7 slots for INSEVIS I/O modules, one slot less with PROFINET. INSEVIS mounts the modules before delivery.

3.5-inch Panel-PLC

320 × 240 pixels, front 132 × 96 mm, CPU-V. Each type is also available with a PROFIBUS DP master (-DPM-03) or slave (-DPS-03). PC350 and PC351 are also available with the CPU-P (PC350P, PC351P) for more visualization memory.

• No I/O · PC350V-0-03
• Fixed I/O · PC351V-0-03
• 3 slots · PC353V-0-03

4.3-inch Panel-PLC

480 × 272 pixels, front 140 × 100 mm, CPU-T. The PC430T is 25 mm deep. The PNC types add the PROFINET IO controller.

• No I/O · PC430T-0-03
• No I/O, PROFINET · PC430T-PNC-02
• Fixed I/O · PC431T-0-02
• 3 slots · PC433T-0-02
• 2 slots, PROFINET · PC433T-PNC-02

5.7-inch Panel-PLC

320 × 240 pixels, front 182 × 140 mm, CPU-V; a successor size for 5.7-inch operator panels. Each type is also available with a PROFIBUS DP master (-DPM-03) or slave (-DPS-03). Also available with the CPU-P (PC570P, PC577P).

• No I/O · PC570V-0-03
• 7 slots · PC577V-0-03

7-inch Panel-PLC

800 × 480 pixels, front 222 × 147 mm, CPU-T. All 7-inch types share the same cut-out. The PNC types add the PROFINET IO controller.

• No I/O · PC710T-0-03
• No I/O, PROFINET · PC710T-PNC-02
• Fixed I/O · PC711T-0-02
• 7 slots · PC717T-0-02
• 6 slots, PROFINET · PC717T-PNC-02

10.1-inch Panel-PLC

1024 × 600 pixels, front 286 × 188 mm, CPU-T. The PNC types add the PROFINET IO controller.

• No I/O · PC1010T-0-03
• No I/O, PROFINET · PC1010T-PNC-02
• Fixed I/O · PC1011T-0-02
• 7 slots · PC1017T-0-02
• 6 slots, PROFINET · PC1017T-PNC-02

15.6-inch Panel-PLC

1366 × 768 pixels, front 410 × 250 mm, CPU-T, operating temperature 0 to +50 °C. The PNC types add the PROFINET IO controller.

• No I/O · PC1560T-0-03
• No I/O, PROFINET · PC1560T-PNC-02
• Fixed I/O · PC1561T-0-02
• 7 slots · PC1567T-0-02
• 6 slots, PROFINET · PC1567T-PNC-02

S7 Compact PLCs

S7 CPU for the 35 mm DIN rail in a metal housing, from 50 to 240 mm wide, operating temperature −20 to +60 °C. Choose the width by the number of I/O slots on board; every type can also run as a protocol converter between Ethernet, Modbus, CANopen, PROFIBUS or PROFINET and serial devices.

The V types have the CPU-V with an optional PROFIBUS DP master (-DPM-03) or slave (-DPS-03). The T types have the CPU-T with two Ethernet ports and a web server; the PNC types add the PROFINET IO controller and use one slot.

CC300 and CC301, under 50 mm

For a data logger, protocol converter or controller with decentral I/O. The CC301T has fixed I/O on board: 24 digital and 6 analog channels.

• CPU-V · CC300V-0-03
• CPU-T · CC300T-0-03
• CPU-T, PROFINET · CC300T-PNC-02
• Fixed I/O · CC301T-0-02

CC303, 3 slots, 82 mm

Up to 48 digital or 24 analog inputs on board. The Retrofit Cube is a CC303V supplied with a PM-DI16 and a PM-MIO84: 24 digital and 4 analog I/O for the typical S7-300 retrofit.

• CPU-V · CC303V-0-03
• CPU-T · CC303T-0-02
• CPU-T, PROFINET · CC303T-PNC-02
• Retrofit Cube · CC303V-AKT

CC307, 7 slots, 161 mm

Up to 112 digital or 56 analog inputs on board, with room to spare for later extensions.

• CPU-V · CC307V-0-03
• CPU-T · CC307T-0-02
• CPU-T, PROFINET · CC307T-PNC-02

CC311, 11 slots, 240 mm

Up to 176 digital or 88 analog inputs on board, for machines with a large I/O count in one place.

• CPU-V · CC311V-0-03
• CPU-T · CC311T-0-02
• CPU-T, PROFINET · CC311T-PNC-02

S7 Panel-HMIs

Touch panels that connect via Ethernet (S7 communication, RFC 1006) to an INSEVIS PLC or to an existing Siemens S7 controller. Set the partner IP address and TSAP and the connection is ready; up to five panels work with one INSEVIS PLC.

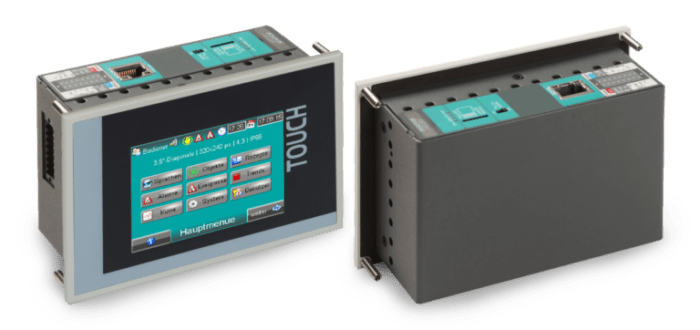

3.5 and 5.7-inch Panel-HMI

320 × 240 pixels on both sizes, so one visualization runs on either. CPU-V, or CPU-P with more visualization memory.

• 3.5 inch, CPU-V · HMI 350V-03
• 3.5 inch, CPU-P · HMI 350P-03
• 5.7 inch, CPU-V · HMI 570V-03
• 5.7 inch, CPU-P · HMI 570P-03

Contact

4.3-inch Panel-HMI

480 × 272 pixels, 25 mm deep, CPU-T.

• Standard · HMI 430T-03
• EDGE · HMI 430TE-03
• Web visualization · HMI 430TEW-03

7-inch Panel-HMI

800 × 480 pixels, CPU-T, same cut-out as the 7-inch Panel-PLCs.

• Standard · HMI 710T-03
• EDGE · HMI 710TE-03
• Web visualization · HMI 710TEW-03

10.1-inch Panel-HMI

1024 × 600 pixels, CPU-T, same cut-out as the 10.1-inch Panel-PLCs.

• Standard · HMI 1010T-03
• EDGE · HMI 1010TE-03
• Web visualization · HMI 1010TEW-03

15.6-inch Panel-HMI

1366 × 768 pixels, CPU-T, operating temperature 0 to +50 °C.

• Standard · HMI 1560T-03
• EDGE · HMI 1560TE-03
• Web visualization · HMI 1560TEW-03

I/O modules and head stations

The same 20 mm I/O modules fit in the slots of the Panel-PLCs and Compact PLCs and in decentral head stations. ConfigStage sets each channel by mouse click: digital input or output per bit, current or voltage, 2, 3 or 4-wire RTD, and 12 to 16 bit analog resolution via the integration time.

I/O modules

Operating temperature −20 to +60 °C. The energy module E-Mess UI measures current, voltage, power and energy of a three-phase consumer and fits CPU-V controllers and head stations.

• 16 DI · PM-DI16-02
• 16 DI/DO · PM-DIO16-02
• 4 relays 230 V · PM-DO4R-02
• 8 DI/DO + 4 AI/AO · PM-MIO84-02
• 8 AI · PM-AI8-02
• 4 AI + 4 AO · PM-AI4O4-02
• 8 AI + 2 AO · PM-AI8O2-02
• 8 RTD + 2 AO · PM-RTD8O2-02
• Counter 24 V · PM-DIO8Z-24V-03
• Counter 5 V · PM-DIO8Z-5V-03
• Counter RS422 · PM-DIO8Z-422-03
• Energy measurement · PM-EMESS-UI-02

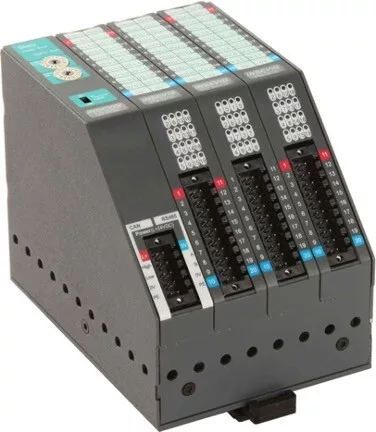

Decentral head stations

Bring the I/O closer to the machine. The head stations connect to the PLC via CAN; you only set the node ID on the station and in ConfigStage. The DP301C has fixed I/O: 24 digital and 6 analog channels.

• Fixed I/O · DP301C-02
• 3 slots · DP303C-02
• 7 slots · DP307C-02
• 11 slots · DP311C-02

Software

Program the PLC with SIMATIC Manager or TIA Portal; the INSEVIS tools handle everything around it. All four are free downloads and run on a standard laptop.

FAQ

Your question not listed? Ask us directly.
