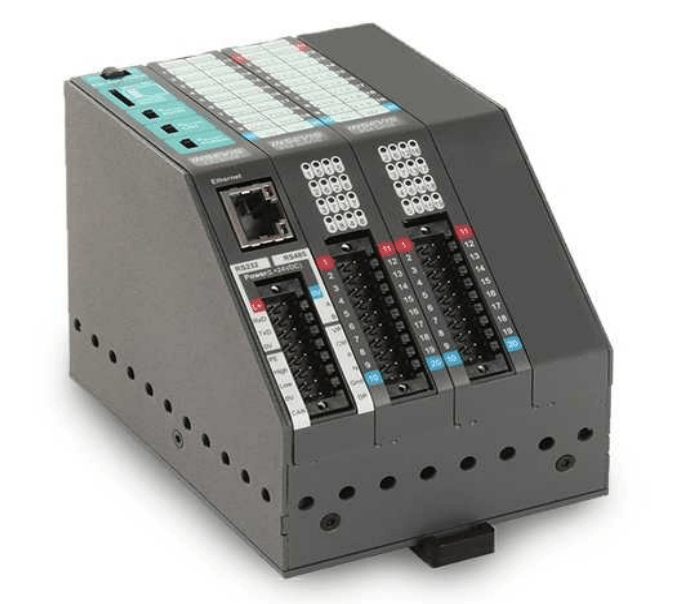

S7-PLC-CC303V Retrofit Cube
Original price was: €930,90.€547,80Current price is: €547,80.
In stock – ready to ship!
Enhance your existing automation systems with the S7-PLC-CC303V Retrofit Cube!
This compact and powerful PLC (S7 compact PLC CC303V including pre-assembled DI16 and MIO84 peripheral modules and required connectors) is designed to seamlessly integrate into your current setup, fitting perfectly on a 35mm DIN-rail. It offers exceptional performance and reliability, making it an ideal choice for upgrading and modernizing your automation infrastructure.
The S7-PLC-CC303V Retrofit Cube is perfect for various industrial automation tasks. It can be programmed using Step 7 or TIA Portal. Its functionality is comparable to a Siemens 315 CPU, ensuring that your existing systems can be enhanced without the need for a complete overhaul.
Additionally, it supports multiple communication protocols including RS232, RS485, Ethernet, and CAN, providing flexible and robust connectivity options for your automation needs.
- Compact Design, fits on a 35mm DIN-rail
- Complete package deal, PLC, I/O and connectors pre-assembled
- Versatile Connectivity: Equipped with RS232, RS485, Ethernet, and CAN interfaces for flexible communication options.
- Expandable: Includes 16 digital inputs, 8 digital I/O, and 4 analog I/O, with one free slot for additional modules.
- User-Friendly: Programmable with Step 7 or TIA Portal, making it easy to configure and manage.
| Dimensions W x H x D (mm) | 80 x 1116,5 x 92 | |
| Weight | ca. 400 g | |
| Mounting | to clip on a 35 mm DIN-rail | |
| Operating temperature range | -20°C ... +60°C (without condensation) | |
| Connection technology | connector with pin-marked pushers and 2 bolt flanges on side (cage clamp technology) for cross sections up to max. 1,5mm2 | |
| Load voltage | L+ 24V DC (11 ... 30V DC) | |
| Current consumption | 20 mA ... 485 mA | |
| Power dissipation | 0,5 W (typ.), 10 W (max.) | |
| CPU-type | Type V (CC303V) | |
| Working memory = battery backed load memory Diagnostic buffer | 512kB, thereof 256 kByte remanent data 100 messages (all remanent) | |
| Internal flash memory External flash memory | 4 MByte Micro SD, up to max. 8 GByte (not necessary for operation) | |
| OB, FC, FB, DB Lokal data Number of in- and outputs Process image Number of Merkerbytes Number of Taktmerker Number of timer, counter Depth of nesting | each 1.024 32kByte (2kByte per block) in each case 2.048 Byte (16.384 Bit) adressable in each case 2.048 Byte (default set is 128 Byte) 2.048 (remanence adjustable, default set is 0..15) 8 (1 Merkerbyte) in each case 256 (each remanence adjustable, default set is 0) up to 16 code blocks | |
| Real-time clock elapsed hour counter | yes (accumulator-backed hardware clock) 1 (32Bit, resolution 1h) | |
| Program language | STEP 7® - AWL, KOP, FUP, S7-SCL, S7-Graph from SIEMENS | |
| Program system | SIMATIC® Manager from SIEMENS or compatible products | |
| Operating system | compatible to S7-300® from Siemens | |
| Program unit to reference | CPU 315-2DP/PN (6ES7 315-2EH14-0AB0 and firmware V3.1 Siemens) | |
| Serial interfaces | COM1: RS 232 (free ASCII) COM2: RS 485 (free ASCII, Modbus-RTU) | |
| Ethernet (protocols) | Ethernet: 10/100 Mbit with CP343 functionality (RFC1006, TCP, UDP, Modbus-TCP) | |
| CAN (protocols) | CAN-Telegramms (Layer 2), compatible to CANopen® Master 10 kBaud ... 1 MBaud | |
| Onboard periphery | 16 dI + 8dI/O +4aI/O and one free slot for INSEVIS-periphery modules | |
| Configuration in ConfigStage | New system with CC303V and PM-DI16 in slot 1 and PM-MIO84 in slot 2 |
Description |
Order number |
| S7 compact PLC CC303V-Cube ( (includes pre-assembled DI16 and MIO84 peripheral modules and required connectors) | CC303V-AKT |
| Product information S7-PLC-CC303V Retrofit-Cube | Versie: Rev01 |
