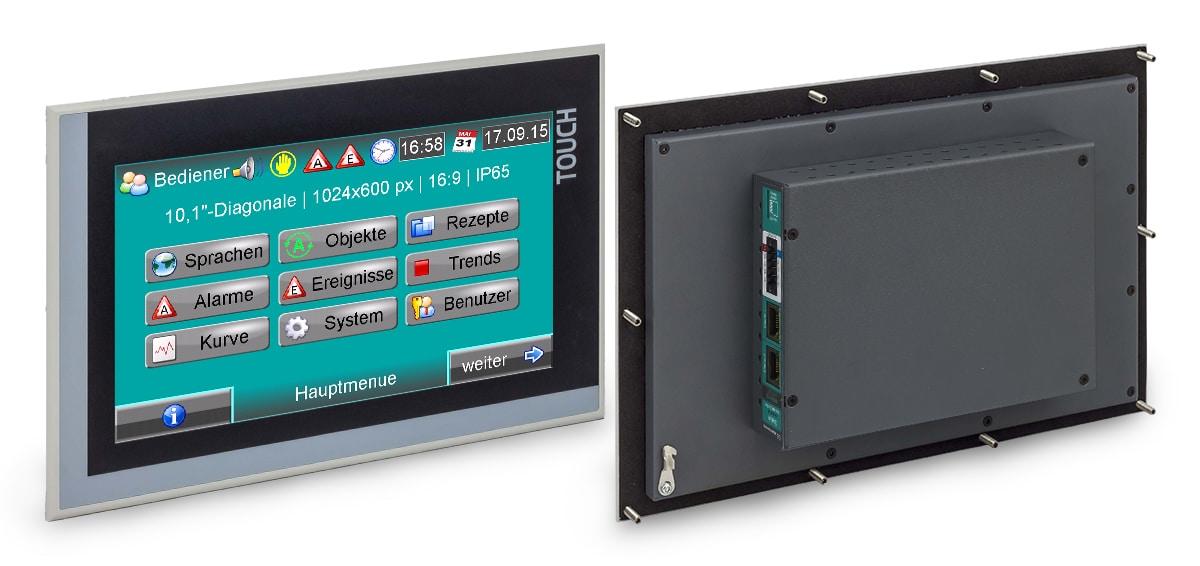

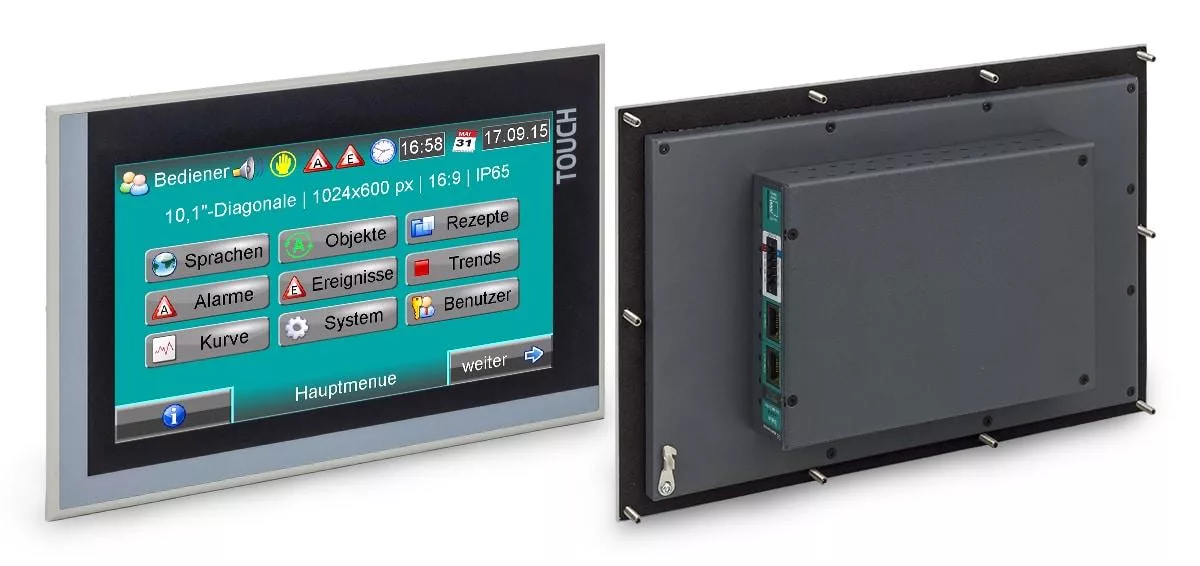

S7-HMI 10.1″, with 1024×600 pixels and 4-way VNC server
This S7 HMI with a 10.1″ diagonal has a great resolution and brilliance. Ideal for medium-sized applications because the range of functions is enormous. The modern 16:9 format leaves plenty of space for objects in a mask at 10.1″. A 4-way VNC server is already integrated in this S7 HMI, as are many other extensive functions.
New from 2024: the EDGE version of the HMI1010T with OPC UA, MQTT, NodeRED, openVPN and automatically generated web visualization.
- IP-protection class: front panel IP65 and rear side IP41
- Operating temperature: -20°C ... +60°C (without condensation)
- Communicate directly with S7-PLC's by Ethernet RFC 1006
- Free Software tool to create and simulate visualization - VisuStage
| 10,2“ TFT display (1024x600 pixel) - resistive touch |
| 2x Ethernet with - RFC1006, - for communication with S7-CPU's |
| Micro-SD-slot - for SD-cards up to 8GByte |
| Status LEDs for Power, Battery, Error, Run |
| 48 MByte Internal Flash for visualization |
Description |
Order number |
| 10,1″-Panel-HMI | HMI1010T-0-03 |
| 10.1″ panel HMI with gateway functionality | HMI-1010TE-03 |
| 10,1″-Panel-HMI with gateway functionality and web visualization | HMI-1010TEW-03 |
