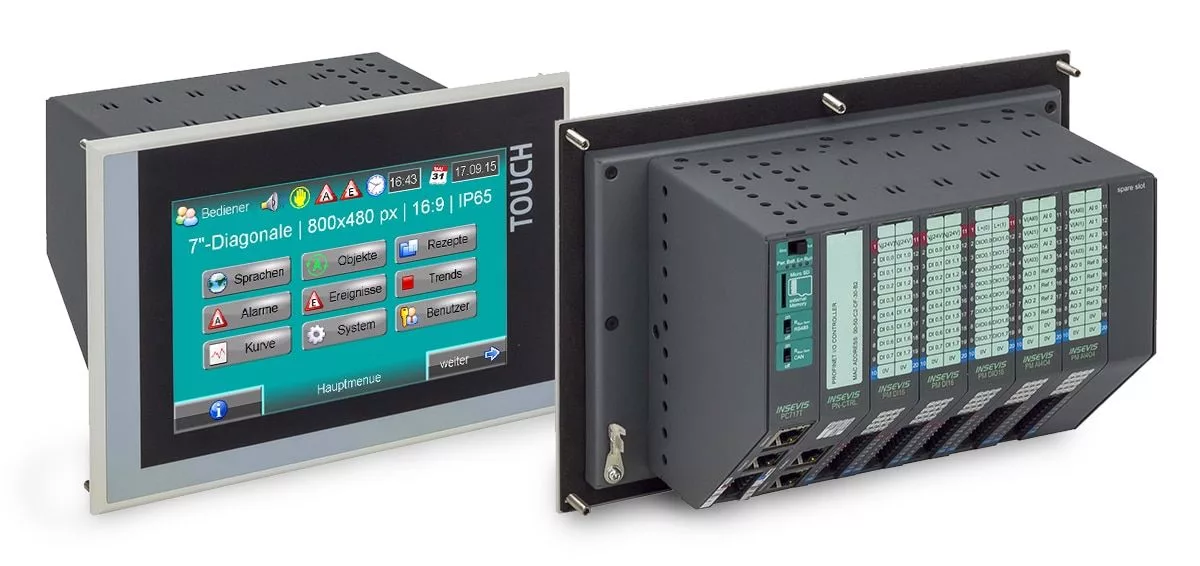

7″ – S7-Panel-PLC – with onboard periphery slots

7″ – S7-Panel-PLC – with onboard periphery slots

If you integrate 7 slots for INSEVIS periphery modules into the PC710T, you will get this device.

All the existing advantages combined with different modular periphery onboard.

These Panel-PLCs are only 95mm deep and contain up to 126 digital or 70 analog I/Os below the metal rear cover, what can be customized on each slot.

The brilliant display and the lots of visualization features are not to compare with basic devices and contain all the S7-CPU-T memorie sizes and interfaces and optional Profinet IO Controller.

Beside the classic control applications this units are often used as data logger, PDA-devices or gateways wit data preprocessing by S7.

  • Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
  • IP-protection class: front panel IP65 and rear side IP41
  • Operating temperature: -20°C ... +60°C (without condensation)
  • Optional: PROFINET IO Controller
  • up to 126 digital or 70 analog I/Os

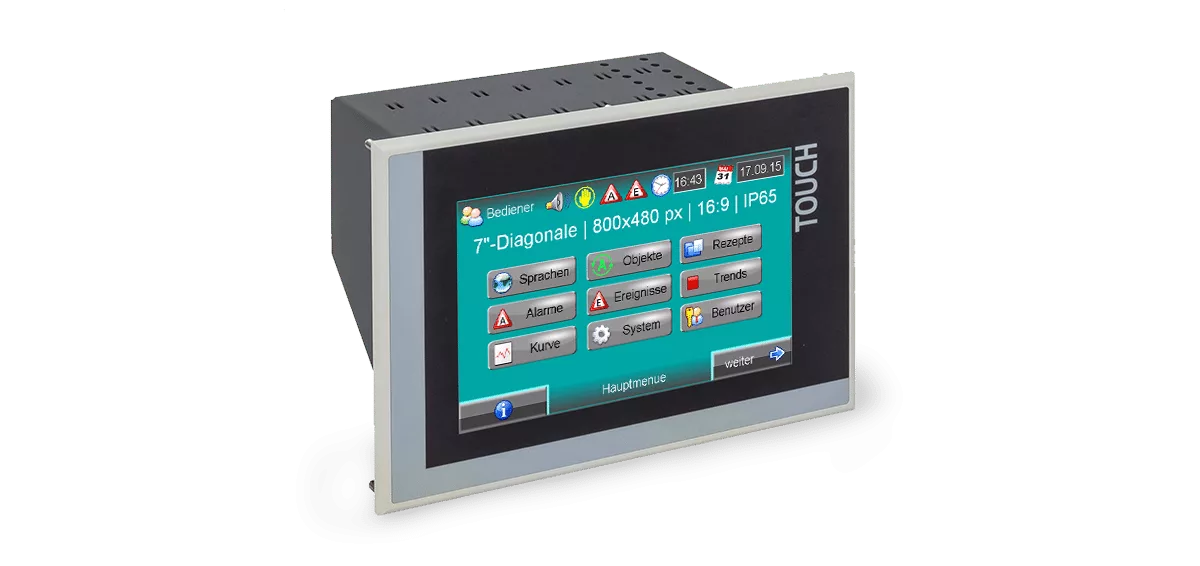

7“ TFT display (800x480 pixel) - resistive touch
Max. 6-Periphery modules can be integrated
RS232 with - free ASCII protocol
RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485
2x Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP
CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN
Micro-SD-slot - for SD-cards up to 8GByte
Run/Stop-switch
Status LEDs for Power, Battery, Error, Run
Profinet IO Controller in PC717T-PNC-02

Omschrijving

Bestelnummer

7″-Panel-PLC with integrated CPU-TPC717T-0-03
4,3″-Panel-PLC with integrated Profinet IO Controller and CPU-TPC717T-PNC-02
