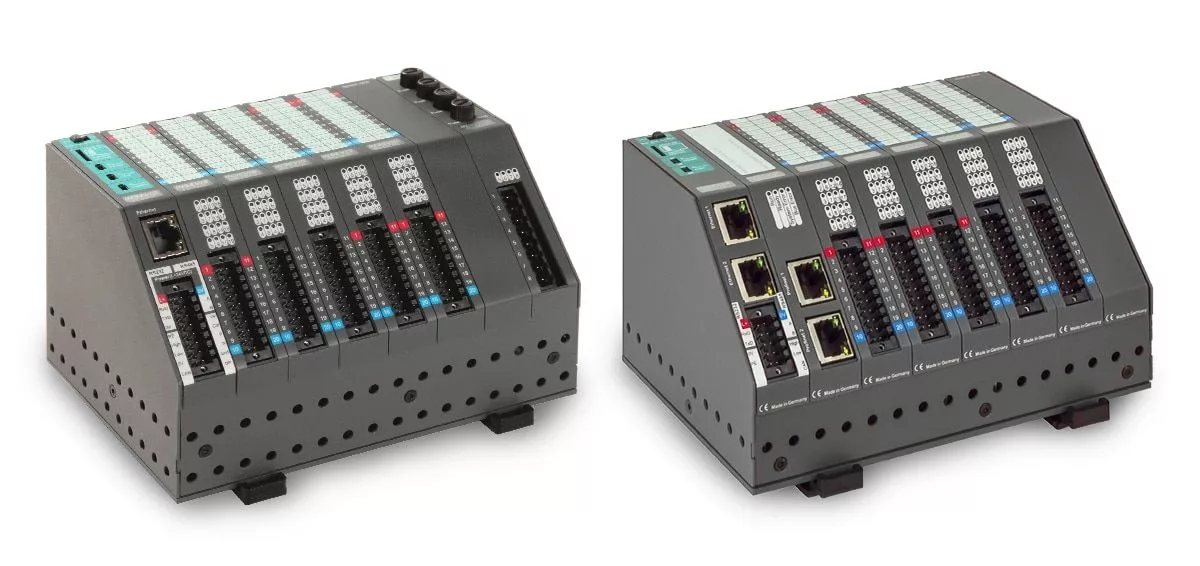

S7-Compact-PLC with 7 periphery slots 161mm wide

These PLCs provide additional 7 periphery slots for INSEVIS- periphery below the 161mm wide metal rear cover.

Of course they contain a large working- (512kB/1MB) and load memory (2MB/8MB) and a lot of interfaces like Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP V0 (Master/Slave at CPU-V) resp. Profinet IO Controller (at CPU-T, what provides 2 separated Ethernet-ports too).

Every slot can be labeled with customer logo and article number.

  • Compact-PLC for 35mm DIN-rail
  • 7 slots for periphery modules
  • RS232 with - free ASCII-protocol
  • RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485
  • 2x Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP
  • CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN
  • Micro-SD-slot - for SD-cards up to 8GByte
  • Run/Stop-switch
  • Status LEDs for Power, Battery, Error, Run
  • Profinet IO Controller in PC430T-PNC-02
RS232 with - free ASCII-protocol
RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485
Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP
CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN
Micro-SD-slot - for SD-cards up to 8GByte
Run/Stop-switch
Status LEDs for Power, Battery, Error, Run
Optional configuration: (optional) - Profibus DP-Master - Profibus DP-Slave - PROFINET IO-Controller

Omschrijving

Bestelnummer

DIN-rail S7-PLC with integrated CPU-VCC307V-0-03
DIN-rail S7-PLC with Profibus DP V0 Master and integrated CPU-VCC307V-DPM-03
DIN-rail S7-PLC with Profibus DP V0 Slave and integrated CPU-VCC307V-DPS-03
DIN-rail S7-PLC with integrated CPU-TCC307T-0-02
DIN-rail S7-PLC with Profinet IO Controller and integrated CPU-TCC307T-PNC-02
