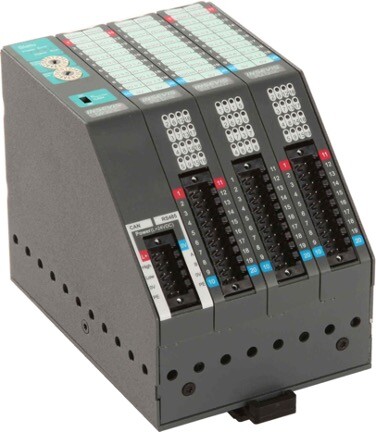

Head station with 3 periphery slots
Head station with 3 periphery slots
Our S7-periphery blocks for 3, 7 er 11 periphery slots are so easy to config. This knowledge is learned and done just in a minute only. Just assign the node ID on the hexadecimal turn switches in the head stations. Insert this value into the cost free configuration tool ConfigStage – ready. I/O start addresses will be assigned automatically and controlled by an internal plausibility test. Up to 127pcs. of these stations can be connected to an INSEVIS S7-CPU. A solid metal cover protects the inserted periphery modules against electomechanical fields.
- DP303C with 3 free periphery slots
- communication to PLC with a protocol compatible to CANopen®
- with switchable teminate resistors for CAN
Vraag direct een offerte aan!
Head station with 3 periphery slots
Snel leverbaar!
| DimensionWxHxD (mm) | 82 x 116,5 x 92 |
| Mounting | to clip on a 35mm DIN-rail |
| IP-leak protection class | IP41 |
| Operating temperature range | -20°C ... +60°C (without condensation) |
| Storage temperature range | -30°C ... +80°C |
| Connection technology | unlockable connector with self-lock and 2 lift-arms (cage clamp technology) for cross section up to max. 1,5mm2 |
| Load voltage L+ | 24V DC (11 ... 30V DC) |
| Current consumption | 20 mA ... 275 mA |
| Power dissipation | 0,5 W (typ.), 4,5 W (max.) |
| Start-up current | < 3A |
| CAN Interface Potential separation | none (nonisolated, bound to L+ and periphery slots) |
| Wire length | 30 m (using sufficient potential equalisation) |
| Periphery slots | 3 free slots for INSEVIS-periphery modules |
Omschrijving |
Bestelnummer |
| interface station for decentral periphery DP303C | DP303C-02 |
