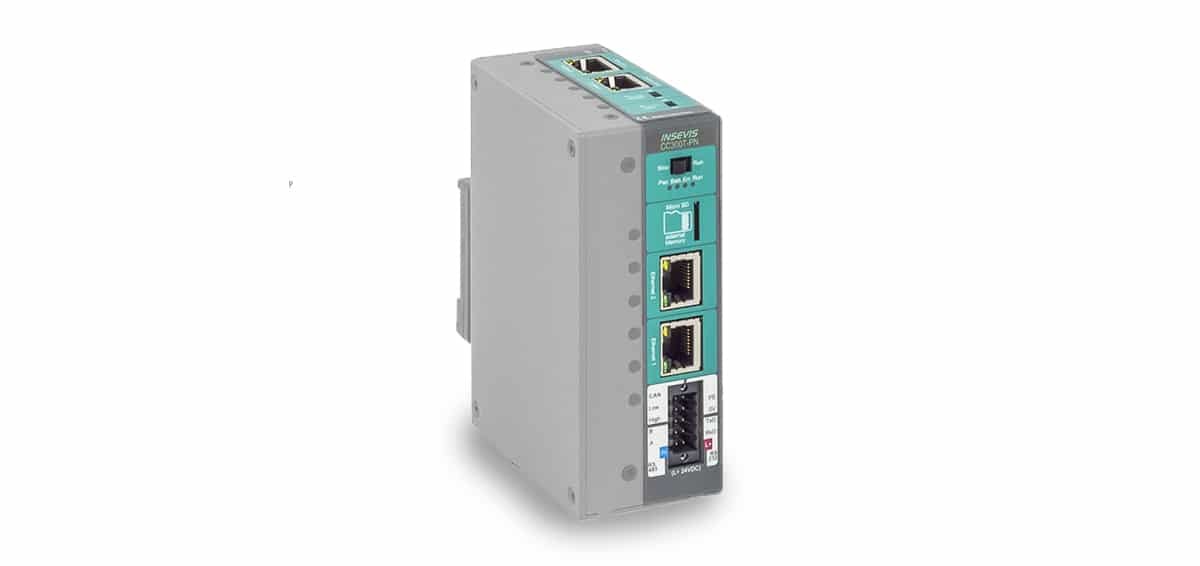

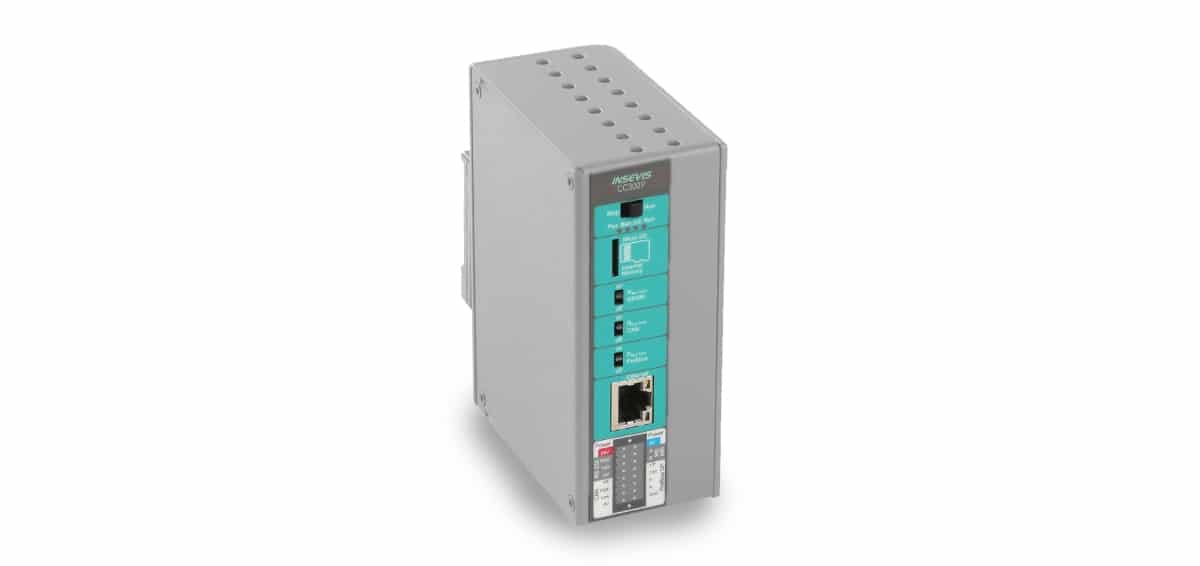

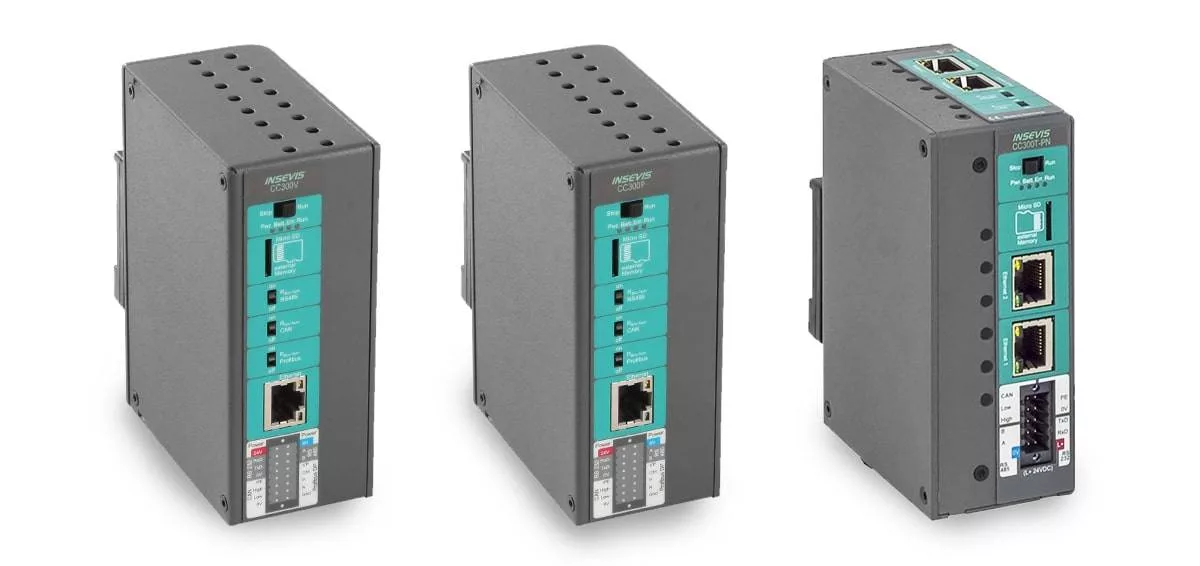

S7-Compact-PLC for DIN-rail 50mm wide
S7-Compact-PLC for DIN-rail 50mm wide
By a width of only 50mm these Compact-PLCs CC300V/T provide a large working- (512kB/1MB) and load memory (2MB/8MB).
And a lot of interfaces like Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP V0 (Master/Slave at CPU-V) resp. Profinet IO Controller (at CPU-T, what proviedes 2 separated Ethernet-ports too).
Decentral peripheries (TB20) can be integrated easily by the cost free configuration tool ConfigStage. This prefers these devises for gateway applications.
Your logo and article number? No problem ? with the 1st piece.
- Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
- Operating temperature: -20°C ... +60°C (without condensation)
- Interesting product also for use as Gateway: S7 to ModbusTCP, RTU or CANopen!
Vraag direct een offerte aan!
S7-Compact-PLC for DIN-rail 50mm wide
| RS232 with - free ASCII-protocol |
| RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485 |
| Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP |
| CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN |
| Micro-SD-slot - for SD-cards up to 8GByte |
| Run/Stop-switch |
| Status LEDs for Power, Battery, Error, Run |
| Optional configuration: (optional) - Profibus DP-Master - Profibus DP-Slave - PROFINET IO-Controller |
Omschrijving |
Bestelnummer |
| DIN-rail S7-PLC with integrated CPU-V | CC300V-0-03 |
| DIN-rail S7-PLC with Profibus DP V0 Master and integrated CPU-V | CC300V-DPM-03 |
| DIN-rail S7-PLC with Profibus DP V0 Slave and integrated CPU-V | CC300V-DPS-03 |

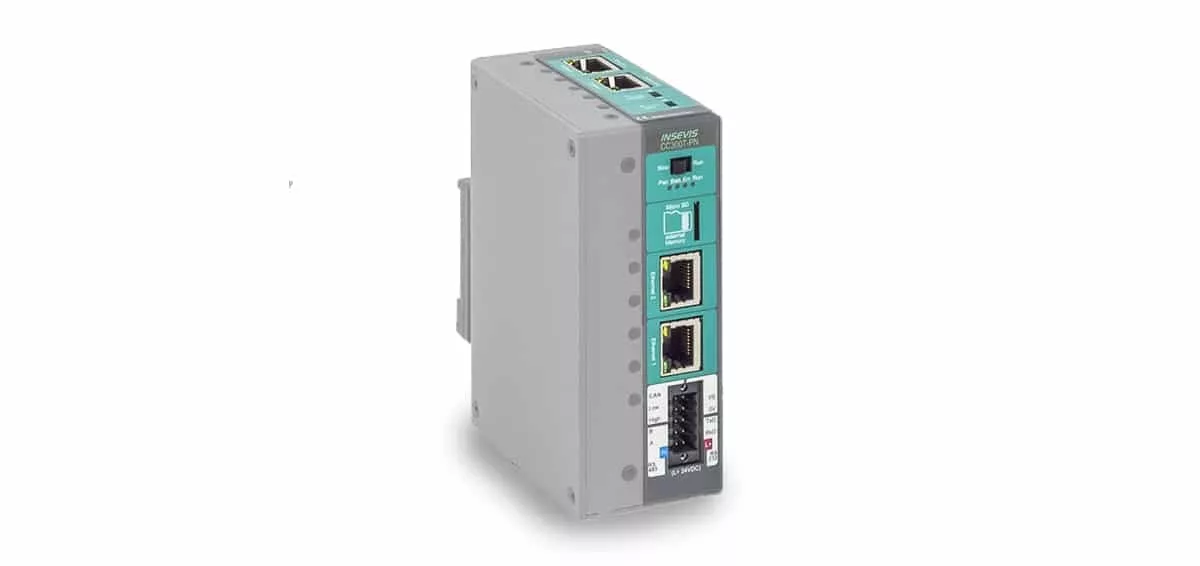

| DIN-rail S7-PLC with integrated CPU-T | CC300T-0-02 |
| DIN-rail S7-PLC with Profinet IO Controller and integrated CPU-T | CC300T-PNC-02 |
vraag meer informatie over toepassingen aan via ons contactformulier.
