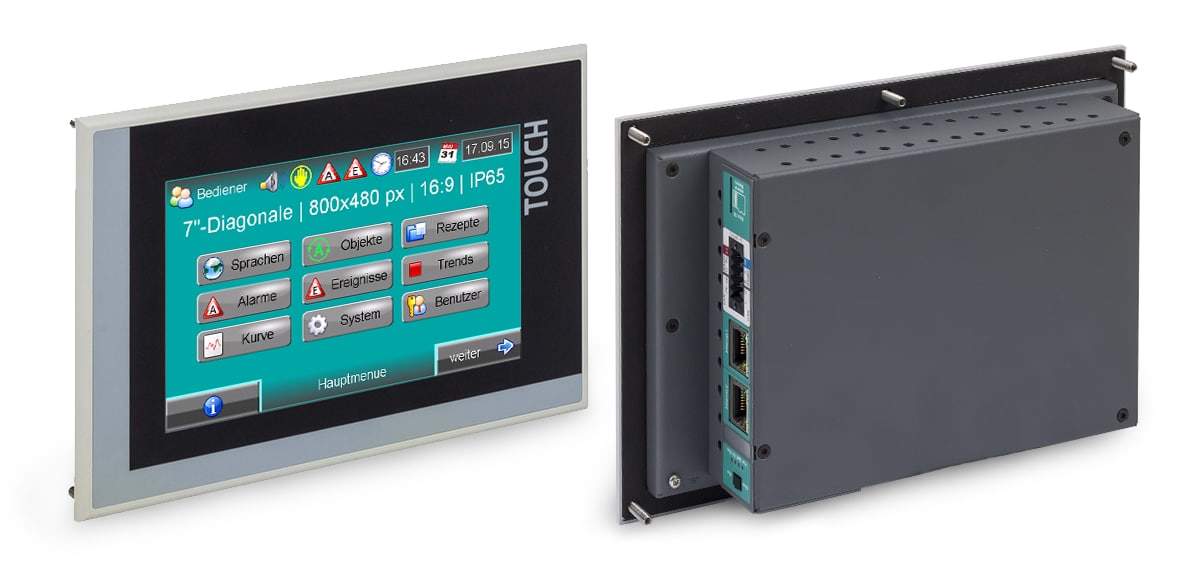

7″ – S7-Panel-PLC – flat / no periphery slots onboard
The integrated CPU-T provides 1MB work-, 8MB load and 48MB visualization memory and this makes the difference.
The brilliant display is an eye catcher for itself, lots of genial solved objects make this panel to a powerful -but easy to create- visualization.
2 device types: The ?small? contains interfaces like Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and the ?large? additionally Profinet-IO Controller.
Web server and VNC server are included.
- Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
- IP-protection class: front panel IP65 and rear side IP41
- Operating temperature: -20°C ... +60°C (without condensation)
- Optional: PROFINET IO Controller
| 7“ TFT display (800x480 pixel) - resistive touch |
| RS232 with - free ASCII protocol |
| RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485 |
| 2x Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP |
| CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN |
| Micro-SD-slot - for SD-cards up to 8GByte |
| Run/Stop-switch |
| Status LEDs for Power, Battery, Error, Run |
| Profinet IO Controller in PC710T-PNC-02 |
Description |
Order number |
| 7″-Panel-PLC with integrated CPU-T | PC710T-0-03 |
| 7″-Panel-PLC with integrated Profinet IO Controller and CPU-T | PC710T-PNC-02 |
