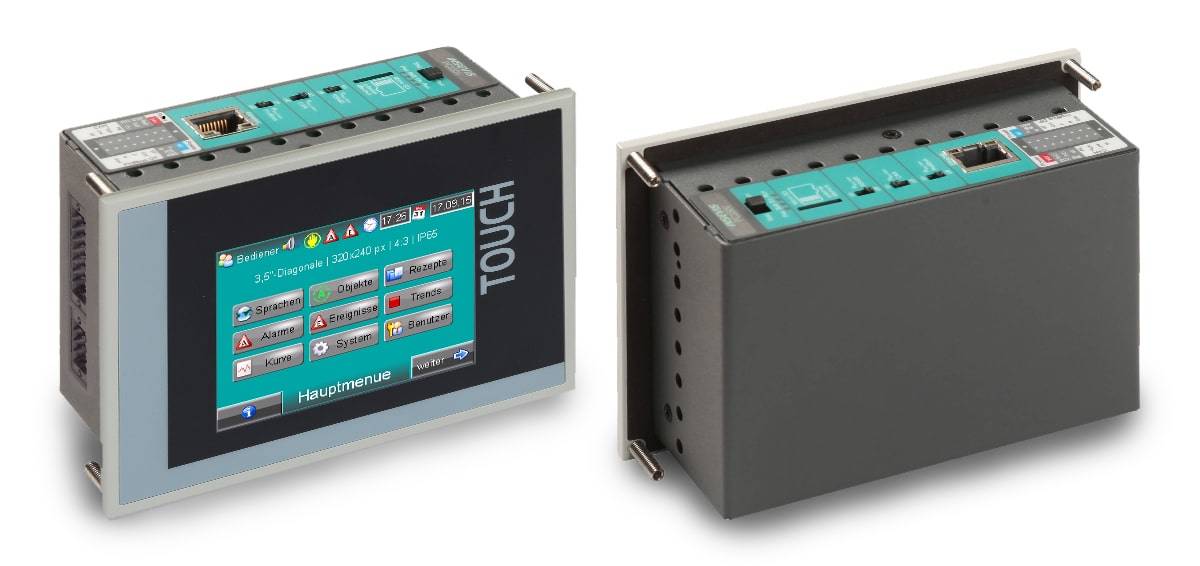

3,5″ – S7-Panel-PLC – flat / with fixed onboard periphery

Welcome to the worlds most compact S7-touch Panel-PLC with onboard-periphery! 4 digital and 2 analog in- or outputs hide below the narrow metal rear cover. More periphery can by uses external, but for some application this is the direct hit. The brilliant panel and the very small dimensions favor these devices for small solutions to surprise with the power of large equipment. With only 50mm mounting depth ultra compact and nevertheless with Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen cnd Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP V0 (Master, Slave) a real wonder of communication.

Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
IP-protection class: front panel IP65 and rear side IP41
Operating temperature: -20°C ... +60°C (without condensation)
with onboard-periphery! 4 digital and 2 analog in- or outputs

Vraag direct een offerte aan!

3,5″ – S7-Panel-PLC – flat / with fixed onboard periphery

Meer informatie aanvragen

with onboard-periphery! 4 digital and 2 analog in- or outputs

3,5“ TFT (320x240 pixel)

RS232 with - free ASCII-protocol

RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485

Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP

CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN

Micro-SD-slot - for SD-cards up to 8GByte

Run/Stop-switch

Status LEDs for Power, Battery, Error, Run

Optional configuration: (optional) - Profibus DP-Master - Profibus DP-Slave - with switchable teminate resistors for Profibus

Omschrijving	Bestelnummer
3,5″-Panel-PLC with integrated CPU-V	PC351V-0-03
3,5″-Panel-PLC with Profibus DP V0 Master and integrated CPU-V	PC351V-DPM-03
3,5″-Panel-PLC with Profibus DP V0 Slave and integrated CPU-V	PC351V-DPS-03
3,5″-Panel-PLC with integrated CPU-P	PC351P-0-03
3,5″-Panel-PLC with Profibus DP V0 Master and integrated CPU-P	PC351P-DPM-03
3,5″-Panel-PLC with Profibus DP V0 Slave and integrated CPU-P	PC351P-DPS-03
