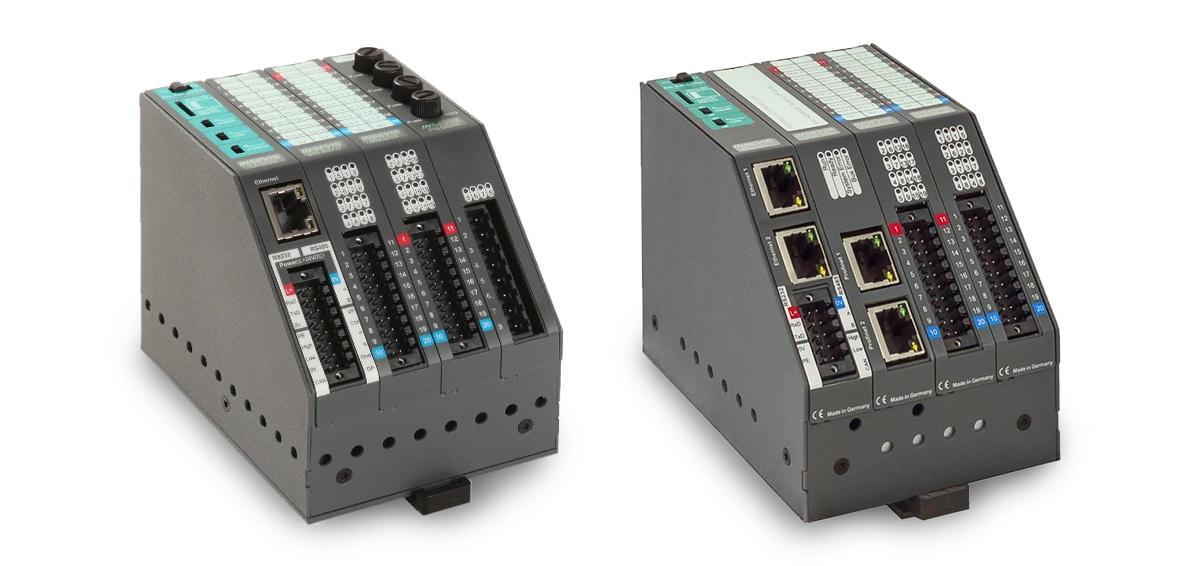

S7-Compact-PLC with 3 periphery slots 82mm wide
S7-Compact-PLC with 3 periphery slots 82mm wide
These PLCs provide additional 3 periphery slots for INSEVIS- periphery below the 82mm wide metal rear cover.
Of course they contain a large working- (512kB/1MB) and load memory (2MB/8MB) and a lot of interfaces like Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP V0 (Master/Slave at CPU-V) resp. Profinet IO Controller (at CPU-T, what provides 2 separated Ethernet-ports too).
Every slot can be labeled with customer logo and article number.
- Compact-PLC for 35mm DIN-rail
- 3 slots for periphery modules
- RS232 with - free ASCII-protocol
- RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485
- 2x Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP
- CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN
- Micro-SD-slot - for SD-cards up to 8GByte
- Run/Stop-switch
- Status LEDs for Power, Battery, Error, Run
- Profinet IO Controller in PC430T-PNC-02
Vraag direct een offerte aan!
S7-Compact-PLC with 3 periphery slots 82mm wide
| RS232 with - free ASCII-protocol |
| RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485 |
| Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP |
| CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN |
| Micro-SD-slot - for SD-cards up to 8GByte |
| Run/Stop-switch |
| Status LEDs for Power, Battery, Error, Run |
| Optional configuration: (optional) - Profibus DP-Master - Profibus DP-Slave - PROFINET IO-Controller |
Description |
Order number |
| DIN-rail S7-PLC with integrated CPU-V | CC303V-0-03 |
| DIN-rail S7-PLC with Profibus DP V0 Master and integrated CPU-V | CC303V-DPM-03 |
| DIN-rail S7-PLC with Profibus DP V0 Slave and integrated CPU-V | CC303V-DPS-03 |
| DIN-rail S7-PLC with integrated CPU-T | CC303T-0-02 |
| DIN-rail S7-PLC with Profinet IO Controller and integrated CPU-T | CC303T-PNC-02 |
