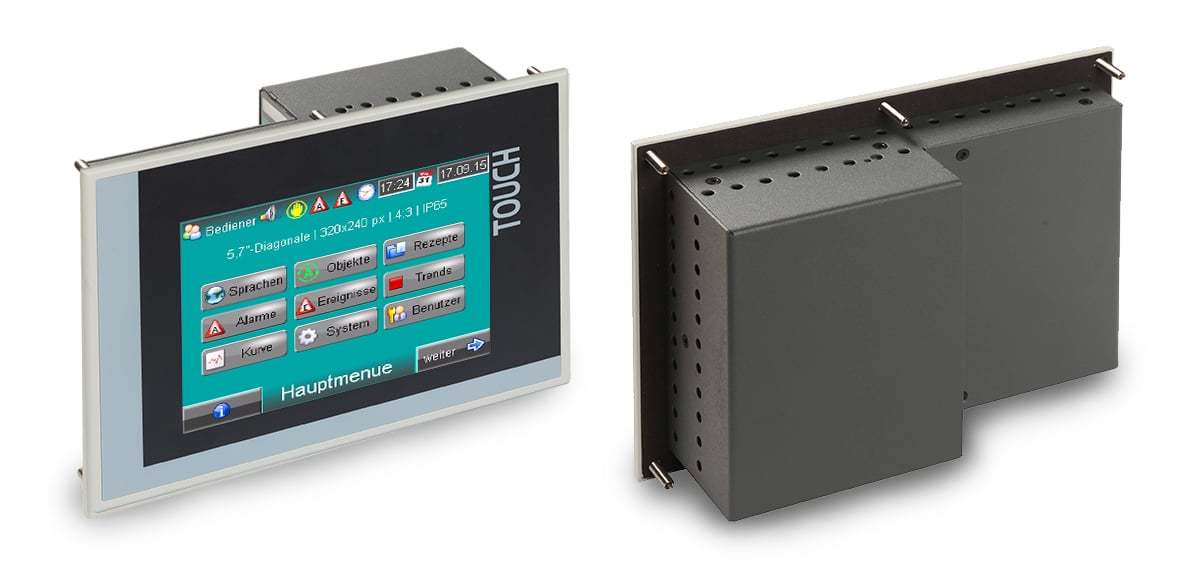

5,7″ – S7-Panel-PLC – flat / no periphery slots onboard
5,7″ – S7-Panel-PLC – flat / no periphery slots onboard
For those, who miss this 5,7? design, these devices will be a good solution with long termed availaility. But there is not only a panel, a PLC is integrated too! And this is a very strong PLC with the instruction set of a S7-315-2PNDP but more memory and a number of interfaces: Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP V0 (Master, Slave) make a power device from this Panel-PLC. With low power consumption and fast booting and only 50mm flat.
- Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
- IP-protection class: front panel IP65 and rear side IP41
- Operating temperature: -20°C ... +60°C (without condensation)
Vraag direct een offerte aan!
5,7″ – S7-Panel-PLC – flat / no periphery slots onboard
PC570V/P 5,7“ TFT (320x240 Pixel/ QVGA) |
RS232 with - free ASCII-protocol |
RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485 |
Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP |
CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN |
Micro-SD-slot - for SD-cards up to 8GByte |
Run/Stop-switch |
Status LEDs for Power, Battery, Error, Run |
Optional configuration: (optional) - Profibus DP-Master - Profibus DP-Slave - with switchable terminate resistors for Profibus |
Omschrijving |
Bestelnummer |
5,7″-Panel-PLC with integrated CPU-V | PC570V-0-03 |
5,7″-Panel-PLC with integrated Profibus DP V0 Master and CPU-V | PC570V-DPM-03 |
5,7″-Panel-PLC with integrated Profibus DP V0 Slave and CPU-V | PC570V-DPS-03 |
5,7″-Panel-PLC with integrated CPU-P | PC570P-0-03 |
5,7″-Panel-PLC with integrated Profibus DP V0 Master and CPU-P | PC570P-DPM-03 |
5,7″-Panel-PLC with integrated Profibus DP V0 Slave and CPU-P | PC570P-DPS-03 |
vraag meer informatie over toepassingen aan via ons contactformulier.
