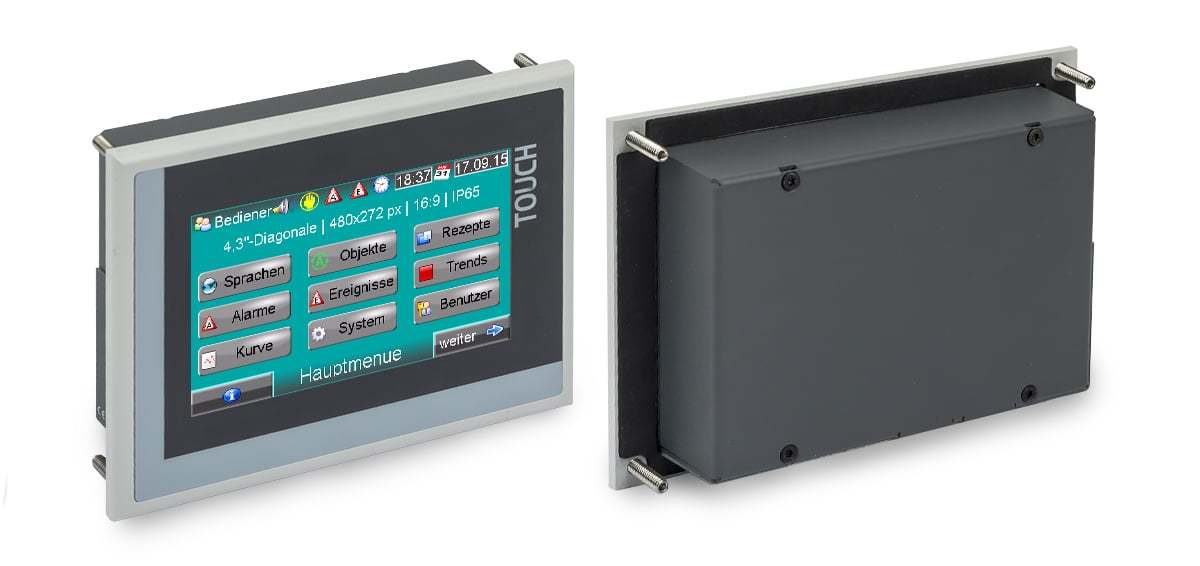

S7-HMI 4.3″ with 480×272 pixels and 4-way VNC server
This small, high-resolution HMI in 16:9 format is only 25mm thick! Its fast CPU and large visualization memory of 48MB make it ideal for small displays and archiving huge amounts of data. It has a wide range of functions, e.g. unlimited languages. The IP65 density class allows a very wide range of applications for this extremely fast panel as an S7 HMI. Even this smallest S7 HMI with CPU-T has an integrated 4-way VNC server and can therefore be integrated in the Siemens Sm@rtClient, for example.
New from 2024: the EDGE version of the HMI430T with OPC UA, MQTT, NodeRED, openVPN and automatically generated web visualization.
- 24mm mounting depth – champion!
- IP-protection class: front panel IP65 and rear side IP41
- Operating temperature: -20°C ... +60°C (without condensation)
- Communicate directly with S7-PLC's by Ethernet RFC 1006
- Free Software tool to create and simulate visualization - VisuStage
| 4,3“ TFT display (480x272 pixel) - resistive touch |
| 2x Ethernet with - RFC1006, - for communication with S7-CPU's |
| Micro-SD-slot - for SD-cards up to 8GByte |
| Status LEDs for Power, Battery, Error, Run |
| 48 MByte Internal Flash for visualization |
Description |
Order number |
| 4,3″-Panel-HMI | HMI430T-0-03 |
| 4,3″-Panel HMI with gateway functionality | HMI-430TE-03 |
| 4,3″-Panel-HMI with gateway functionality and web visualization | HMI-430TEW-03 |
