15,6″ – S7-Panel-PLC – with onboard periphery slots

15,6″ – S7-Panel-PLC – with onboard periphery slots

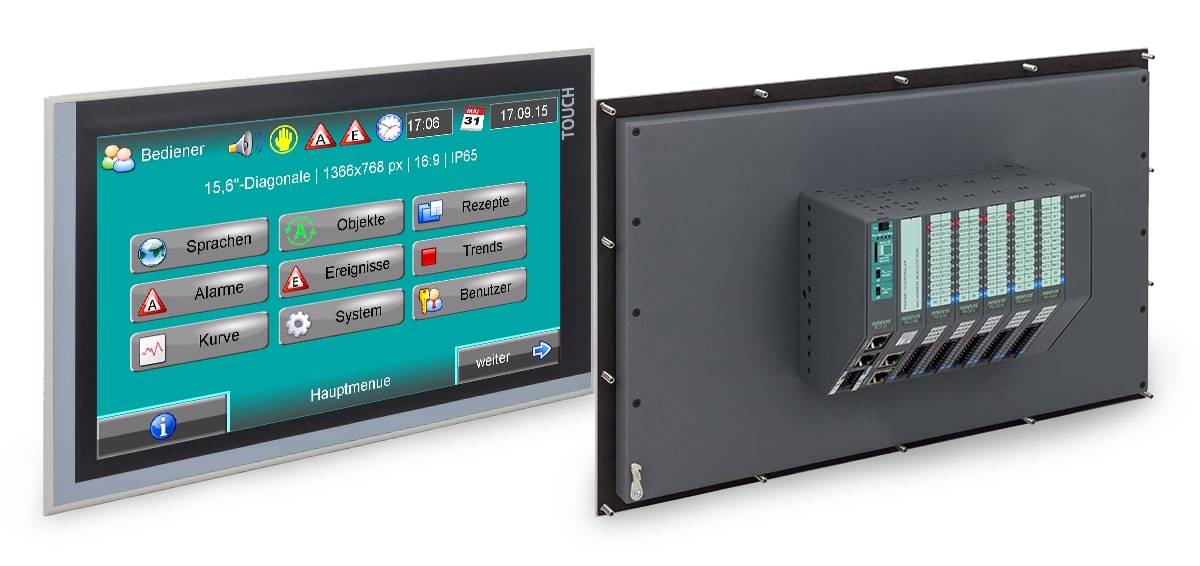

If you integrate 7 slots for INSEVIS periphery modules into the PC1560T, you will get this device.

All the existing advantages combined with different modular periphery onboard. These Panel-PLCs are only 104mm deep and contain up to 126 digital or 70 analog I/Os below the metal rear cover, what can be customized on each slot and combined with external periphery as well.

It boots and switches pages fastly.

By the range of interfaces of the CPU-T (2x Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profinet IO Controller) communication is no problem with this device.

  • Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
  • IP-protection class: front panel IP65 and rear side IP41
  • Operating temperature: -20°C ... +60°C (without condensation)
  • Optional: PROFINET IO Controller
  • up to 126 digital or 70 analog I/Os
15,6“ TFT display (1366x768 pixel) - resistive touch
Max. 6-Periphery modules can be integrated
RS232 with - free ASCII protocol
RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485
2x Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP
CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN
Micro-SD-slot - for SD-cards up to 8GByte
Run/Stop-switch
Status LEDs for Power, Battery, Error, Run
Profinet IO Controller in PC1567T-PNC-02

Omschrijving

Bestelnummer

15,6″-Panel-PLC with integrated CPU-TPC1567T-0-02
15,6″-Panel-PLC with integrated Profinet IO Controller and CPU-TPC1567-PNC-02
