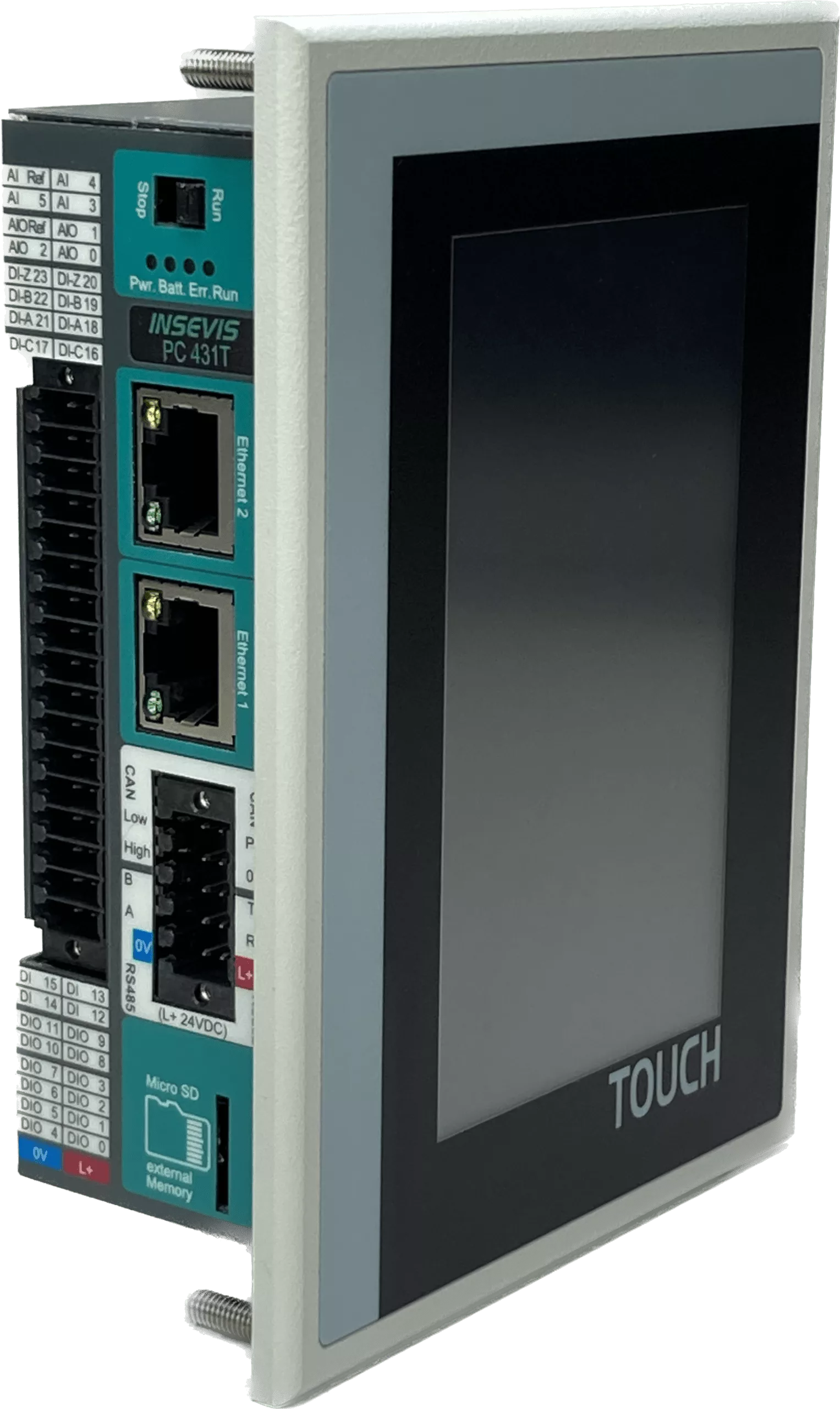

How do a panel, an S7-PLC and so many IO´s fit in a depth of 43mm?
INSEVIS shows how 12 digital inputs or outputs, 12 counting inputs, 3 analogue channels, each of which can be configured individually as an input or output and for current or voltage, and another 3 analogue inputs, which can be almost anything, can be combined on a 4,3″ panel PLC with this panel PLC in a full 43,5 (!) mm depth. Decentralised field devices are connected via the onboard interfaces Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). The two separately configurable Ethernet interfaces enable integration into your customer’s machine network and, at the same time, service access in a separate network for you.
- 43,5mm mounting depth – champion!
- Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
- IP-protection class: front panel IP65 and rear side IP41
- Operating temperature: -20°C ... +60°C (without condensation)
Vraag direct een offerte aan!
4,3″ – S7-Panel-PLC – flat / with integrated IOs
Direct leverbaar!

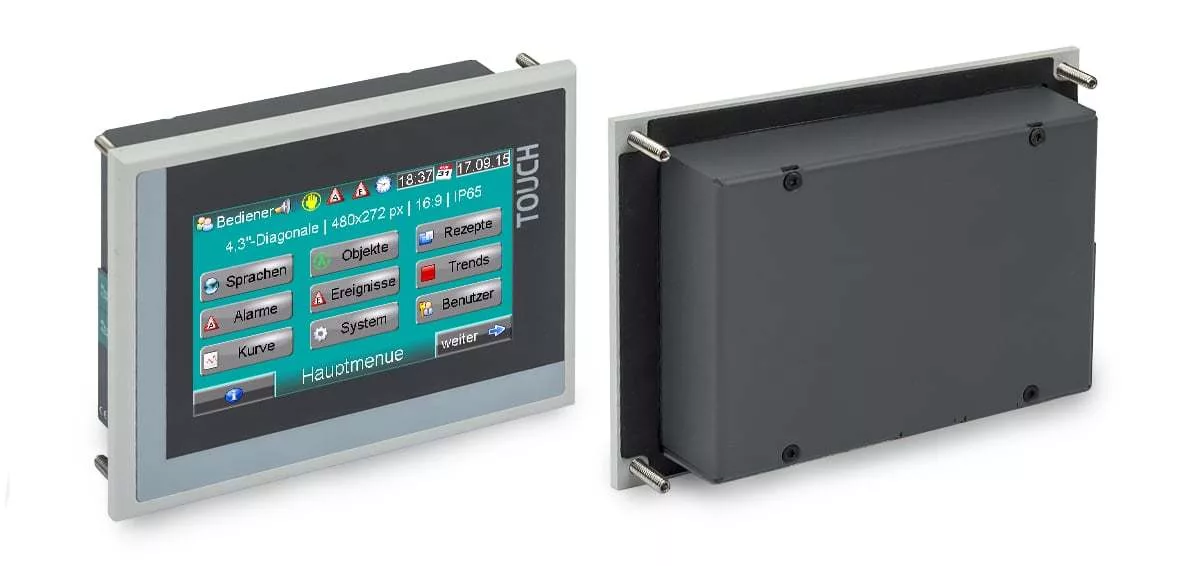

| 4,3“ TFT display (480x272 pixel) - resistive touch |

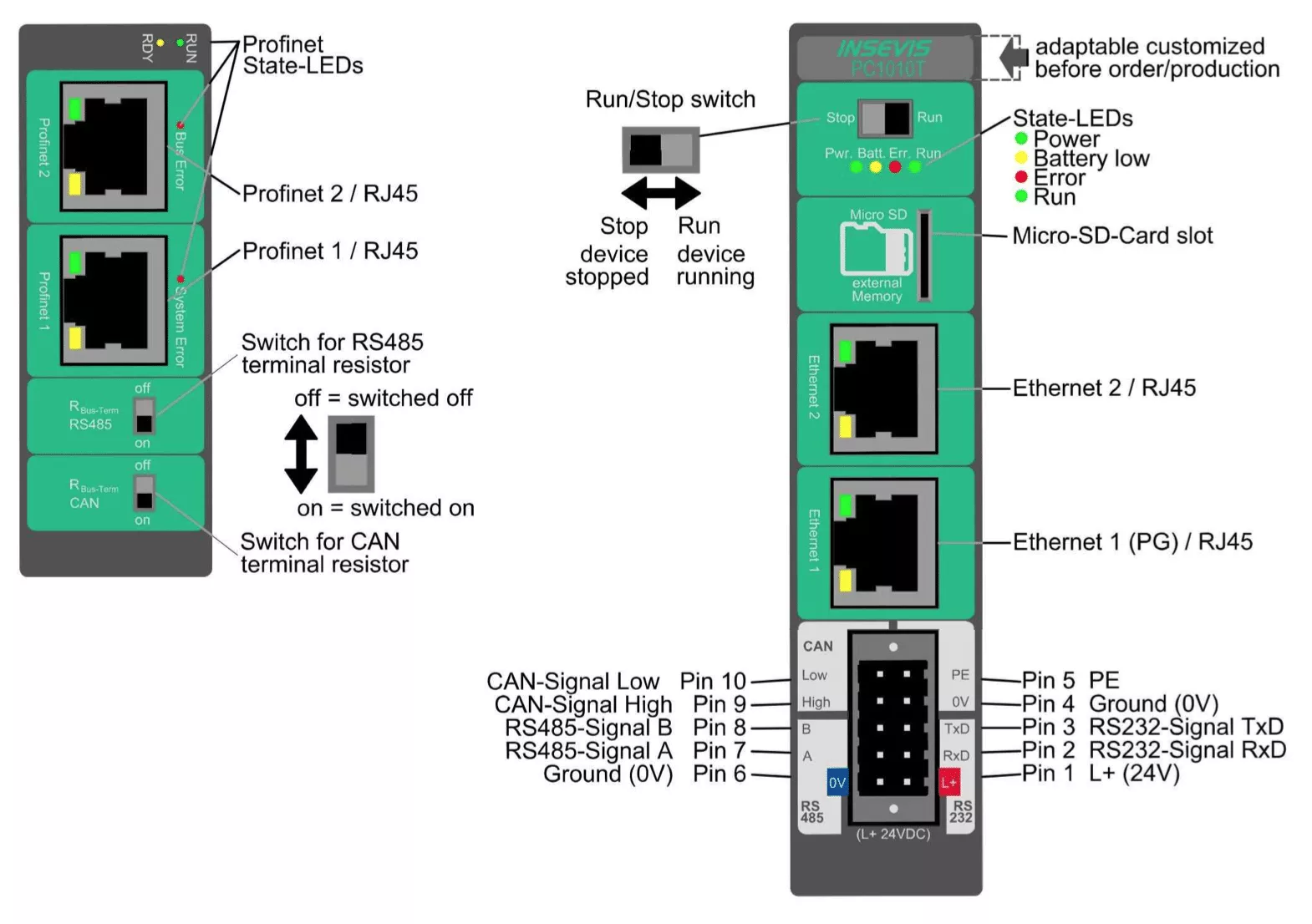

| RS232 with - free ASCII protocol |
| RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485 |
| 2x Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - ModbusTCP |
| CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN |
| Micro-SD-slot - for SD-cards up to 8GByte |
| Run/Stop-switch |
| Status LEDs for Power, Battery, Error, Run |
| 12 digital I/Os thereof 2 PWM-Outputs thereof 2 PushPull-Outputs |
| 12 digital Inputs´s thereof 2 Counters 1kHz thereof 2 Counters 100kHz |
| 3 analog I/O's ((switchable per channel as input/output and for U / I) |
| 3 analog Inputs (customizable as RTD/ U/ I/ TC/ DMS) |
Omschrijving |
Bestelnummer |
| 4,3″-Panel-PLC with integrated digital & analog IOs | PC431T-0-03 |
