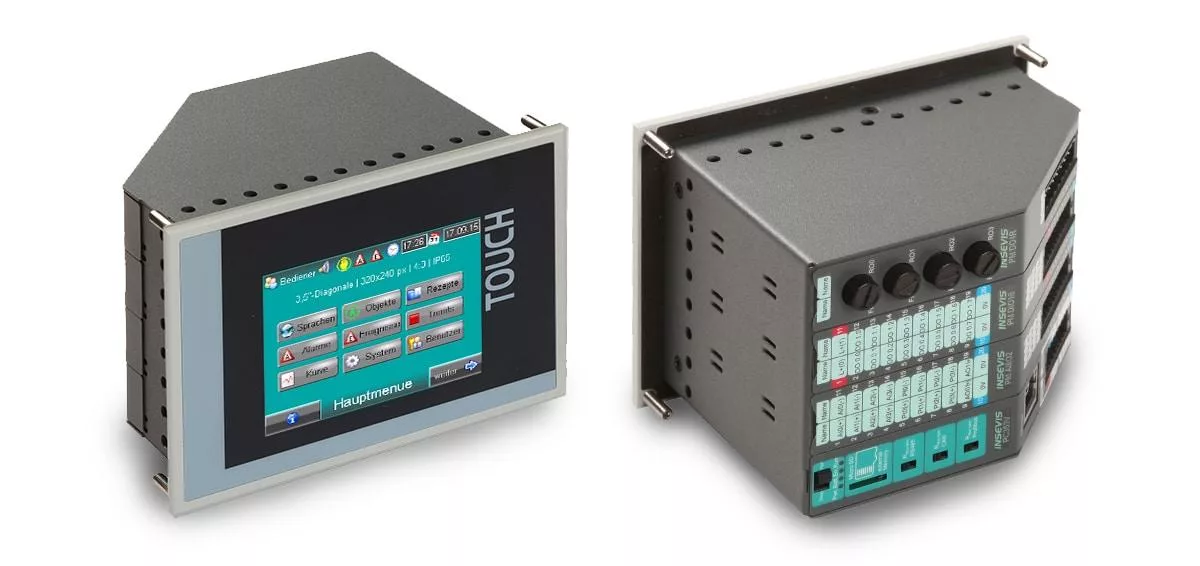

3,5″ – S7-Panel-PLC with onboard periphery slots

3,5″ – S7-Panel-PLC with onboard periphery slots

Who need to use lots of I/Os modular in a small switching cabinet or directly in the machine will love this only 89mm deep S7-Panel-PLC. Up to 48 digital or 30 analog I/Os fit below the high class worked metal rear cover. This solution replaces more and more older C7-devices and expands the machines live by far. The large working memory (512/640kB) and the number of interfaces like Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP V0 (Master, Slave) favors this units to be used as data logger, PDA-devices or gateways wit data preprocessing by S7.

  • Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
  • IP-protection class: front panel IP65 and rear side IP41
  • Operating temperature: -20°C ... +60°C (without condensation)
  • Up to 48 digital or 30 analog I/Os fits in the housing
3,5“ TFT (320x240 pixel)
Max. 2-Periphery modules can be integrated
RS232 with - free ASCII-protocol
RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485
Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP
CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN
Micro-SD-slot - for SD-cards up to 8GByte
Run/Stop-switch
Status LEDs for Power, Battery, Error, Run
Optional configuration: (optional) - Profibus DP-Master - Profibus DP-Slave - with switchable teminate resistors for Profibus

Omschrijving

Bestelnummer

3,5″-Panel-PLC with integrated CPU-VPC353V-0-03
3,5″-Panel-PLC with Profibus DP V0 Master and integrated CPU-VPC353V-DPM-03
3,5″-Panel-PLC with Profibus DP V0 Slave and integrated CPU-VPC353V-DPS-03
3,5″-Panel-PLC with integrated CPU-PPC353P-0-03
3,5″-Panel-PLC with Profibus DP V0 Master and integrated CPU-PPC353P-DPM-03
3,5″-Panel-PLC with Profibus DP V0 Slave and integrated CPU-PPC353P-DPS-03
vraag meer informatie over toepassingen aan via ons contactformulier.
