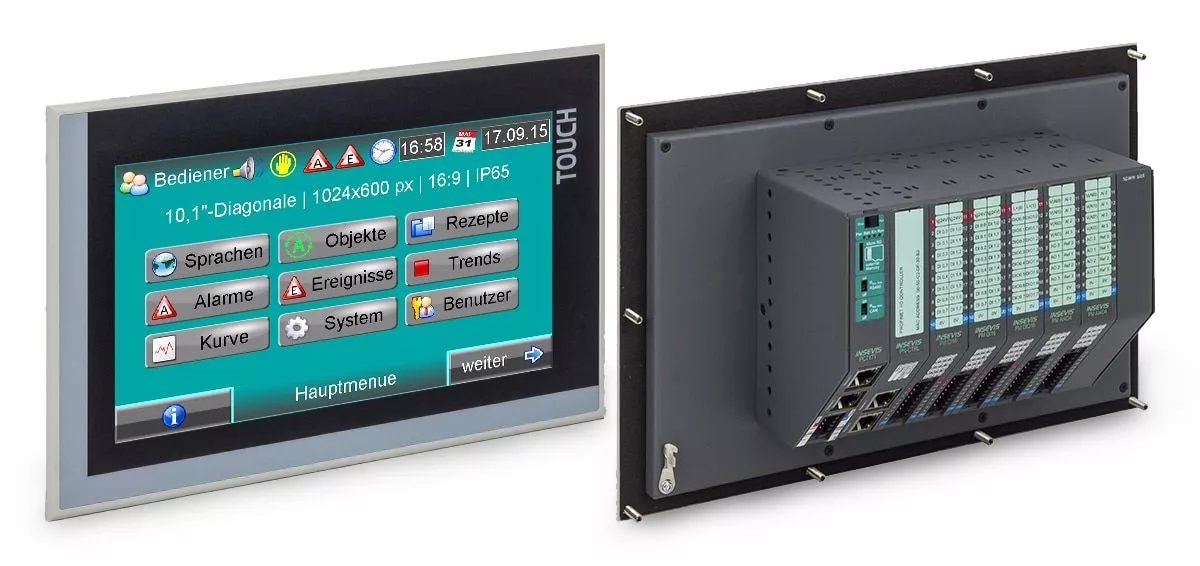

10,1″ – S7-Panel-PLC – with onboard periphery slots
These Panel-PLCs are only 95mm deep and contain up to 126 digital or 70 analog I/Os below the metal rear cover, what can be customized on each slot.
The integration of 7 slots for INSEVIS periphery modules into the PC1010T combines all the existing advantages with different modular periphery onboard.
By the range of interfaces of the CPU-T (Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profinet IO Controller) it is no problem to add more external periphery, if needed.
- Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
- IP-protection class: front panel IP65 and rear side IP41
- Operating temperature: -20°C ... +60°C (without condensation)
- Optional: PROFINET IO Controller
- up to 126 digital or 70 analog I/Os
| 10“ TFT display (1024x600 pixel) - resistive touch |
| Max. 6-Periphery modules can be integrated |
| RS232 with - free ASCII protocol |
| RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485 |
| 2x Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP |
| CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN |
| Micro-SD-slot - for SD-cards up to 8GByte |
| Run/Stop-switch |
| Status LEDs for Power, Battery, Error, Run |
| Profinet IO Controller in PC1017T-PNC-02 |
Description |
Order number |
| 10″-Panel-PLC with integrated CPU-T | PC1017T-0-02 |
| 10″-Panel-PLC with integrated Profinet IO Controller and CPU-T | PC1017-PNC-02 |
