eCon 2000 Full Gigabit Ethernet Basic PoE / PoE+ optional with Fiber Optic
eCon 2000 Full Gigabit Ethernet Basic PoE / PoE+ optional with Fiber Optic

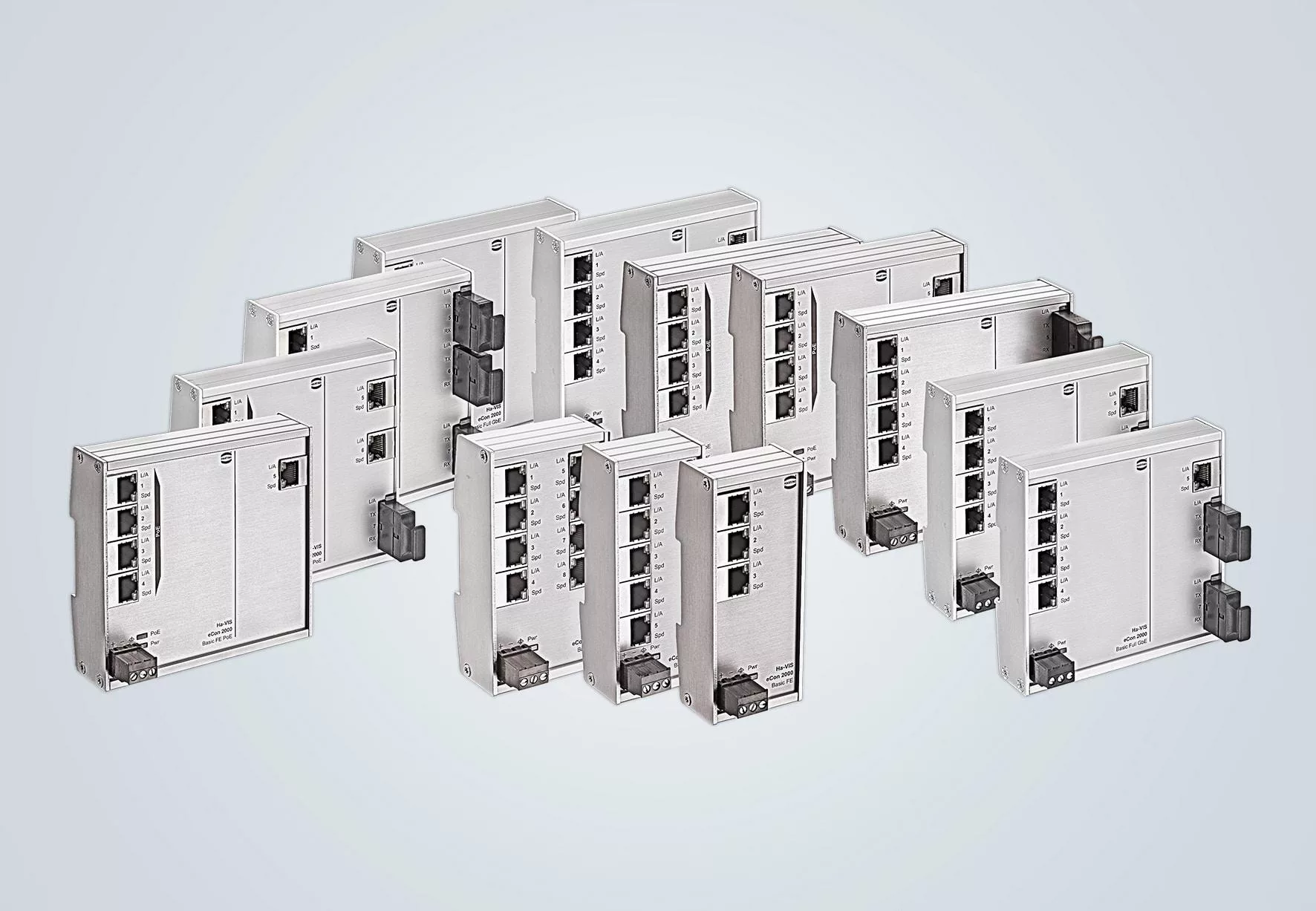

The Ha-VIS eCon 2000 Full Gigabit family of unmanaged Ethernet switches is equipped with up to 7 gigabit Ethernet ports and allow for cost-e cient and quick expansion and/or reconstruction of network infrastructures with high bandwidth requirements. In this, all variants support extra-long Ethernet frames (jumbo frames).
The switches work as power sourcing equipment (PSE) and are capable of simultaneously providing the full PoE output of 34.2 watts on up to four ports.
Due to the extremely flat design, these switches can be accommodated in installations where space is restricted towards the cable connection at the front.
The selection includes various combinations of variants with RJ45 and fibre optic ports. Automatic detection of the transmission rate (auto-negotiation) and of the wiring of the twisted pair data cable (auto-polarity and auto-MDI(X)) allow for simple plug and play.
All variants are available with the temperature ranges “Industrial” and “Commercial”.
- 4 to 7 Ethernet ports RJ45, FOC, and PoE / PoE+
- Unmanaged Plug and Play Ethernet switches for DIN rail assembly in control cabinets
- Energy supply of up to 4 terminal devices via PoE+ (137 watts) in ac- cordance with IEEE 802.3at
- Full Gigabit Ethernet non-blocking switch architecture according to IEEE 802.3
- Support of jumbo frames (10 kB)
- Variants with industrial temperature range of -40 °C ... +70 ° C
- Wide range power supply 24/48 VDC
- Surge protection and reverse polarity protection
- Minimum energy consumption due to energy-e cient Ethernet
Description |
Order number |
| Gbit & POE switches | |
| eCon 2050GBT-A-P - 5 RJ45 - Temp. -40 + 70°C -1Gbit - 4xPOE+ | 24024050020 |
| eCon 2050GB-A-P - 5 RJ45 - Temp. - 0 +55°C -1Gbit - 4xPOE+ | 24024050030 |
| eCon 2070GBT-A-P - 7 RJ45 - Temp. -40 + 70°C -1Gbit - 4xPOE+ | 24024070020 |
| eCon 2070GB-A-P - 7 RJ45 - Temp. - 0 +55°C -1Gbit - 4xPOE+ | 24024070030 |
| Gbit, POE & FO switches | |
| eCon 2043GBT-AD-P - 4 RJ45 - 3 FO MM(SC) - Temp. -40 +70°C -1Gbit - 4xPOE+ | 24024043120 |
| eCon 2043GB-AD-P - 4 RJ45 - 3 FO MM(SC) - Temp. - 0 +55°C -1Gbit - 4xPOE+ | 24024043130 |
| eCon 2043GBT-AF-P - 4 RJ45 - 3 FO SM(SC) - Temp. -40 +70°C -1Gbit - 4xPOE+ | 24024043220 |
| eCon 2043GB-AF-P - 4 RJ45 - 3 FO SM(SC) - Temp. - 0 +55°C -1Gbit - 4xPOE+ | 24024043230 |
| eCon 2052GBT-AD-P - 5 RJ45 - 2 FO MM(SC) - Temp. -40 +70°C -1Gbit - 4xPOE+ | 24024052120 |
| eCon 2052GB-AD-P - 5 RJ45 - 2 FO MM(SC) - Temp. - 0 +55°C -1Gbit - 4xPOE+ | 24024052130 |
| eCon 2052GBT-AF-P - 5 RJ45 - 2 FO SM(SC) - Temp. -40 +70°C -1Gbit - 4xPOE+ | 24024052220 |
| eCon 2052GB-AF-P - 5 RJ45 - 2 FO SM(SC) - Temp. - 0 +55°C -1Gbit - 4xPOE+ | 24024052230 |
| eCon 2061GBT-AD-P - 6 RJ45 - 1 FO MM(SC) - Temp. -40 +70°C -1Gbit - 4xPOE+ | 24024061120 |
| eCon 2061GB-AD-P - 6 RJ45 - 1 FO MM(SC) - Temp. - 0 +55°C -1Gbit - 4xPOE+ | 24024061130 |
| eCon 2061GBT-AF-P - 6 RJ45 - 1 FO SM(SC) - Temp. -40 +70°C -1Gbit - 4xPOE+ | 24024061220 |
| eCon 2061GB-AF-P - 6 RJ45 - 1 FO SM(SC) - Temp. - 0 +55°C -1Gbit - 4xPOE+ | 24024061230 |
