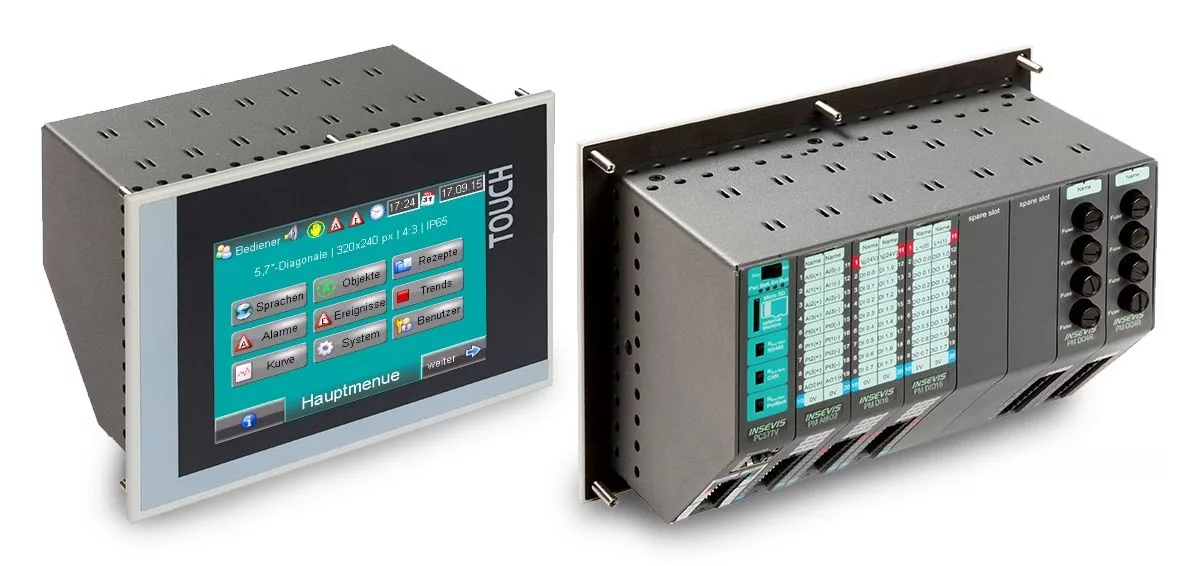

5,7″ – S7-Panel-PLC with onboard periphery slots

Workhorse, workaholic, powerseller, all these describe the unique position of this Panel-PLC with onbord I/O-slots. No other INSEVIS-Panel-PLC is sold that much and runs in so many different applications. Mostly equipped with up to 112 digital or 72 analog onboard-I/Os and labeled in customers design. Hundreds off applications became series with this device. It is the combination of German quality with an unique price performance ratio and the visualization, what is so easy to be created by VisuStage. Of course does this device contain Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP V0 (Master, Slave).

  • Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
  • IP-protection class: front panel IP65 and rear side IP41
  • Operating temperature: -20°C ... +60°C (without condensation)
  • Up to 112 digital or 72 analog onboard-I/Os
PC570V/P 5,7“ TFT (320x240 Pixel/ QVGA)
Max. 7-Periphery modules can be integrated
RS232 with - free ASCII-protocol
RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485
Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP
CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN
Micro-SD-slot - for SD-cards up to 8GByte
Run/Stop-switch
Status LEDs for Power, Battery, Error, Run
Optional configuration: (optional) - Profibus DP-Master - Profibus DP-Slave - with switchable terminate resistors for Profibus

Omschrijving

Bestelnummer

5,7″-Panel-PLC with integrated CPU-VPC577V-0-03
5,7″-Panel-PLC with integrated Profibus DP V0 Master and CPU-VPC577V-DPM-03
5,7″-Panel-PLC with integrated Profibus DP V0 Slave and CPU-VPC577V-DPS-03
5,7″-Panel-PLC with integrated CPU-PPC577P-0-03
5,7″-Panel-PLC with integrated Profibus DP V0 Master and CPU-PPC577P-DPM-03
5,7″-Panel-PLC with integrated Profibus DP V0 Slave and CPU-PPC577P-DPS-03
