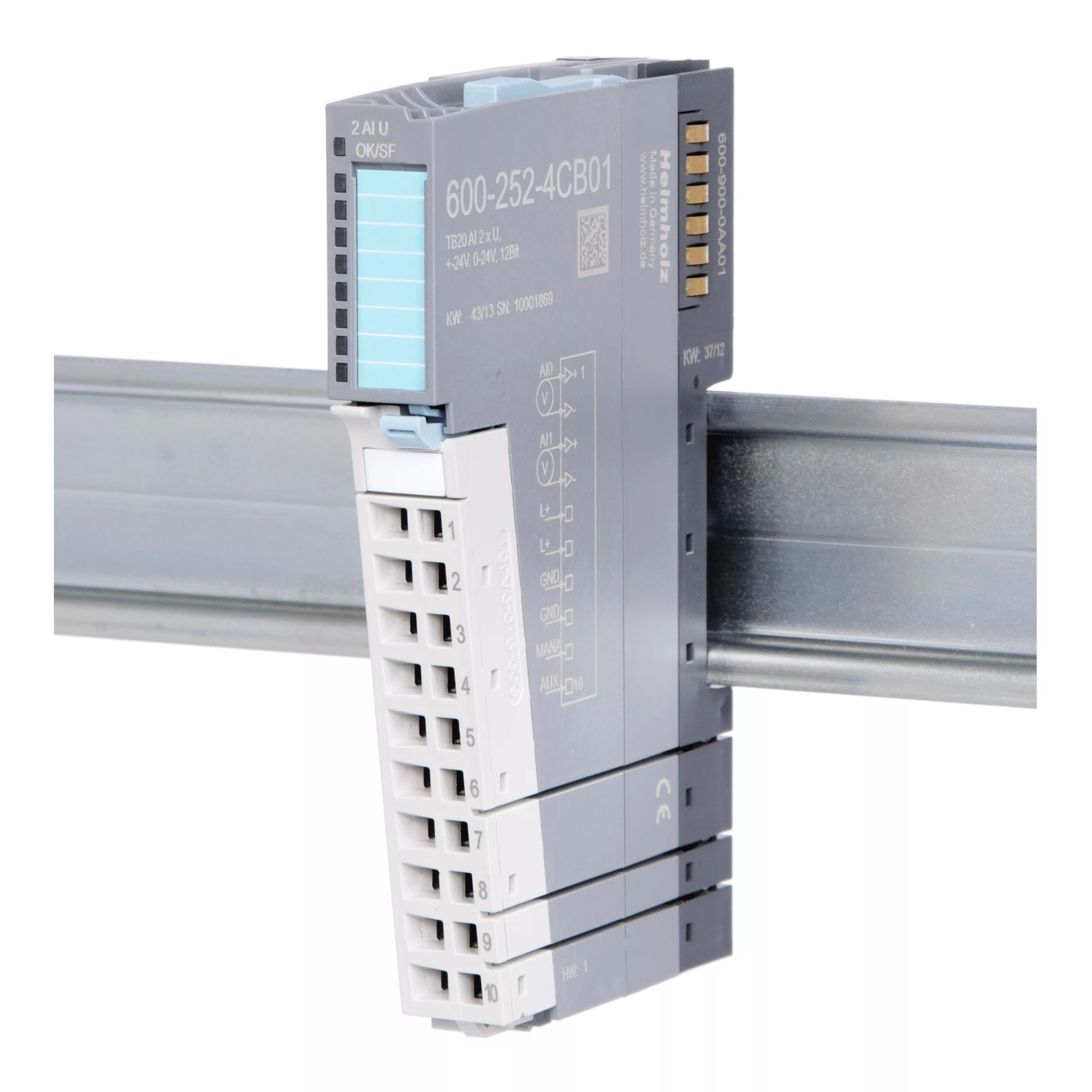

TB20 AI, 12 Bit, U, ±10V

Parameters for the module

  • Diagnostic alarm: On | Off
  • Overflow/underflow diagnosis: On | Off
  • Representation values: SIMATIC* S7 | SIMATIC* S5



Parameters for each channel

  • Wire break detection (only for 1 … 5 V): On | Off
  • Interference frequency suppression: None | 10 Hz | 50 Hz | 60 Hz | 400 Hz
  • Measuring ranges: Deactivated | 0 … 10 V | 1 … 5 V | ±10 V | ±5 V | ±2.5 V
  • Limit value alarms enabled: On | Off
  • Upper/lower limit: 16 bit analog value (±27648)
  • Measuring ranges 0 ... 10 V, 1 ... 5 V, ±10 V, ±5 V, ±2.5 V, individually configurable for each channel
  • Measurement resolution: 11 bit + sign
  • Diagnostic messages
  • Wire break detection (for 1 ... 5 V)
  • Limit value alarms for each channel
  • A bi-color LED (blue/red) indicates the module operating status and any malfunctions
Electrical isolation
from the backplane busYes
Between the channelsNo
InternalMax.95mA
Power dissipation Max. 0.7 W
Measuring ranges / load resistance0 … 10 V/30 kohm, 1 … 5 V/30 kohm, ±10 V/30 kohm, ±5 V/30 kohm, ±2,5 V/30 kohm
Measuring methodIntegration
Measurement resolution12 bits + sign
Interference frequency suppressionNone | 10 Hz | 50 Hz | 60 Hz | 400 Hz
Refresh rate / conversion rateNumber of active channels x conversion time +16 ms for wire break detection for each channel when activated.
The conversion time will depend on the interference frequency suppression:
None: 8 ms
400 Hz: 45 ms
60 Hz: 109 ms
50 Hz: 128 ms
10 Hz: 342 ms
DiagnosesUpper measuring range limit exceeded (overflow), lower measuring range limit fallen below (underflow), wire break (for 1 ... 5 V only), parameter assignment error
Process alarms Upper and lower limit per channel
Error limits
Operational error limit in the entire temperature range±0.5 % relative to the nominal range
Basic error limit at 25 °C ±0.3 % relative to the nominal range
Temperature error±0.005 %/K relative to the nominal range
Linearity error ±0.05 %/K relative to the nominal range
Repeating accuracy in steady state at 25 °C±0.05 %/K relative to the nominal range
Parameter configuration length22 bytes
General error indicatorRed LED
Hot-swap capableYes

Omschrijving

Bestelnummer

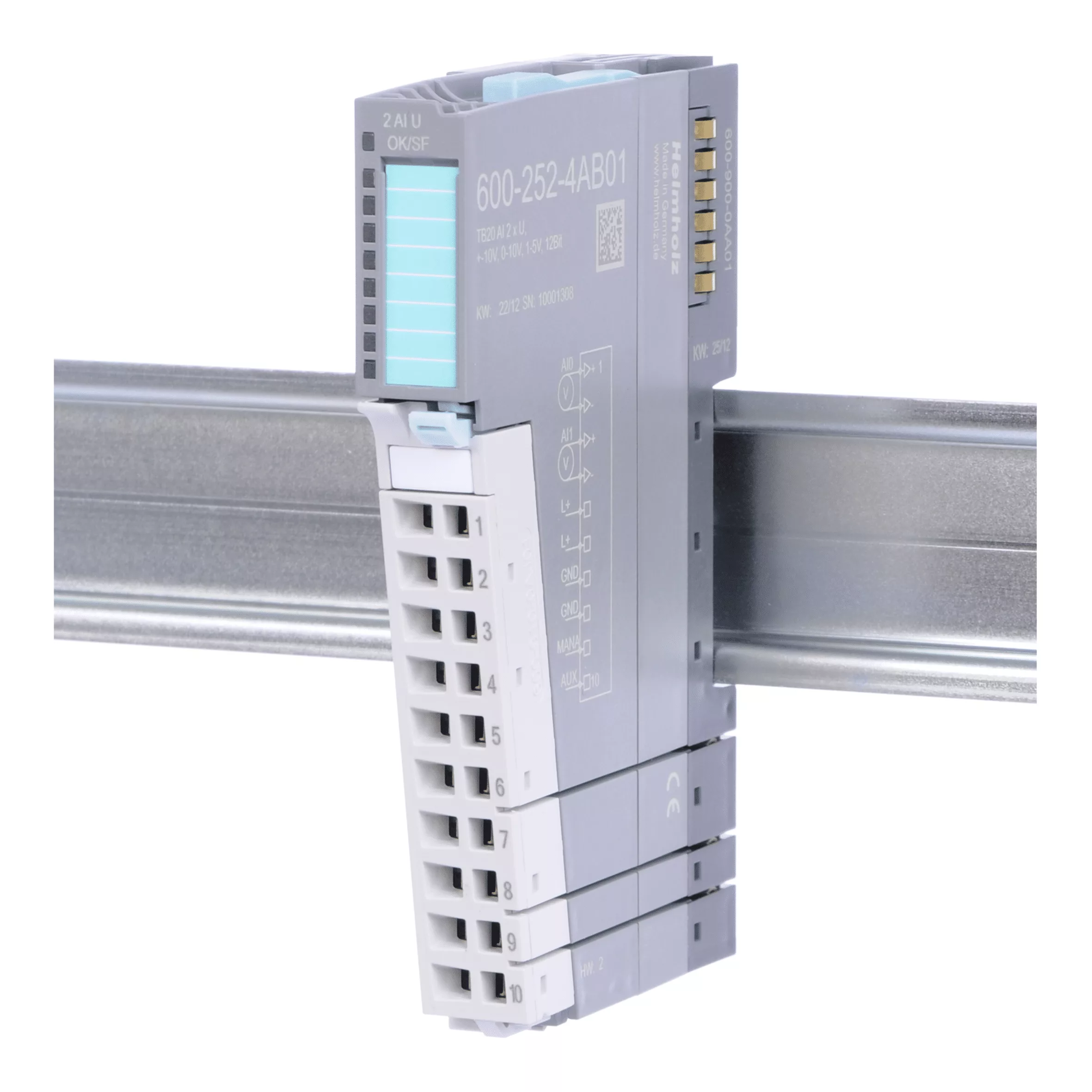

AI 2x U, ±10 V, 0-10 V, 1-5 V, 12 Bit600-252-4AB01
AI 4x U, ±10 V, 0-10 V, 1-5 V, 12 Bit600-252-4AD01
