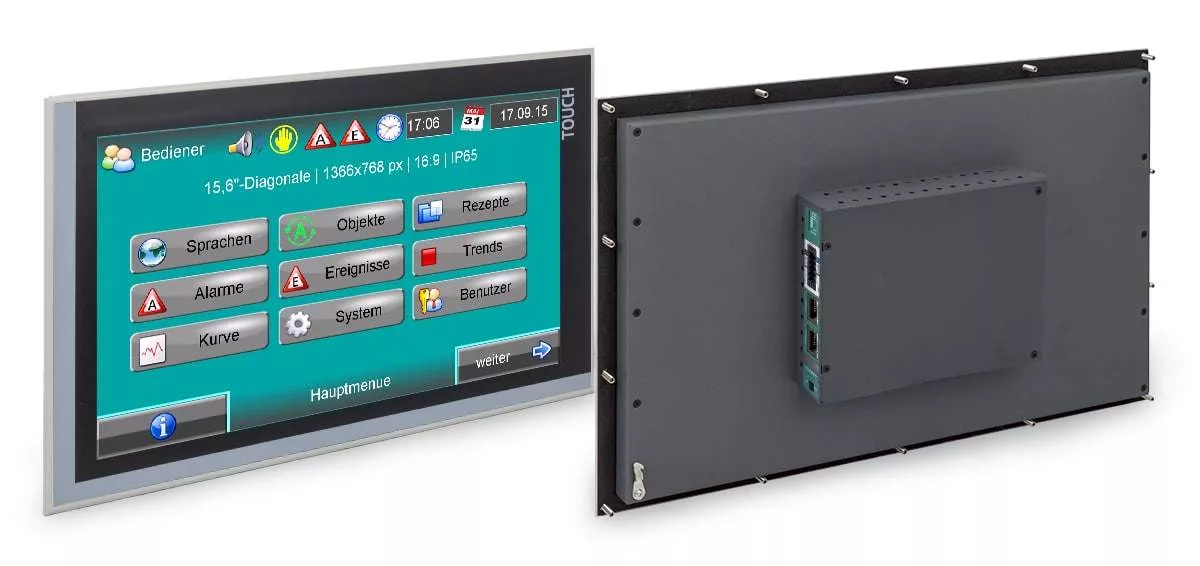

15,6″ – S7-Panel-PLC – flat / no periphery slots onboard
15,6″ – S7-Panel-PLC – flat / no periphery slots onboard
The largest touchpanel with 1366x768pixel is one of the most sold large Panel-PLCs of INSEVIS and is used in medium and large automation projects.
Do not forget: all the CPU-T -interfaces with the 2port-Ethernet plugs and the optional Profinet-IO Controller, all this functions are realized in a 55mm deep device.
Now with 2 single devices; one with Profinet, one without.
Both with web- and VNC-server included.
Once more the INSEVIS- engineers show their German engineering.
- Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
- IP-protection class: front panel IP65 and rear side IP41
- Operating temperature: -20°C ... +60°C (without condensation)
- Optional: PROFINET IO Controller
| 15,6“ TFT display (1366x768 pixel) - resistive touch |
| RS232 with - free ASCII protocol |
| RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485 |
| 2x Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP |
| CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN |
| Micro-SD-slot - for SD-cards up to 8GByte |
| Run/Stop-switch |
| Status LEDs for Power, Battery, Error, Run |
| Profinet IO Controller in PC1560T-PNC-02 |
Description |
Order number |
| 15,6″-Panel-PLC with integrated CPU-T | PC1560T-0-03 |
| 15,6″-Panel-PLC with integrated Profinet IO Controller and CPU-T | PC1560T-PNC-02 |
