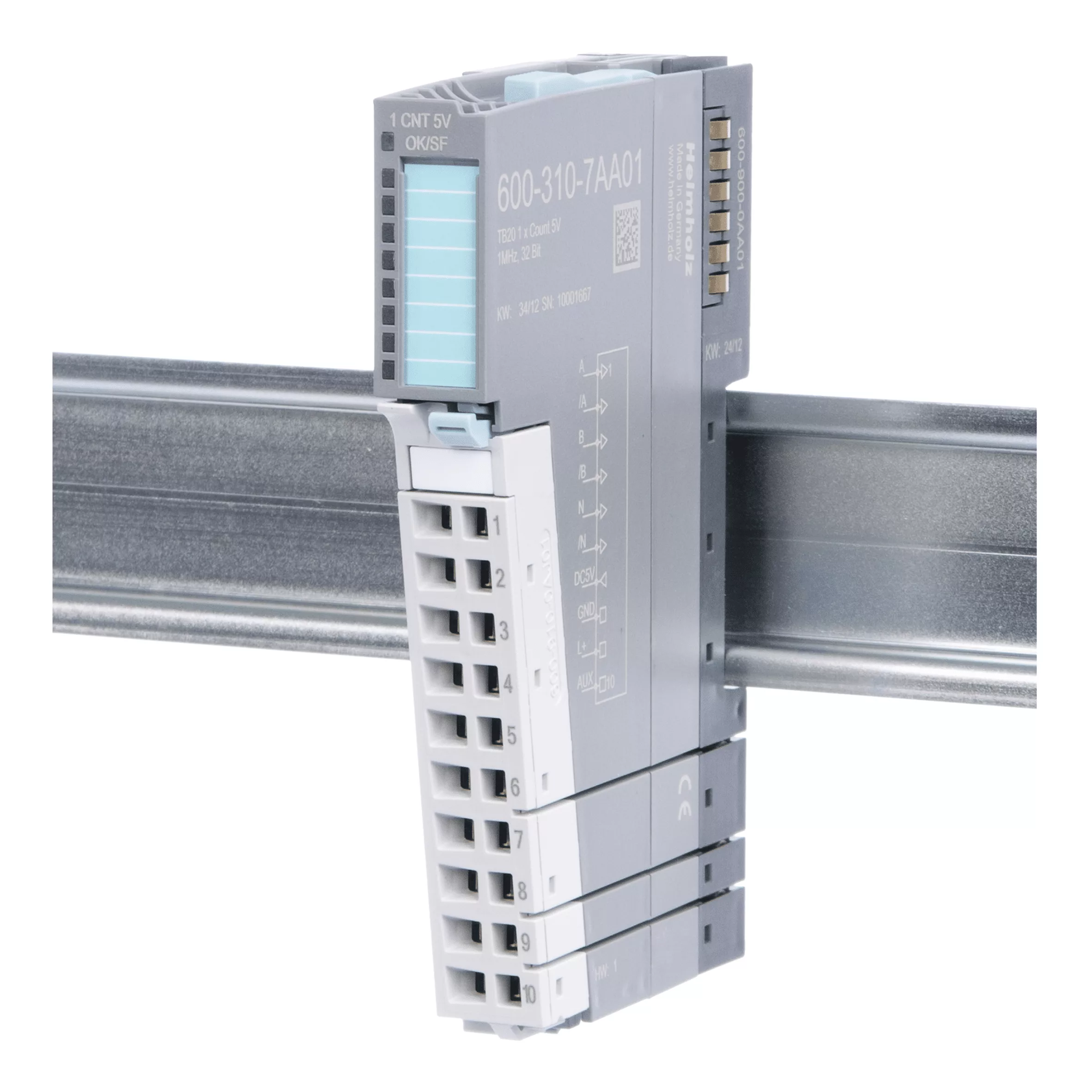

1x Counter 5 V (RS422), 4 MHz, 32 Bit
1x Counter 5 V (RS422), 4 MHz, 32 Bit
Counters are used to detect pulses that are faster than a controller?s cycles, i.e., signals that the controller will be unable to detect properly and that therefore need to be pre-processed.
The counter module detects the edges of 24 V signals as pulses. The impulses can be counted or converted into a frequency, rotational speed, or period.?The counter module features an additional 24 V input and a 24 V output for a direct response to start pulses and to quick system state changes.
Erfassungsmethode
- Pulse & direction
- Rotary encoder with double evaluation
- Rotary encoder with quadruple evaluation
Counting methods
- Continuous counting
- Once-only counting
- Periodic counting
Measuring mode
- Frequency measurement
- Rotational speed measurement
- Period measurement
Synchronization
- Off
- Only-once
- Periodic
- 32-bit counter
- Up to 4 MHz (4-fold evaluation)
- Accommodates 5 V incremental encoders (RS-422)
- Index input
- 5 V supply for sensors
- Filters: 50 kHz | 100 kHz | 500 kHz | 1 MHz
- Limits for counter and measured readings
- Refresh rate / averaging time for measuring mode
Vraag direct een offerte aan!
1x Counter 5 V (RS422), 4 MHz, 32 Bit
Neem contact op voor de actuele levertijden.
| Input voltage | 24 V | |
| Electrical isolation | ||
| from the backplane bus | Yes | |
| Between the channels | No | |
| Current draw | ||
| External | Max. 50mA | |
| Internal | Max. 86 mA | |
| Sensor supply | 5V ±10 %, 190 mA | |
| Power dissipation | 1 W | |
| Parameter configuration length | 15 bytes | |
| Number of counters | 1 | |
| Counter bit depth | 32 bits | |
| Input frequency | max. 1 MHz | |
| Counting frequency per channel | Max. 4 MHz (for X4 evaluation) | |
| Hot-swap capable | Yes |
Description |
Order number |
| 1x Counter 5 V (RS422), 4 MHz, 32 Bit600-310-7AA01 |
vraag meer informatie over toepassingen aan via ons contactformulier.
