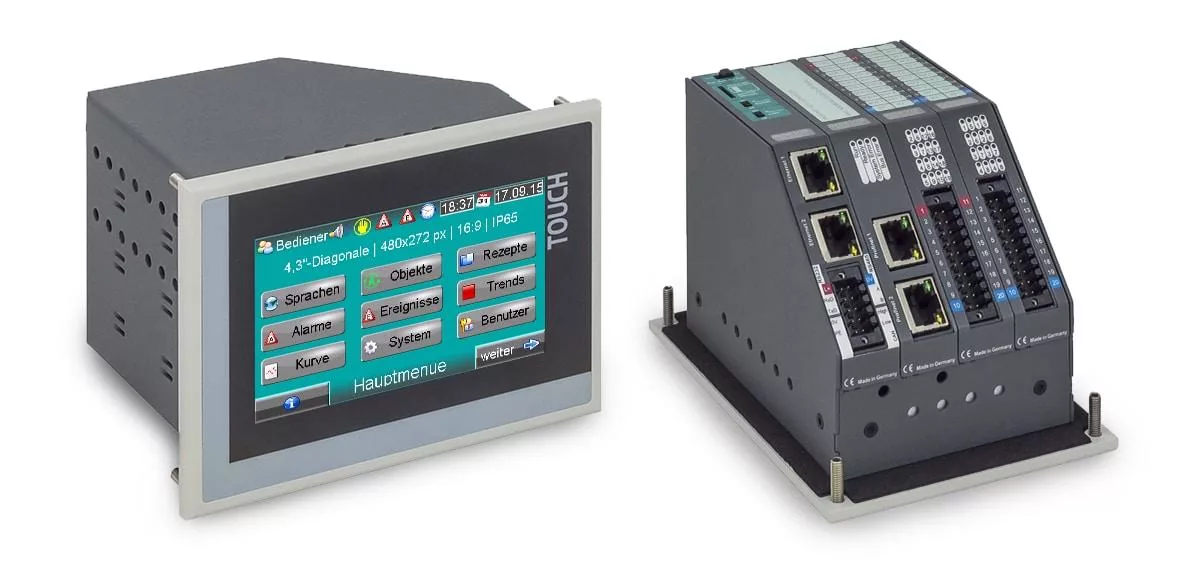

4,3″ – S7-Panel-PLC – with onboard periphery slots

4,3″ – S7-Panel-PLC – with onboard periphery slots

These devices combine all in one:
a brilliant 480x272px touch panel, an S7-PLC with 1MB work- and 8MB load memory,
3 slots for different INSEVIS- periphery modules for up to 48 digital and 30 analog I/Os
and multiple interfaces as Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profinet IO Controller.

Always remote accessible by RemoteStage and always with the high class design of Generation II.

This small device is only 90mm deep, no plastic, just metal only.

  • Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
  • IP-protection class: front panel IP65 and rear side IP41
  • Operating temperature: -20°C ... +60°C (without condensation)
  • Optional: PROFINET IO Controller
  • Up to 48 digital or 30 analog I/Os fits in the housing
4,3“ TFT display (480x272 pixel) - resistive touch
Max. 2-Periphery modules can be integrated
RS232 with - free ASCII protocol
RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485
2x Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP
CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN
Micro-SD-slot - for SD-cards up to 8GByte
Status LEDs for Power, Battery, Error, Run
Profinet IO Controller in PC430T-PNC-02



4,3″-Panel-PLC with integrated CPU-TPC433T-0-03
4,3″-Panel-PLC with integrated Profinet IO Controller and CPU-TPC433T-PNC-02
