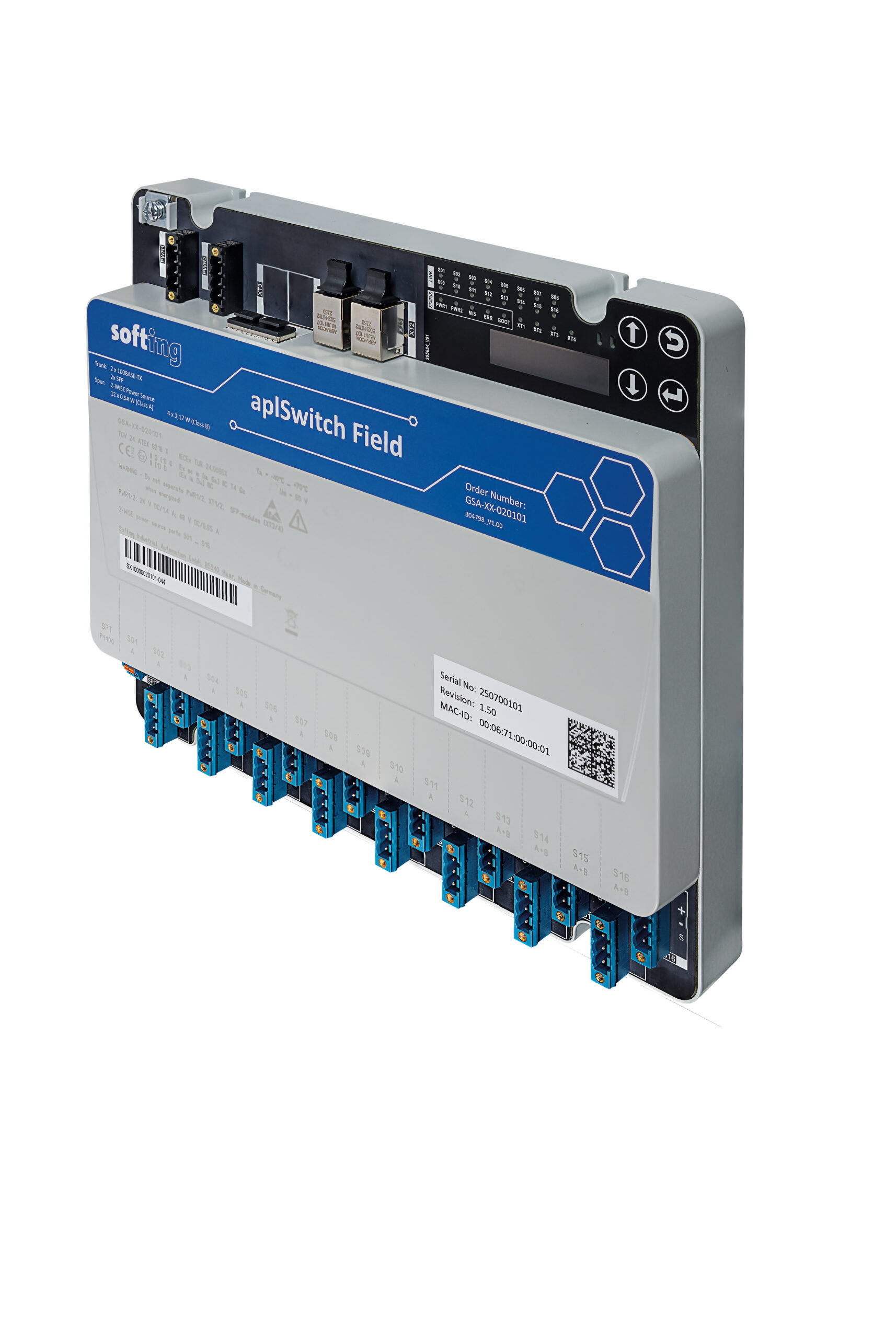

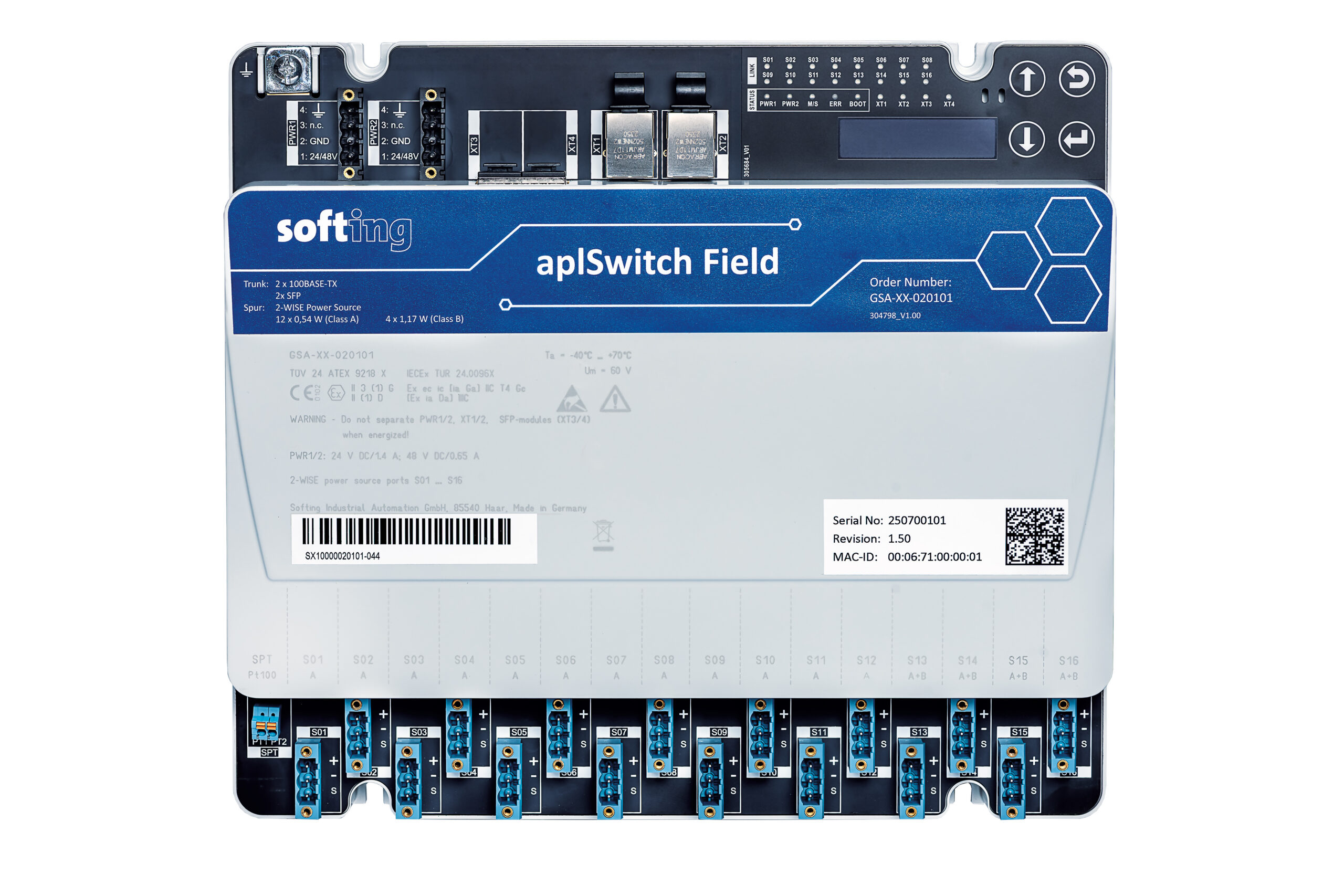

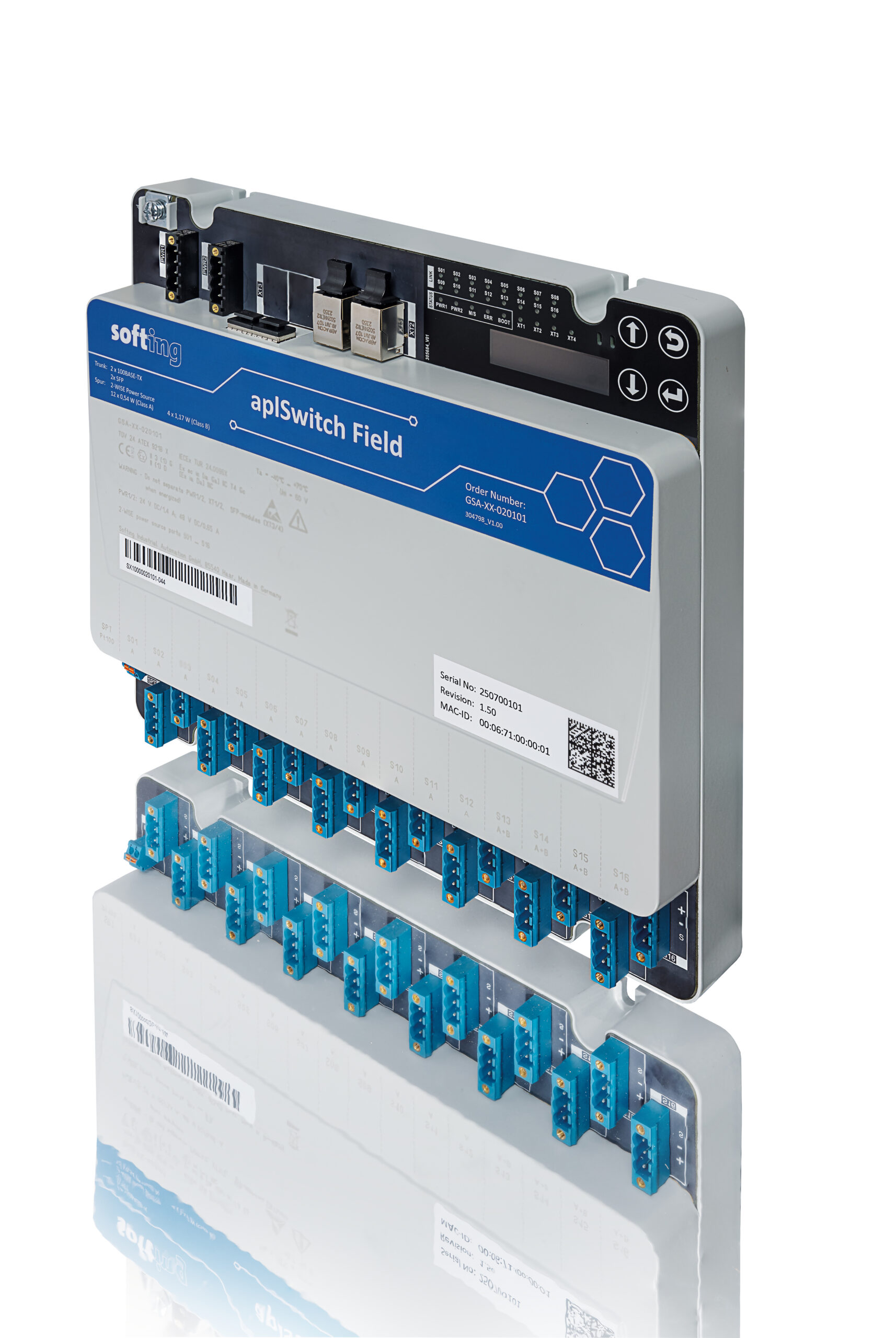

aplSwitch Field

16 port Ethernet-APL Field Switch for Use in Zone 2

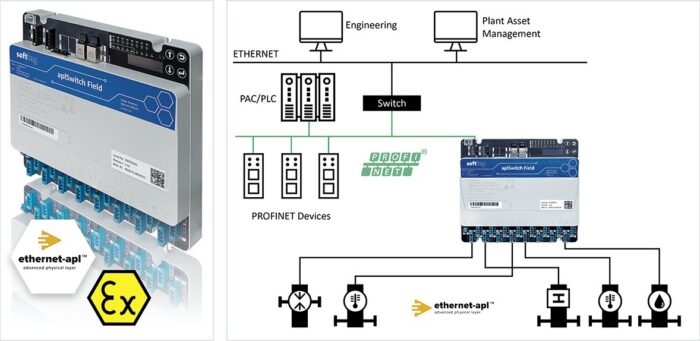

aplSwitch Field allows the transparent connection of intrinsically safe “2-WISE” Ethernet-APL field devices to higher-level Industrial Ethernet networks and supply the field devices with intrinsically safe power. The aplSwitch Field can be installed in Zone 2 and integrates smoothly into existing industrial automation systems.

Overview

Ethernet APL for Seamless and Reliable Integration into DCS and AMS Systems

  • 16 Ethernet APL spur “2-WISE” ports
  • PROFINET enabled switch with support for PROFINET MRP ring topology
  • Supports all major DCS and AMS systems like Emerson, Siemens, ABB and others
  • Ensures stable networks via ingress/egress support

Extensive diagnostics

  • Integrated PROFINET diagnostic functions for easy commission, maintenance and trouble shooting
  • Local display for instant commissioning diagnostics
  • Enhanced FDI support for easy device integration and parametrization

Allows Installation in Hazardous Areas

  • All product variants can be installed in Ex zone 2
  • Field Devices located in Ex zone 0 and 1 can be connected to the switch
  • Rugged and robust housing for field installation IP30

PowerClass A and B support for APL Field devices

  • Allows usage of more complex/power intensive field devices
  • APL power class B supports up to 1,17 W per device on 4 ports
  • Futureproof since no limitation to power class A with 0,54 W
  • 16 Ethernet APL spur "2-WISE" ports
  • PROFINET enabled switch with support for PROFINET MRP ring topology
  • Ensures stable networks via ingress/egress support
  • All product variants can be installed in Ex zone 2
  • Field Devices located in Ex zone 0 and 1 can be connected to the switch
  • Rugged and robust housing for field installation IP30
  • APL power class B supports up to 1,17 W per device on 4 ports
  • Futureproof since no limitation to power class A with 0,54 W
Field Device Interface
spurs versionEthernet-APL(10BASE-T1L)
Number of ports spurs16
Characteristic spurs2-WISE power source
Transfer rate spurs10Mbits/s full duplex
Power class A,B
Device specific data
ProtocolsPROFINET
Characteristic protocol Conformance class B
Redundancy S2
MRP
dynamic reconfiguration
network load class III
pruning
rate limiter

Description

Order number

GSL-XX-020102 saplSwitch Field with spring clamp terminals
GSL-XX-020103aplSwitch Field with screw terminal

Manuals

aplSwitch Field | User Guide Versie: V1.50-EN/2025-09-23

Technical documentation

aplSwitch Field | Data Sheet Versie: 250910_120
