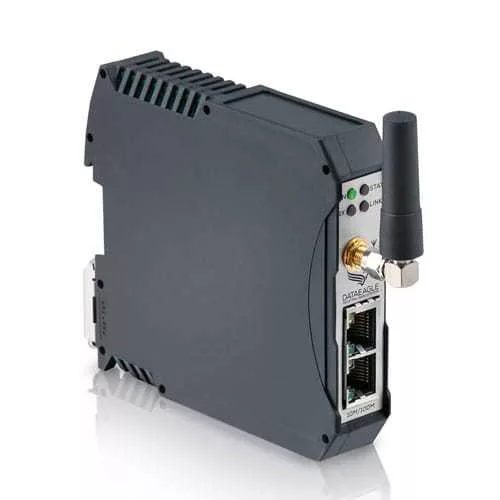

DATAEAGLE Compact 2730

The most widely used application for Bluetooth up to now was and is the connection to
smartphones, tablets or PCs. However, in control engineering and automation technology also
demand for wireless data transmission of Bluetooth sensors into the control unit is increasing
meanwhile.

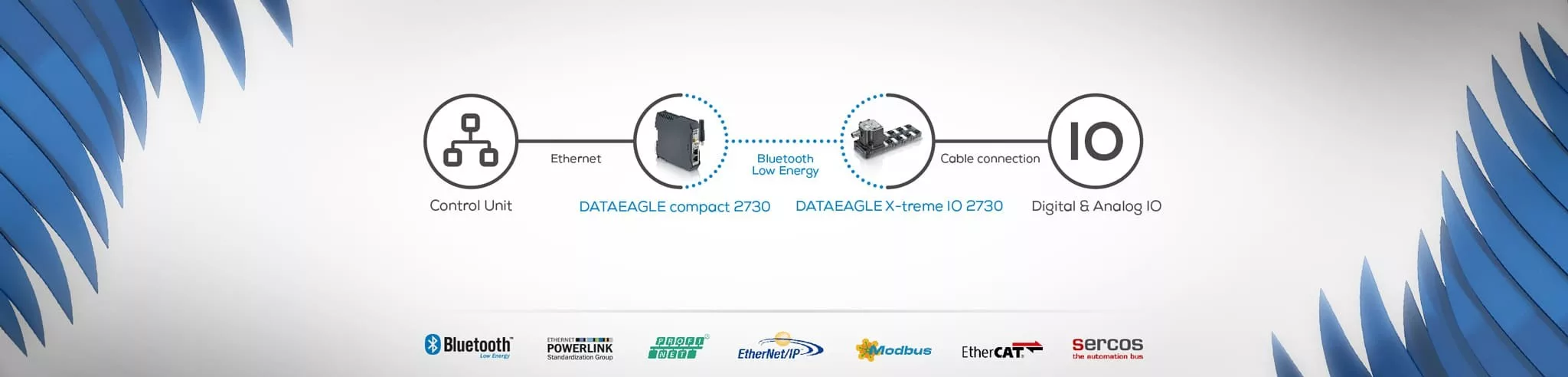

Integration of the Bluetooth Low Energy interface into the radio system DATAEAGLE
enables to satisfy this wish and to transmit data from Bluetooth sensors directly into the control unit via fieldbuses such as e.g. PROFINET and to process there. Using the radio system
DATAEAGLE compact 2730 the user can therefore take advantage of wireless sensors for example
at machine parts that are difficult to access; on the other hand he can transmit sensor data to the control unit via Bluetooth Low Energy in a cost-effective and safe manner.

The resulting advantage is that data is capable of being directly  without intermediate stop such as e.g. tablets in the hand of persons ? sent to the control unit for required processing. This means time saving, safety and cost reduction at the same time.

  • Plug & Play: All sensors with Bluetooth Low Energy interface can be used
  • Flexibility: The respective used sensor protocol is capable of being parameterized individually
  • High range: Safe data transmission via up to 70 meters
  • Space-saving: The IP20 gateway enables direct installation in the control cabinet
  • Interface into the control unit: Ethernet-based fieldbus protocols integrated
  • Wireless Sensor Network: Simultaneous data exchange for up to eight sensors per gateway
GENERAL
Voltage supply24 V DC
Connection voltage supplyTerminal clamps
Power consumption200 mA
FixingDIN rail mounting
Protection classIP 20
Temperature range-20…+60 °C
ConformityCE, FCC
Weight130 gr
Width22,5 mm
height99 mm
Depth114,5 mm
ColorBlack
RADIO TECHNOLOGY
Frequency2,4 GHz Bluetooth (Bluetooth 4.2)
Transmitting power4 dBm
Rangeup to 70 m
INTERFACE
IO InterfaceRJ45
2-port Switchyes
FieldbusinterfacePROFINET
PROFIBUS
Ethernet/IP
ModbusTCP
EtherCAT

Omschrijving

Bestelnummer

DATAEAGLE Compact 273011179
Option PROFINET IO11180
Option PROFIBUS11179_DP
Option EtherCAT12000
Option Ethernet/IP12001
Option ModbusTCP12002

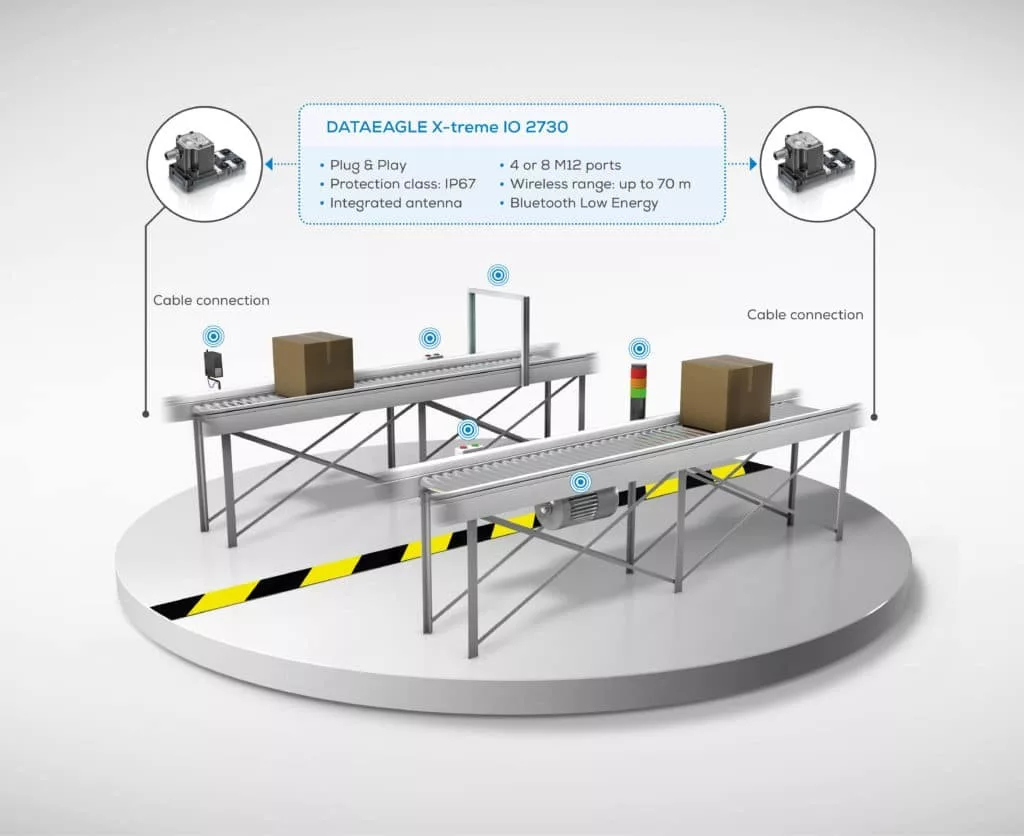

DATAEAGLE X-treme IO 2730 8DI12100
DATAEAGLE X-treme IO 2730 8DO12101
DATAEAGLE X-treme IO 2730 4DI 4DO12102
DATAEAGLE X-treme IO 2730 4AI 4AO 4-20mA12103
DATAEAGLE X-treme IO 2730 4AI 4AO 0-10V12104
DATAEAGLE X-treme IO 2730 8AI 4-20mA12105
DATAEAGLE X-treme IO 2730 8AI 0-10V12106
