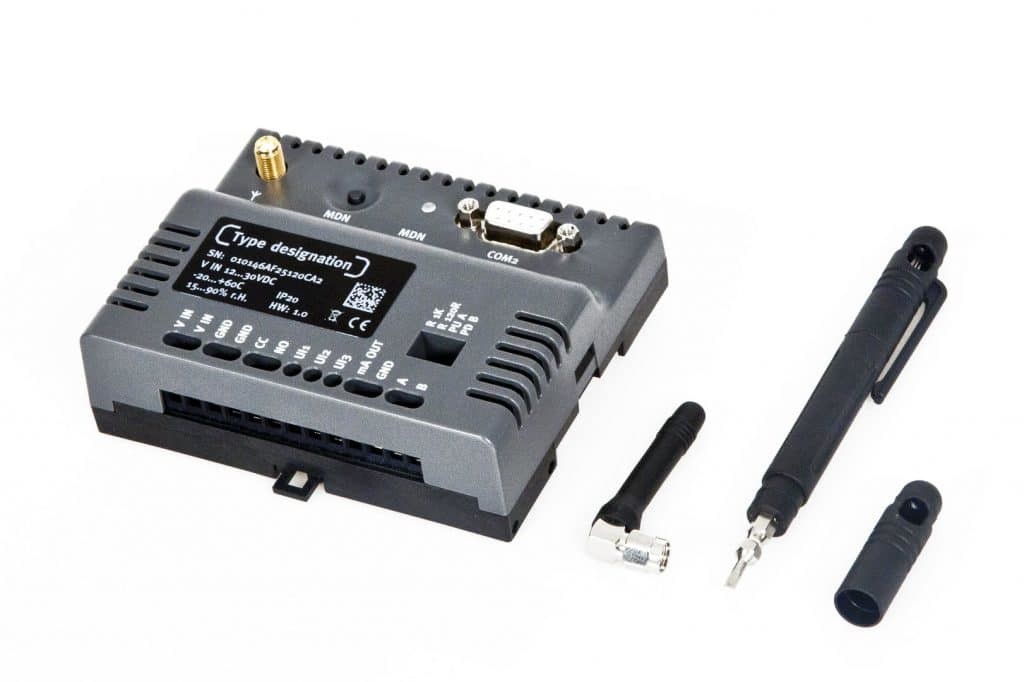

IoT Edge Gateway DATAEAGLE 7011

Sensor signals can now be reliably transmitted to the cloud by radio using DATAEAGLE 7000 series. DATAEAGLE 7010 measures and controls sensors. Analog and digital sensors can be connected to the univerals inputs. Adding to the versatility of the DATAEAGLE 7010 series cloud we offer numerous options like RS232 or RS 485 interface as well as mA- and relais-outputs for remote control.

The gateway itself is designed for quick commissioning:
It can be programmed remotely through an online portal (Device Cloud), that has predefined parameter settings to transmit sensor values. The DATAEAGLE 7010er series contains an integrated battery which allows operating in case of the loss of AC power.

3 universal input ports (4-20 mA or 0-10 V or digital)
2 serial ports RS485 and RS 232 for a digital sensor
1 analog output port and 1 Relais output
Integrated eSIM-card with worldwide roaming functionality

Vraag direct een offerte aan!

IoT Edge Gateway DATAEAGLE 7011

Snel leverbaar!

Meer informatie aanvragen

General
Voltage supply	12 -30 V DC
Connection voltage supply	Terminal clamps
Power consumption	Typ. 1W, max. 3W
Fixing	DIN rail mounting
Protection class	IP 20
Temperature range	-20…+60 °C
Conformity	CE
Weight	150 gr
Width	104 mm
Height	85 mm
Depth	32 mm
Color	Grey
RADIO TECHNOLOGY
Frequency	GSM/GPRS Quad-Band
SIm	integrated SIM-Chip
Antenna Connection	SMA - 50 Ohm
INTERFACE
Inputs	3 x analog or digital - 0... 20 mA, 4... 20 mA 0... 2 V, 0... 10 V, PWM, Frequency, Digital Day- / Interval Counter
Outputs	1 x relais, 1 x Analog output (no galvanic isolation)
Modbus	1 x RS485 (switchable Master/ Slave) Modi: RTU, ASCII, 64 in-, 64 outputchannels
Serial	1 x RS232 for connection of digital sensor, Modi: ASCII, 64 in-, 64 output channels
