DP/DP coupler

The maximum size of the transmitted data is 244 bytes of input data and 244 bytes of output data. The DP/DP coupler is configured in the S7 software or with a GSD file.

  • Exchange of up to 244 bytes of input and 244 bytes of output data between two PROFIBUS networks
  • Redundant power supply
  • Electrical isolation between the PROFIBUS networks
  • Setting of the PROFIBUS addresses using DIP switches or software
  • PROFIBUS-DP up to 12 Mbps
PROFIBUS interface
Transmission rate9.6 ... 12 Mbps
I/O image sizemax. 244 bytes of input / 244 bytes of output data
ConnectionSUB-D male connector, 9-pin
Voltage supply24 V DC, 18–30 V DC
Current drawtyp. 200 mA with DC 24 V

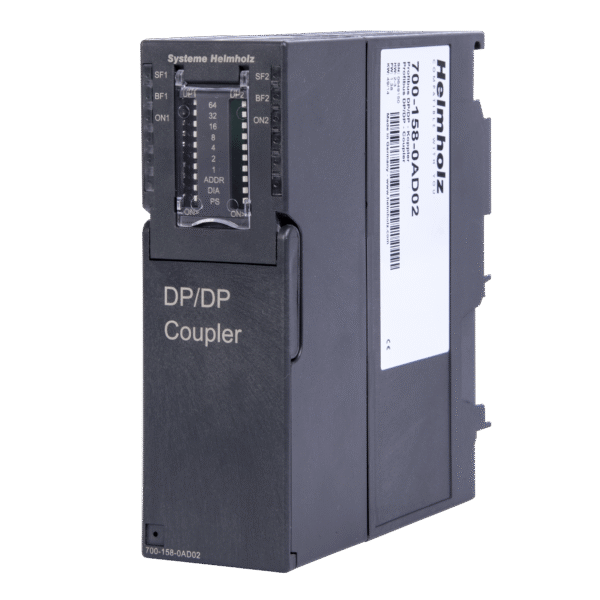

DP/DP coupler700-158-0AD02
