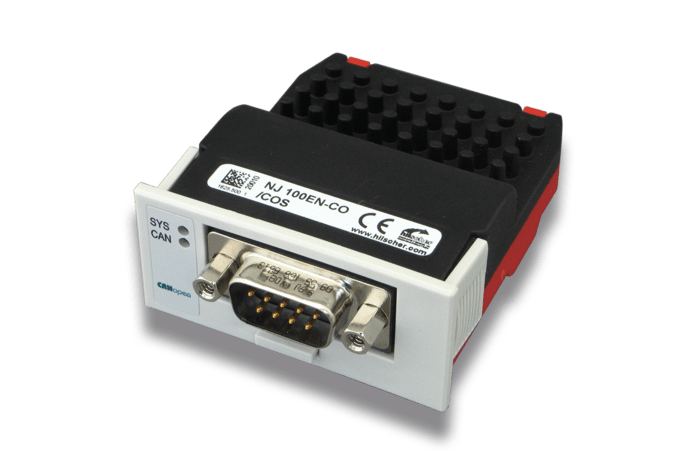

Exchangeable Module PCI Express - CANopen

Price on request

Lead time on requestOrder number 1625.500/COM

Please contact us for up-to-date price and delivery information.

Ask for price and lead time

Overview

The universal Exchangeable Module netJACK with its PCI Express interface addresses in particular the embedded market with high-performance CPUs like Intel Atom®. Alternatively, there are versions with a traditional dual-port memory and a fast serial SPI interface.

All variants have the compact design of a closed IP40 module which can be mounted without using tools. Additional costs for the exchangeable module will not incur because connector and mounting rails are designed as contact areas or cut-outs on the host system.

netJACK can be mounted quickly and easily – right before shipment or later by the end customer.

With netJACK, customers can realize the full range of communication solutions, e. g. for drives, HMI systems, or ident systems. Additional functions, e. g. soft-PLC, visualization or applications developed by the customer are possible, too. For customer-specific requirements, Hilscher offers a cost-optimized Design and Production Service.

Due to the Hilscher network controller netX, a 10-year delivery guarantee is granted.

  • Universal CANopen interface (Master or Slave) in the closed IP40 housing
  • Host connection via PCI Express
  • Simple plug-in installation without tools
  • Master or slave on the same hardware
  • No additional components required for mounting and connecting to the carrier board

Specifications

ProductPart number;1625.500
Brief descriptionExchangeable Module PCI Express
Communication controllernetX;netX 100
Integrated MemoryRAM;8 MB SDRAM
FLASH4 MB serial Flash EPROM
Power supply and currentSupply voltage;+3.3 V ± 5 % DC
Typical/maximum current590 mA/620 mA
Typical power consumption1,95 W (at 590 mA)
System interfaceBus type;PCI-Express, One-Lane-Port
Connector type40 pin connector (SAMTEC FSI-120-03-G-D-AB)
Pin distance/pin width0.45 mm/0.55 mm
Transmission rate1,5 GHz
Communication interfaceCommunication standard (protocol);CANopen
Interface typeISO 11898, potential free
ConnectorD-Sub, 9-pin
Diagnostic interfaceType;USB
ConnectorSignal at host interface. Available only if integrated in host system
DisplayDisplay;SYS System Status, green: RUN, yellow: RDY
COM0, COM1 Communication status, both green/red
CAN Communication status, green: STA, red: ERR
EnvironmentAmbient temperature range for operation;-20 °C … +65 °C
DeviceDimensions (L x W x H); Length: 68.2 mm / 60 mm (with / without D-Sub plug), Width: 53.4 mm (at front panel) / 50.4 mm (body), Height : 25.2 mm (at front panel) / 19.2 mm (body)
Weight<80 g
Housingclosed module
Protection classIP40
Mounting/InstallationVia milled footprint holes in the carrier board and retaining brackets. No mounting accessories required.
Mounting/pulling cyclesmax. 10
ConfigurationConfiguration software;SYCON.net
ConformityRoHS;yes
Reachyes
UL certificationUL type;cURus
UL fileE334100
Conformance with EMC directivesCE Sign;yes

Ordering

Every version with its price and availability. Prices exclude VAT.

Order numberDescriptionPriceAvailabilityAction
1625.500/COM Exchangeable Module PCI Express - CANopen, NJ 100EN-CO On request Lead time on request Ask for a quote 1625.500/COM

Downloads

Flyers
DocumentVersionFormatDownload
Hilscher embedded solution brochure2013-10PDF Download Hilscher embedded solution brochure
Manuals
DocumentVersionFormatDownload
netJACK design guideV07PDF Download netJACK design guide
netJACK user manualV08PDF Download netJACK user manual
Technical documentation
DocumentVersionFormatDownload
netJACK datasheet10_2022PDF Download netJACK datasheet
