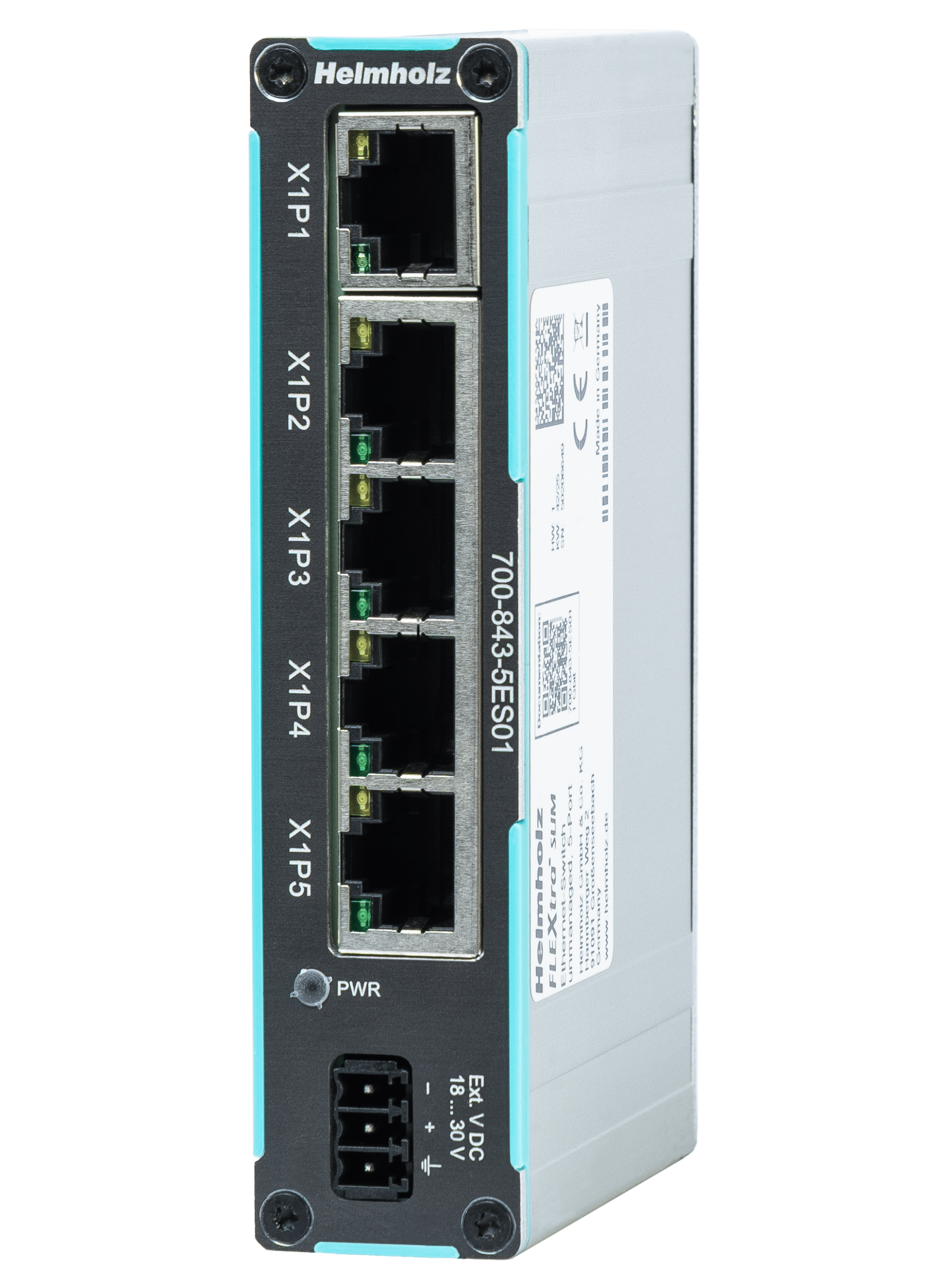

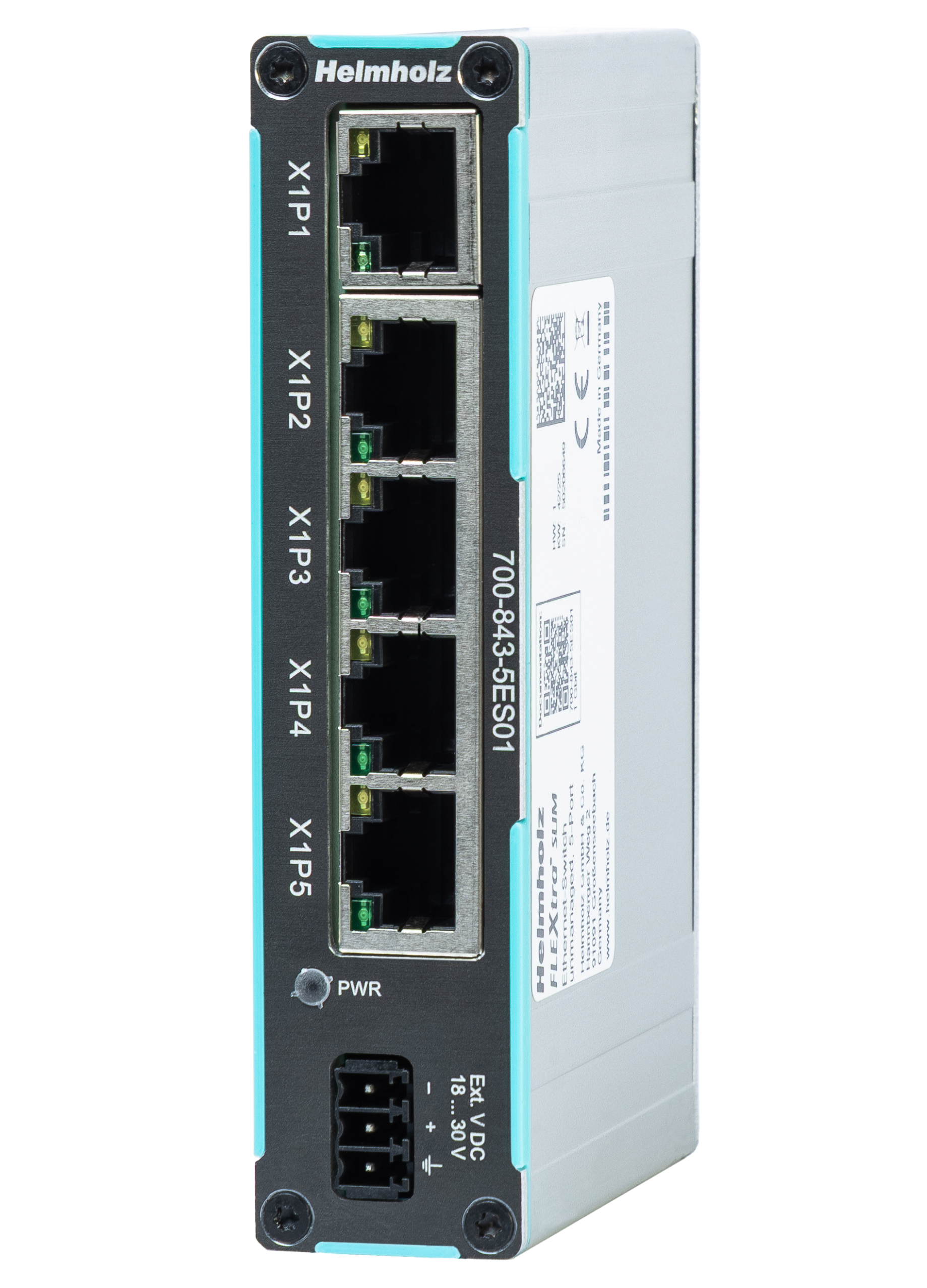

FLEXtra SLIM Ethernet-Switch, unmanaged 5x RJ45 1 Gbit

Name: FLEXtra SLIM Ethernet-Switch, unmanaged 5x RJ45 1 Gbit
Brand: Helmholz
SKU: 700-843-5ES01
Price: 198.64 EUR
Availability: InStock

€198,64

Quickly available!

Request more information

The FLEXtra SLIM switch is suitable for DIN rail mounting and is very easy to integrate into your network. Once plugged in, it is immediately ready for operation thanks to the simple plug & play installation. No configuration is necessary.

The 5-port unmanaged Ethernet switch is suitable for PROFINET networks. The LLPD (neighbourhood detection) and PTCP (time synchronisation) functions are handled correctly with the switch in accordance with the PROFINET standard. The unmanaged Ethernet switch therefore complies with PROFINET Conformance Class A. Connect up to 5 Ethernet devices at 10, 100 or 1000 Mbit/s.

Store-and-Forward architecture
10Base-T/100Base-TX/1000Base-T
Full-/Half-Duplex
Autonegotiation
Auto MDI/MDI-X (IEEE 802.3u Auto crossover support)
LLDP & PTCP Delay-Traffic blocking (for PROFINET networks)
PROFINET Conformance Class A
Qos-Priority Queues: 8
4k MAC addres lokup table
Maximum Frame Size: 9216 bytes

General information
Order number	700-843-5ES01
Article name	FLEXtra SLIM Ethernet-Switch, unmanged, 5-port, 1Gbit
Scope of delivery	Ethernet 5-port switch with power supply plug
Dimensions (DxWxH)	65 x 25 x 109 mm
Weight	Approx. 165g
LAN interface
Number	5
Connetion	RJ45
Transmission rate	10/100/1000 Mbit/s
Type	10Base-T/100Base-TX/1000Base-T
	Full-/Half-Duplex (Autonegotiation)
	Auto MDI/MDI-X
	IEEE Autocrossover
	PROFINET Conformance Class A
Status indicator
Power display	1 LED
Ethernet-Status	10 LEDs
Power supply
Voltage supply	24 V DC (18...30 V DC)
Current draw	max. 125 mA at 24 V DC
Power dissipation	3,0 W
Ambient conditions
Ambient temperature	-25 °C … +75 °C
Transport and storage temperature	-40 °C … +85 °C
Relative air humidity	95 % r H without condensation
Pollution degree	2
Protection rating	IP20
Mounting position	as desired
Appovals	CE
