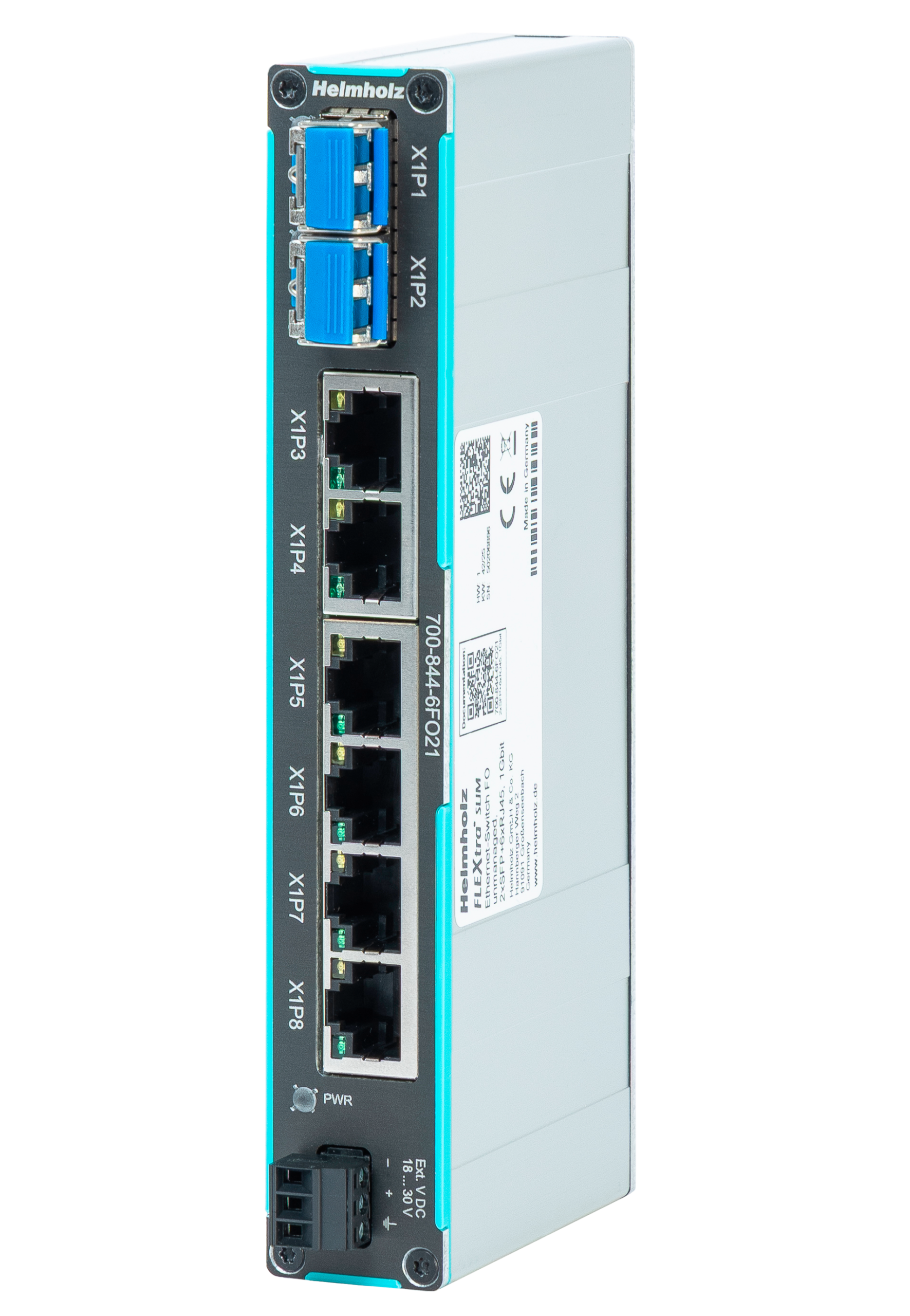

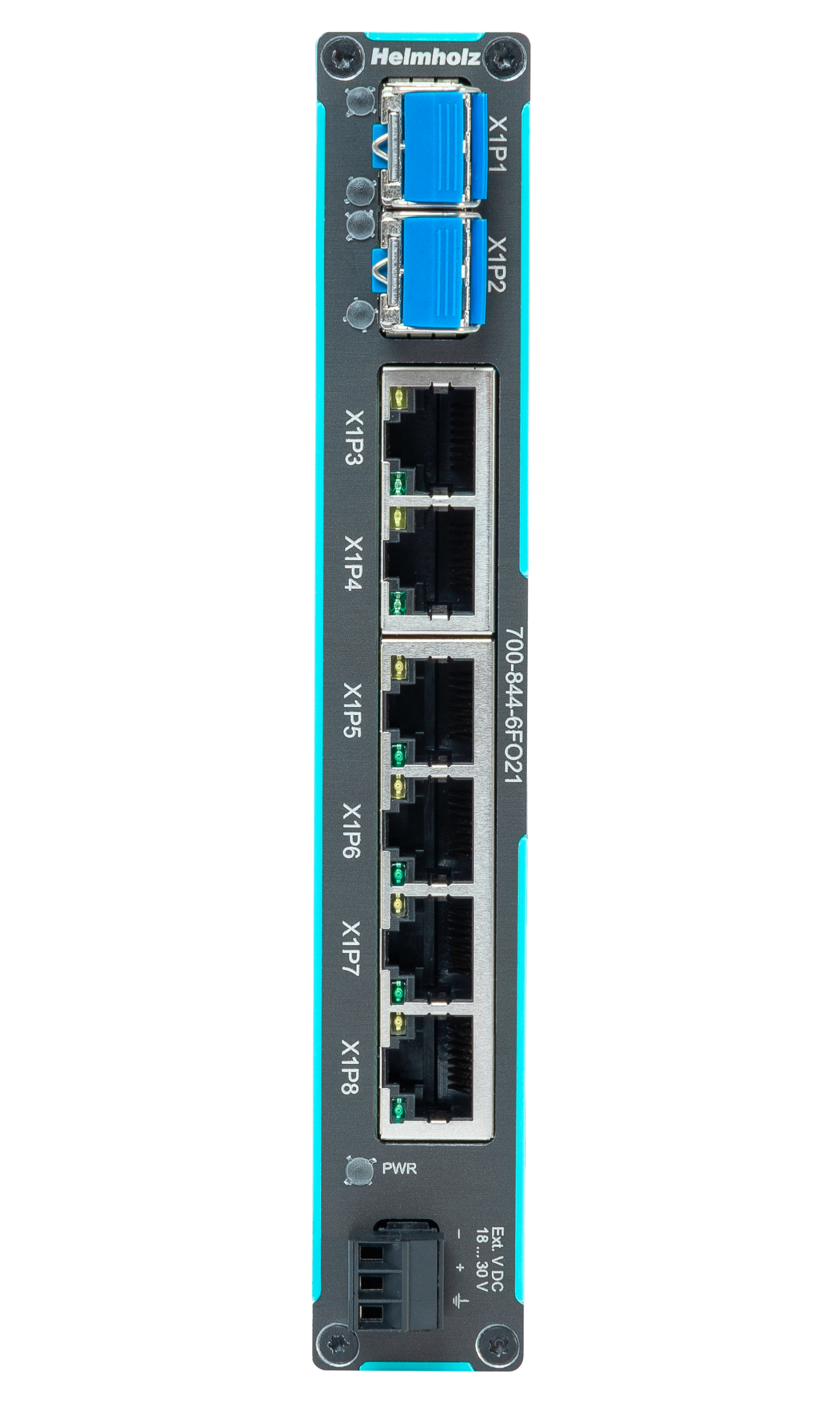

FLEXtra SLIM Ethernet-Switch, unmanaged 6x RJ45, 2x SFP 1 Gbit
€320,00
Quickly available!
The FLEXtra SLIM Switch is suitable for mounting on a top-hat rail and can be easily integrated into your network. Once plugged in, it is immediately ready for operation thanks to its simple plug & play installation. No configuration is necessary.
In addition to 6 RJ45 ports for up to 1 Gbit, there are also 2 SFP ports for fibre optic connections with up to 1 GBit.
The Ethernet switch is suitable for PROFINET networks. The LLPD (neighbourhood detection) and PTCP (time synchronisation) functions are handled correctly by the switch in accordance with the PROFINET standard. The unmanaged Ethernet switch therefore complies with PROFINET Conformance Class A.
SFP modules are not included in the scope of delivery!
- Store-and-Forward architecture
- RJ45: 10Base-T/100Base-TX/1000Base-T
- SFP/SFP+: 100Base-FX/1000Base-X
- Full-/Half-Duplex
- Autonegotiation
- Auto MDI/MDI-X (IEEE 802.3u Auto crossover support)
- LLDP & PTCP Delay-Traffic blocking (for PROFINET networks)
- PROFINET Conformance Class A
- Qos-Priority Queues: 8
- 4k MAC addres lokup table
- Maximum Frame Size: 9216 bytes
| General information | ||
| Scope of delivery | FLEXtra SLIM Ethernet-Switch FO with power supply plug | |
| Dimensions (DxWxH) | 65 x 25 x 157 mm | |
| Weight | Approx. 270g | |
| LAN interface | ||
| Number | 8 | |
| Connetion | 6x RJ45 | |
| 2 x Fiber Optic (FO) for SFP Transceiver modules, Singlemode or Multimode | ||
| Transmission rate | 10/100/1000 Mbit/s | |
| SFP/SFP+: 1000 Mbit/s | ||
| Type | ||
| 10Base-T/100Base-TX/1000Base-T | ||
| Full-/Half-Duplex (Autonegotiation) | ||
| Auto MDI/MDI-X | ||
| IEEE Autocrossover | ||
| PROFINET Conformance Class A | ||
| Status indicator | ||
| Power display | 1 LED | |
| Ethernet-Status | 16 LEDs | |
| Power supply | ||
| Voltage supply | 24 V DC (18...30 V DC) | |
| Current draw | max. 165 mA at 24 V DC | |
| Power dissipation | 4,0 W | |
| Ambient conditions | ||
| Ambient temperature | -25 °C … +75 °C | |
| Transport and storage temperature | -40 °C … +85 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Mounting position | as desired | |
| Appovals | ||
| CE |
Description |
Order number |
| FLEXtra SLIM Ethernet-Switch, unmanaged 6x RJ45, 2x SFP 1 Gbit | 700-844-6FO21 |
