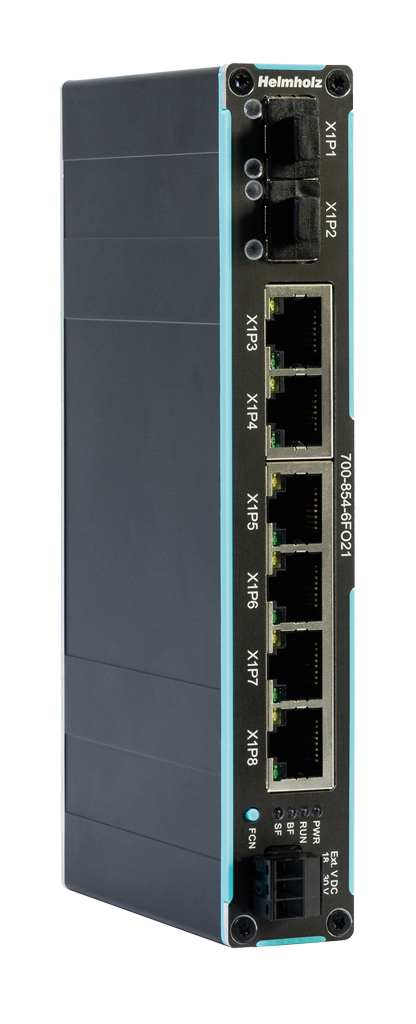

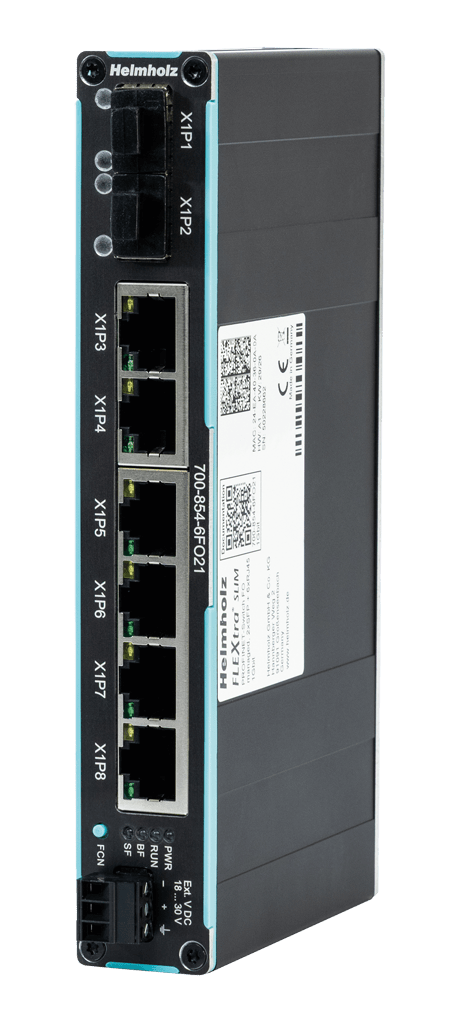

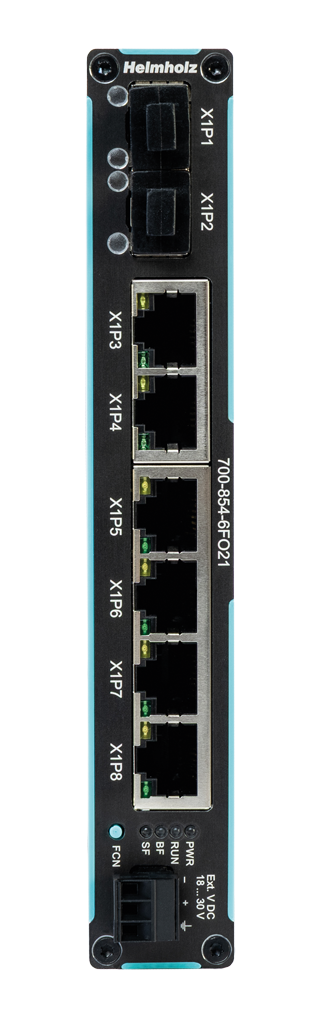

FLEXtra SLIM PROFINET-Switch, managed 6x RJ45, 2x SFP, 1GBit
€ 595
excl. VAT
Overview
One of the most important functions of a managed PROFINET-Switch is the prioritizing of the PROFINET frame traffic in the machine network. The managed switch can differentiate whether the frame is a web query, an FTP file transmission, a media stream, or a PROFINET frame. In the case of a high transmission load, the important frames can thus be prioritized in order to prevent frame losses.
With a GSDML file you can integrate the switch into your automation environment in the usual way.
The supported PROFINET protocols, such as LLDP, DCP, or even diagnosis alarms, can be easily configured and administered.
Technical advantages when using a PROFINET-Switch
- Prioritizing of PROFINET frames
- Assignment of a configuration via the device name
- Neighborhood detection
- Device exchange without programming device
- Ring redundancy
- Each port can be activated or deactivated
- Diagnostic messages for network problems
- Identification and maintenance data
- PROFINET Conformance Class B
- Integration into the automation network with GSDML file
- Quick, simple configuration and diagnosis via PROFINET and web interface
- LLDP, DCP, SNMP, diagnosis alarms
- VLAN
- Media redundancy: MRP client, RSTP
- PROFINET Device Scanner
- Port mirroring
- Network statistics (frames and errors)
Specifications
| Scope of delivery | PROFINET-Switch FO 8-Port with power supply plug |
|---|---|
| Dimensions (D x W x H) | 80 x 25 x 157 mm |
| Weight | Ca. 280 g |
| Connection | 6 x RJ45 |
|---|---|
| 2 x Fiber Optic (FO) for SFP Transceiver Module, Singlemode or Multimode | |
| Transmission rate | RJ45: 10/100/1000 Mbit/s |
| SFP: 1000 Mbit/s | |
| Protocol | PROFINET IO Device as defined in IEC 61158-6-10 |
| Features | PROFINET Conformance Class B (in preparation), Netload Class III, Media Redundancy (MRP), automatic addressing (DCP), topology detection (LLDP), diagnostic alarms, VLAN, SNMP V2/V3, Port-Mirroring, Port statistics |
| Function status | 4 LEDs (PWR, RUN, BF, SF) |
|---|---|
| Ethernet status | 16 LEDs (bi-colored) |
| Operating voltage | DC 24 V, 18 − 30 V DC |
|---|---|
| Current draw | max. 310 mA with DC 24 V |
| Power dissipation | Max. 7.4 W |
| Ambient temperature | -40° C to +70° C |
|---|---|
| Transport and storage temperature | -40° C to +85° C |
| Relative humidity | 95% without condensation |
| Protection rating | IP 20 |
| Approvals | CE, PROFINET Conformance Class B (in preparation) |
Ordering
Every version with its price and availability. Prices exclude VAT.
| Order number | Description | Price | Availability | Action |
|---|---|---|---|---|
| 700-854-6FO21 | FLEXtra SLIM PROFINET-Switch, managed 6x RJ45, 2x SFP, 1GBit | € 595 | Quickly available |
Downloads
| Document | Version | Format | Download |
|---|---|---|---|
| FLEXtra SLIM PROFINET-Switch, manual | V3 | Download FLEXtra SLIM PROFINET-Switch, manual | |
| FLEXtra SLIM PROFINET-Switch, Quickstart Guide | V2 | Download FLEXtra SLIM PROFINET-Switch, Quickstart Guide |
| Document | Version | Format | Download |
|---|---|---|---|
| GSDML V2.45 Flextra Slim PN Switch | 20260708 | ZIP | Download GSDML V2.45 Flextra Slim PN Switch |
