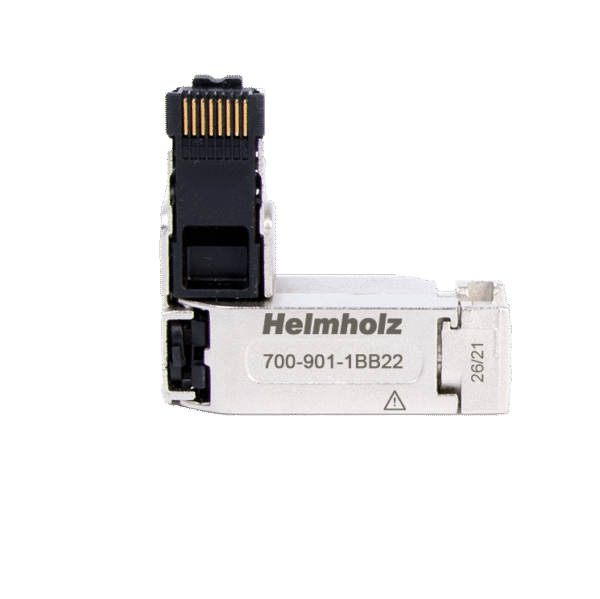

Industrial ethernet connector, RJ45, 1 Gb, EasyConnect®, 90°

Industrial ethernet connector, RJ45, 1 Gb, EasyConnect®, 90°

The industrial-grade metal housing provides the necessary ruggedness so that the plug can be used in many industrial applications.
To save the user time in wiring, the RJ45 connector can be assembled in a single step using the fast connection technology EasyConnect®. Solid single wires and strands can be used. The color-coded contact elements also help avoid connection errors. In addition, the RJ45 connectors are designed in protection class IP20 and for transmission rates up to 1000 Mbps.

  • Color-coded contact elements help to avoid connection errors
  • Transmission rates up to 1 Gbps
  • Tool-free installation
  • EasyConnect® RJ45 connection (IDC) for industrial applications
  • 90° axial cable outlet
Cable outlet 90°
Connector typeEasyConnect®
Connectible cablesIndustrial ethernet cable 8 pin
Cable cross-section8 x 24 AWG
Maximum outside diameter8 mm
Ambient conditions:
Ambient temperature-20°C ... +70°C
Transport and storage temperature-40 °C … +80 °C
Relative air humidity95 % r H without condensation
Pollution degree2
Protection ratingIP20
Certifications:CE, UL
