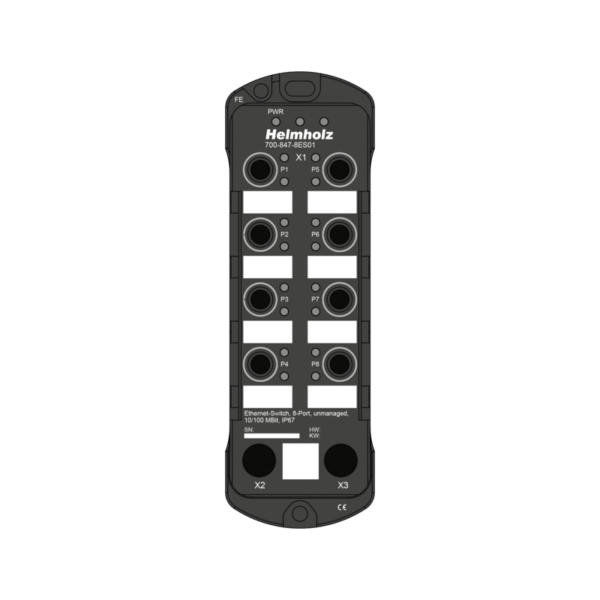

FLEXtra IP67 Unmanaged Ethernet IP67 Switch 8-ports
The Helmholz unmanaged Ethernet-Switch IP67 is a very compact switch for a wide range of industrial applications. Thanks to its high IP67 protection class and temperature range from -40 °C to +75 °C, the IP67 unmanaged Ethernet-Switch is ideal for use in rough industrial environments.
FLEXtra IP67 Unmanaged Ethernet IP67 Switch 8-ports
The Helmholz unmanaged Ethernet-Switch IP67 is a very compact switch for a wide range of industrial applications. Thanks to its high IP67 protection class and temperature range from -40 ?C to +75 ?C, the IP67 unmanaged Ethernet-Switch is ideal for use in rough industrial environments. The product is ideally suited for installation without a control cabinet and therefore offers a wide range of applications. Once plugged in, the simple Plug & Play solution makes it immediately ready for use.
With this variant of the unmanaged Ethernet switch you can connect up to 8 Ethernet subscribers with 10 or 100 Mbps.
- Store-and-Forward architecture
- 10/100Base-T/TX, Full-/Half-Duplex (Autonegotiation)
- HP Auto MDI/MDI-X & IEEE 802.3u Auto crossover support
- CoS according to IEEE 802.1Q
- Qos-Priority-Queues: 8
- LLDP & PTCP Delay-Traffic blocking (for PROFINET networks)
- 16K MAC address lookup table
- 256 KByte memory for frame buffering
- 51.2 Gbps high-performance memory bandwidth
- Unmanaged switch with 8 x 10/100 Mbps M12 ports
- Protection class IP67
- Switch cabinet-less mounting possible
Vraag direct een offerte aan!
FLEXtra IP67 Unmanaged Ethernet IP67 Switch 8-ports
Direct leverbaar!
| General information | ||
| Scope of delivery | Ethernet-Switch 8-port, Brief Instruction | |
| Dimensions (DxWxH) | 24 x 62 x 190 mm | |
| Weight | Approx. 410g | |
| LAN interface: | ||
| Number | 8 | |
| Type | 10/100Base-T/TX, Full-/Half-Duplex (Autonegotiation), Auto MDI/MDI-X, IEEE Autocrossover | |
| Connection | M12 D-Coded | |
| Transmission rate | 10/100 Mbps | |
| Status indicator | 1 LEDs power display, 16 LEDs Ethernet status | |
| Voltage supply (X2) | 24 V DC (18...30 V DC) | |
| Connection | M12 L-Coded | |
| Current draw | Max. 100 mA with 24 V DC | |
| Ambient conditions: | ||
| Ambient temperature | -40 °C … +75 °C | |
| Transport and storage temperature | -40 °C … +85 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Protection rate | IP67 | |
| Certifications | CE | |
| CE: | ||
| RoHS | Yes | |
| REACH | Yes |
Description |
Order number |
| Ethernet-Switch, IP67, unmanaged, 8-port | 700-847-8ES01 |
| Ethernet-Switch 8-port, IP67, Brief Instruction | Versie: 2 |
| Unmanaged ethernet-Switch 8-port, IP67 STEP file | Versie: |
