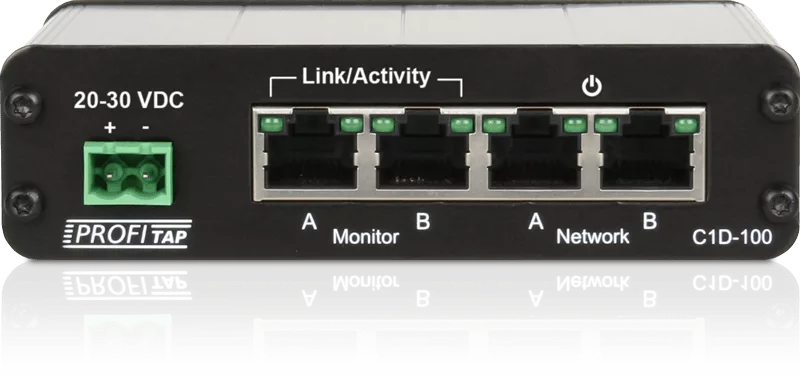

Industrial Fast Ethernet Copper TAP with DIN Rail Mount

Industrial Fast Ethernet Copper TAP with DIN Rail Mount

This Copper TAP is identical to the Portable Gigabit Full Duplex Copper one, with a few slight modifications, which makes the device especially useful for your industrial network infrastructure.

A signature industrial network TAP, it uses 20-30 VDC powering and can be mounted on a DIN rail. It’s built to boast comprehensive functionalities, while still incorporating a lightweight, highly modern design.

The TAP is non-intrusive, has no IP address and provides monitoring devices with an accurate copy of the traffic.  The TAP does all of these without having any impact on your network.

  • Non-intrusive in-line monitoring
  • Permanent network link guaranteed
  • Zero failover time or link restoration delay
  • Monitoring of all 7 OSI layers
  • In-Line mode
  • No packet loss, no point of failure
  • Fully 802.3af & VoIP compliant
  • Low power consumption
dimensions (WxDxH)113 x 88 x 30 mm
power input1 x 20–30 VDC TERMINAL BLOCK CONNECTOR
connectors4 x RJ45 8-PIN

Omschrijving

Bestelnummer

100M DIN Copper TAP With DIN rail mount and 20-30 VDC poweringC1D-100-HB

Technische documentatie

C1D-100-HB DatasheetVersie: 1.0
