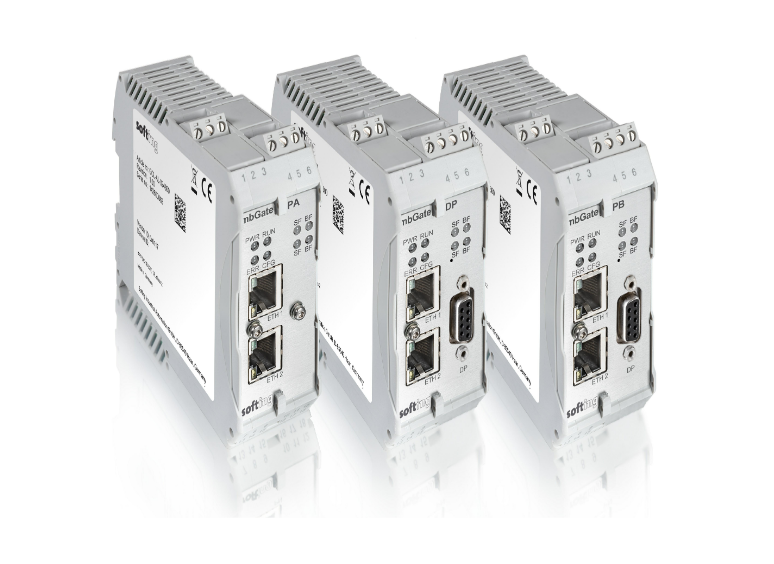

mbGate DP

Please contact us for up-to-date delivery information.

Contact Us

Modbus TCP server to PROFIBUS DP Master

Simple connection of PROFIBUS DP Slave devices to Modbus control systems via internal I/O mapping

With mbGate DP it is possible to integrate one PROFIBUS DP segment into Modbus TCP control systems. It acts as Modbus TCP Server and PROFIBUS DP Master. With our gateways the engineering costs can be reduced since it re-uses existing PROFIBUS DP segment without the requiring modification. It enables simple configuration, parameterization and plant asset management using standard industry tools and is compatible with products of leading PLC Manufacturers.



Overview

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major Modbus engineering tools such as Schneider Unity Pro or Siemens TIA Portal
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM

Direct Connectivity to PROFIBUS Segments

  • Single access point to PROFIBUS DP segment from Modbus TCP networks
  • Acting as Modbus TCP Server and PROFIBUS DP Master
  • Support of one PROFIBUS DP segment
  • Support of up to 32 PROFIBUS devices

Key Component for Transition to State-of-the-Art Technology

  • Re-use of existing PROFIBUS DP segment without requiring modification
  • Easy integration into PLC programming software

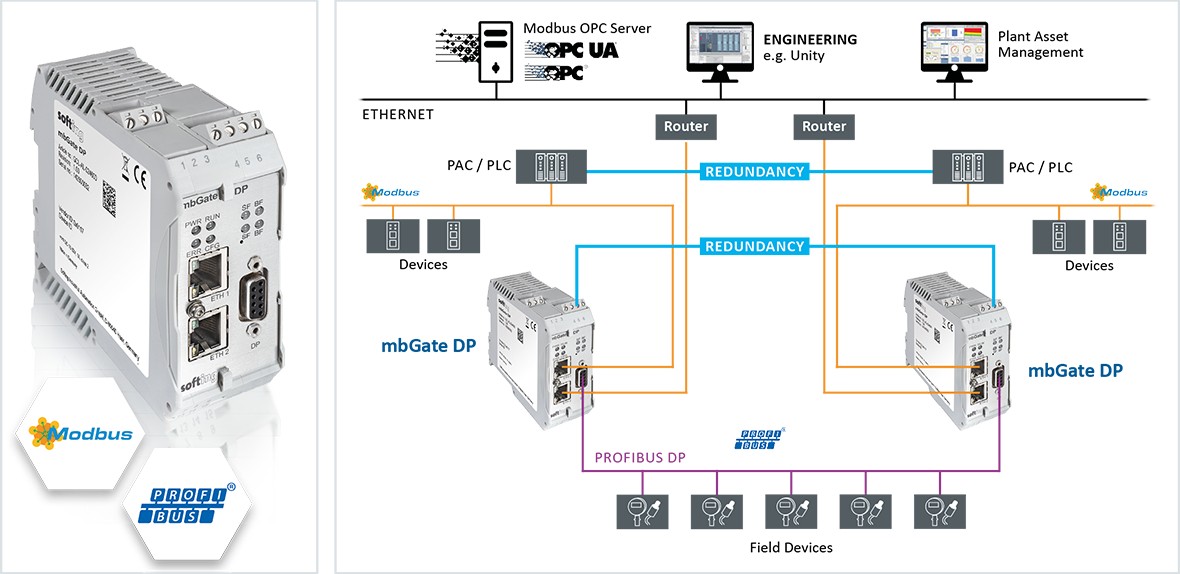

MODBUS/TCP Redundancy

  • Supports the use of two redundant PLCs and two redundant gateways
  • Easily enabled via licensing
  • Full control of redundant operation mode via engineering and PLC
  • Acting as Modbus TCP Server and PROFIBUS DP Master
  • Support of one PROFIBUS DP segment
  • Support of up to 32 PROFIBUS devices
  • Supports the use of two redundant PLCs and two redundant gateways
  • Full control of redundant operation mode via engineering and PLC
Interfaces and Connectors
Ethernet
Connectors2 × IEEE 802.3 100BASE-TX / 10BASE-T, managed Ethernet switch for daisy-chain topology Connectors: RJ45
ProtocolModbus TCP Server
PROFIBUS DP-V0 / V1
Connectors9-pin Sub-D
Protocol1 segment with RS485 physical layer
Physical Properties
Dimensions (H × W × D)100 mm × 40 mm × 115 mm
WeightApprox. 0.25 kg
Power Supply18 VDC … 32 VDC - SELV/PELV supply required
currentTypical input current: 200 mA, maximum input current: 1 A
Typical Power Loss5 W
Transport and Storage Temperature−40 °C … +60 °C / −40 °C … +85 °C
Relative Humidity10% … 95%, non-condensing
Protection ClassIP20

Description

Order number

mbGate DP, Modbus TCP to PROFIBUS DP Gateway. Supports 1 PROFIBUS DP segment (RS485)GCA-EN-024806

Manuals

mbGate | Modbus Gateways User Guide Versie: V1.22-1

Configuration files

sample projects Versie: 1
