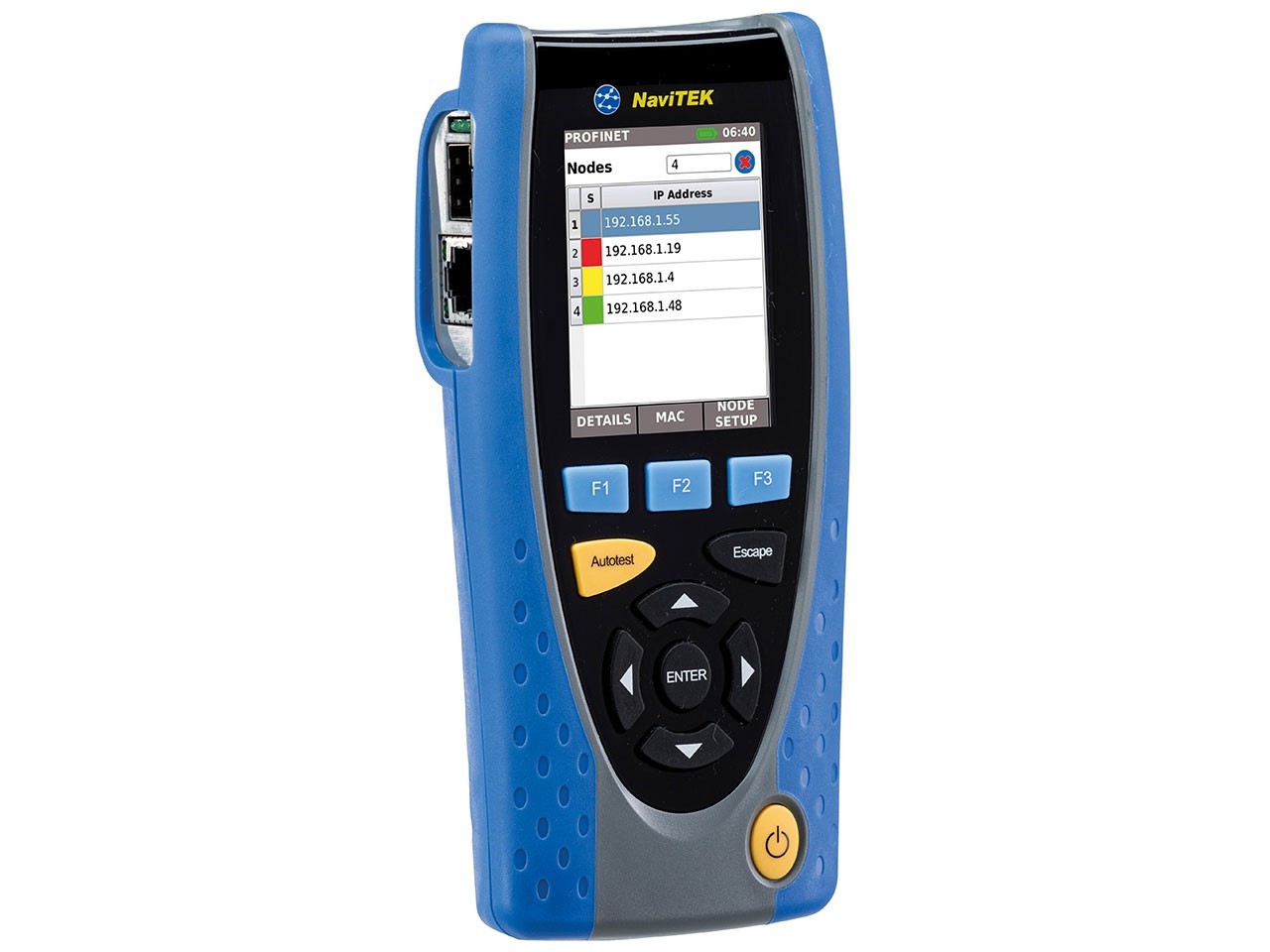

The NaviTEK IE is a tester for commissioning, preventative maintenance and troubleshooting of PROFINET Industrial Ethernet networks as well as standard Ethernet IP networks.

Designed to simplify the process, the NaviTEK IE identifies network nodes and configuration without requiring a PC and speciality software. An easy to understand system health check pinpoints potential issues before they become network failures. Automatically discover cable, network or device configuration/faults with the touch of a button.

To prove the network has been commissioned successfully, NaviTEK IE provides professional PDF reports that can be shared with colleagues and clients using the free IDEAL AnyWare™  mobile app.

  • Pinpoint cable faults on copper and fibre cabling
  • Easily configure nodes to resolve connectivity issues
  • Prevent network failures with the health check feature
  • Locate hard to find devices using the device blink feature
  • Find mis-configured devices using the NetMAP comparison tool
  • Find rogue devices using the 48 hour event log
  • Create professional PDF reports for your clients
  • Send reports anywhere using the free IDEAL AnyWARE app
Display network configuration - IPv4 / IPv6 compatible
Wiremap for miswires, split pairs, opens and shorts
Distance to opens and shorts (TDR)
PoE/PoE+ detection and load test
Tone generator for cable tracing
Autotest button performs Ping and Traceroute test (network mode)
Hub blink for port identification
DHCP client
Switch speed detection -10/100/1000 Mb/s
User-exchangeable RJ45 inserts
Support for up to 12 wiremap remotes
Network Probe (NET TEST) provides detailed network information of each device
Port identification using EDP/ CDP/ LLDP protocols
VLAN detection
Traffic utilisation bar graph
Generate test reports (PDF or CSV)
Optical interface with power level and pass/fail indication with supported SFP
M12 PROFINET Cable Testing
PROFINET Fibre Cable Testing
Traffic light network health check
Device LED flash to locate devices faster
NETMAP compare – identify changes in the network
Configure node settings without the need for a laptop
List all network node details ie IP Address, Vendor details, Software version etc
Ability to reset device to factory defaults
Device alarm/error detection
Professional Industrial Ethernet PDF Reports



NaviTEK IE – PROFINET Industrial Ethernet Tester R151010
