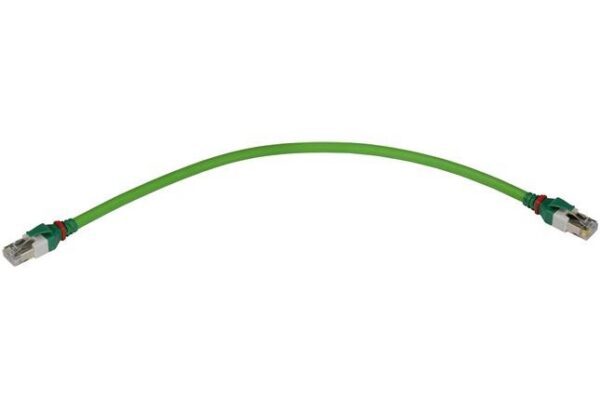

PROFINET Patchcable- Conformance Class B – CAT5e – Type C
In industrial networks, reliability is essential. PROFINET patch cables form the backbone of your automation system, ensuring a stable, fast, and secure connection between your devices. At Helmholz Benelux, we offer high-quality PROFINET patch cables that meet the strictest industrial standards.
Why Choose PROFINET Patch Cables from Helmholz?
Excellent Signal Quality: Our patch cables are optimized for high data speeds and minimal signal loss.
Industrial Durability: Options with resistance to oil, vibrations, and extreme temperatures.
Easy Installation: Flexible and equipped with pre-assembled RJ45 and M12 connectors.
Compatibility: Complies with PROFINET guidelines for reliable operation within your network.
PROFINET Cable Types
- PROFINET Type A: Designed for fixed installations, offering high performance and durability.
- PROFINET Type B: Suitable for flexible installations with improved resistance to bending and movement.
- PROFINET Type C: Ultra-flexible for continuous motion applications, ideal for robotic and drag chain use.
- RJ45 aan beide zijden
- 4-aderig
- PROFINET groen
- Geschikt voor PROFINET Conformance Class B applicaties
- Type B - flexibel
| Product Category: | Ethernet Cables / PROFINET Cables |
| RoHS | RoHS Compliant |
| Type: | Cat 5e |
| Connector End A: | RJ45 |
| Connector End A Pin Count: | 4 Position |
| Connector End B: | RJ45 |
| Connector End B Pin Count: | 4 Position |
| Color: | Green |
| Number of Conductors: | 4 |
| Wire Gauge - AWG: | 22/7 AWG |
| Gender: | Male / Male |
| Jacket Material: | PVC |
| Transmission characteristics: | Cat. 5 Class D up to 100 MHz |
| Operating temperature: | -25 ... +60 °C |
Description |
Order number |
| 0,5m | 09 48 68 68 001 005 |
| 1m | 09 48 68 68 001 010 |
| 1,5m | 09 48 68 68 001 015 |
| 3m | 09 48 68 68 001 030 |
| 5m | 09 48 68 68 001 050 |
| 7,5m | 09 48 68 68 001 075 |
| 10m | 09 48 68 68 001 100 |
| 15m | 09 48 68 68 001 150 |
| 20m | 09 48 68 68 001 200 |
