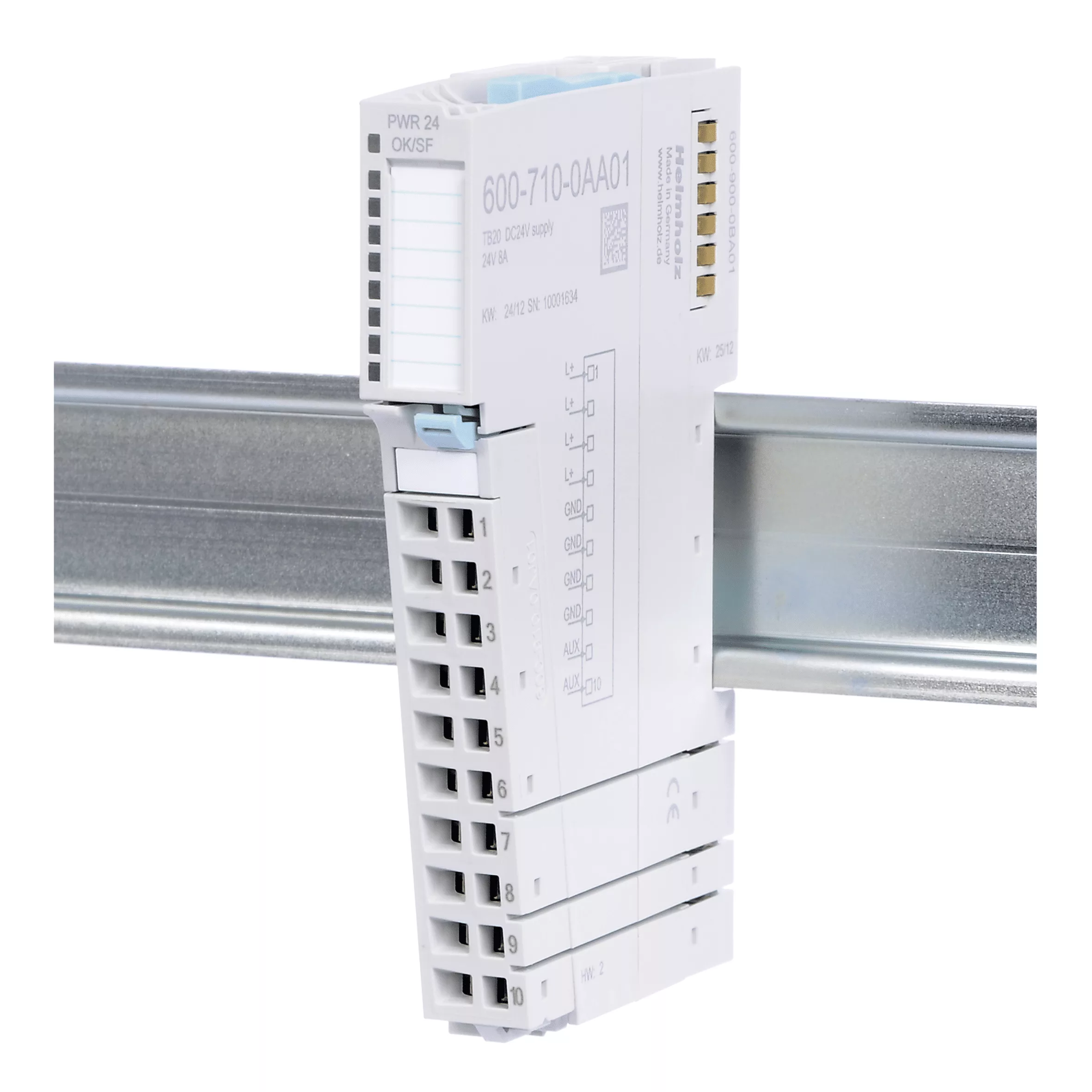

Power and isolation module, DC 24 V, 8 A

Power and isolation module, DC 24 V, 8 A

The 24 V DC, 8 A power and isolation module serves as a power supply module for the power bus? 24 V DC, GND, and AUX to the right, while segmenting the power bus on the left.
This module can be used to subdivide a power bus into individual segments.

  • Powers the power bus to the right
  • Segments the power bus to the left
  • A green LED indicates the 24 V DC status
  • A blue LED indicates the module's operating status
Load
Per contact8 A
Total 24 VDC supply8 A
Total GND supply8 A
Total AUX supply8 A
Hot-swap capableYes

Description

Order number

Power and isolation module, DC 24 V, 8 A600-710-0AA01
