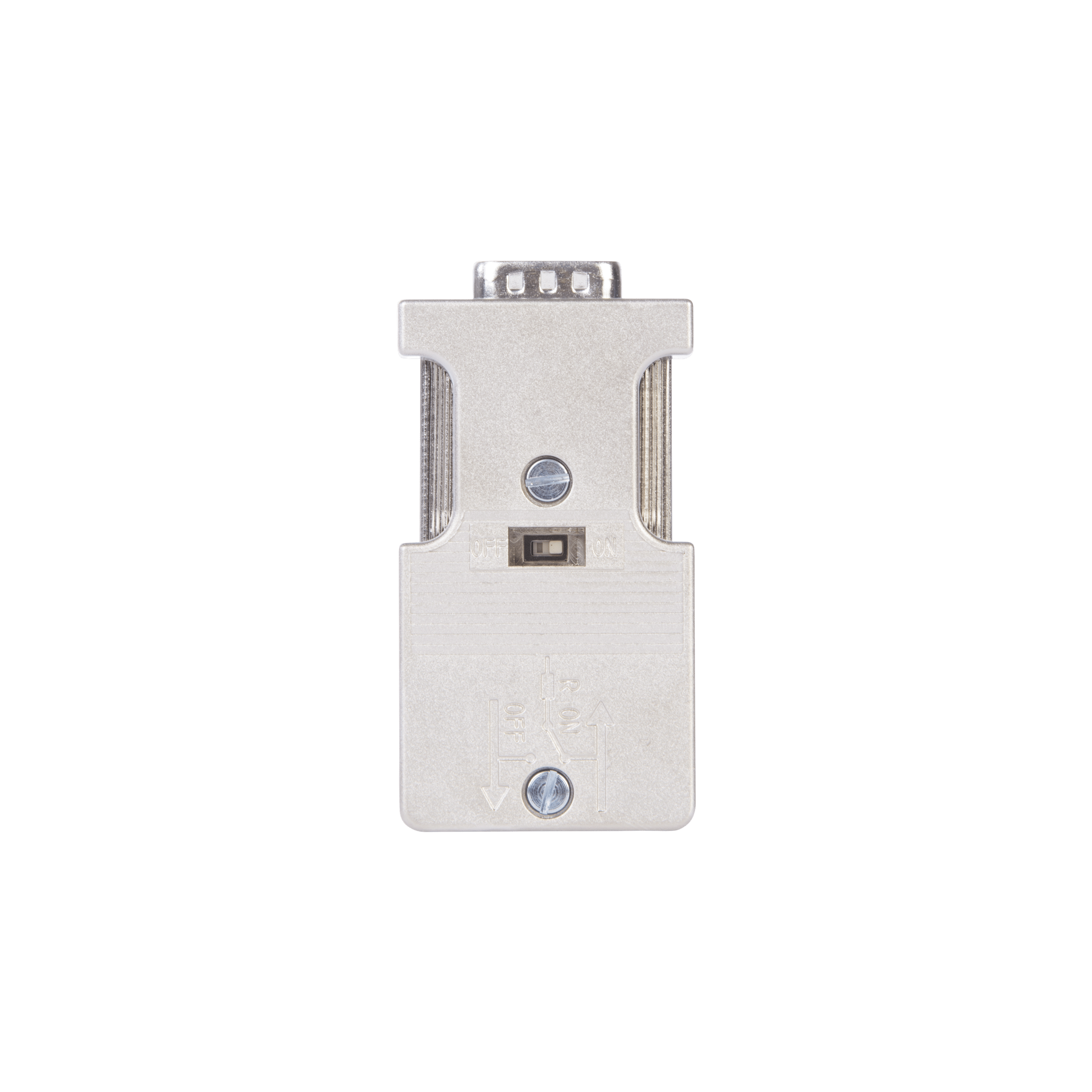

PROFIBUS connector, axial, screw terminal

It is quickly mounted and has integrated, connectible terminating resistors.
For improved EMC compatibility, the housing of the plug is metalized.
The PROFIBUS connector works in the extended ambient temperature range of -25 °C to +85 °C.

  • Metalized housing
  • No parts that can be lost
  • Integrated switchable terminating resistor
  • Axial cable outlet
  • Proven screw terminal
  • The PROFIBUS connectors are also available in packs of 10 or 50
  • The maximum ambient temperature for UL is +60 °C.
Cable outletAxial cable outlet, suitable for FastConnect stripping tool
PROFIBUS interface
Transmission ratemax. 12 Mbps
ConnectionSUB-D, 9 pin
Terminating resistorResistor combination integrated and switchable using slide switch
PG connection socketno
PROFIBUS bus cable60/75 °C copper cable up to 1.0 mm2
Connector
Connector typeterminal strips
Number4
Maximum outside diameter8.0 mm
Voltage supply+4.75 … +5.25 V DC (must come from the device)
Current drawMax. 12.5 mA

Omschrijving

Bestelnummer

PROFIBUS connector, axial, screw terminal700-972-0CA12
