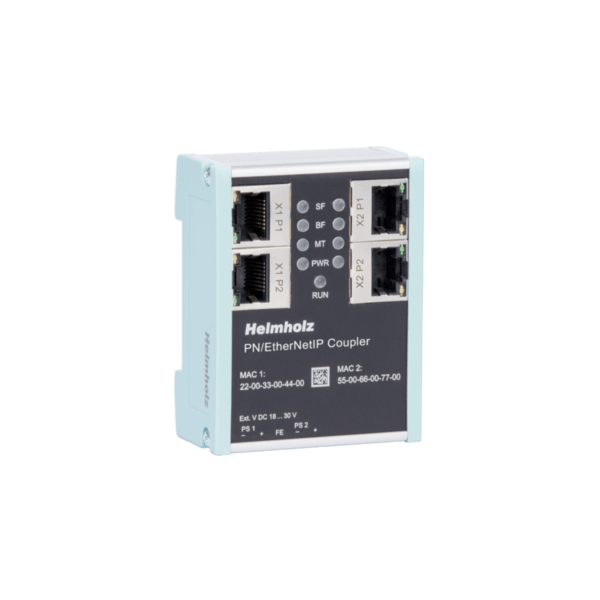

PN/EtherNetIP Coupler
PN/EtherNetIP Coupler

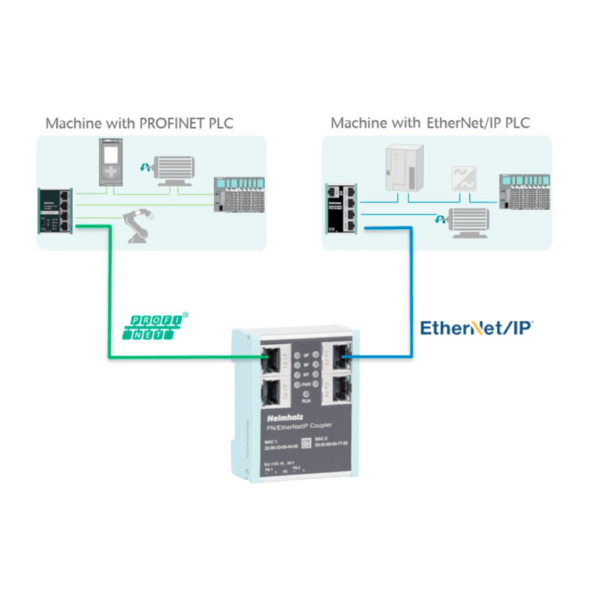

With the PN/EtherNetIP Coupler, a simple and uncomplicated connection of a PROFINET machine to an EtherNet/IP machine is possible. The PN/EtherNetIP Coupler allows data transmission between a PROFINET controller and an EtherNet/IP PLC.
Received input data on one side of the network are made available as output data on the other side of the network to the PLC. The I/O data exchange takes place live and as fast as possible without further handling blocks.
The maximum size of the transferable I/O data is 1024 bytes. Up to 3 input and 3 output assemblies can be configured on the EtherNet/IP network side. Up to 300 slots are available for I/O modules.
The integration into the PLC engineering tool is made possible by a GSDML file, an extra configuration software is not necessary. The configuration of the I/O data to be exchanged is performed in the Siemens engineering tool. An EDS file matching the configuration can then be downloaded from the website by the PN/EtherNetIP Coupler and used to configure the EtherNet/IP PLC

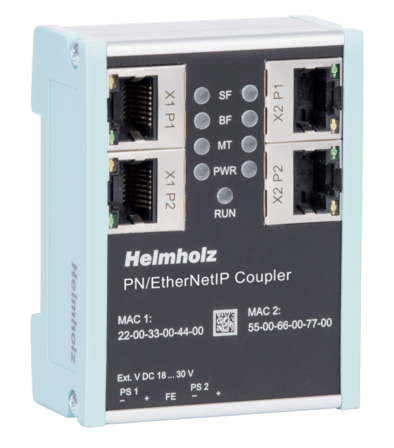

- Very compact design for DIN rail mounting
- Redundant power supply
- Galvanic isolation of the networks
- Up to 1024 input/output data
- 300 configurable slots for PROFINET IO data
- 3 input and 3 output assemblies
- Configuration only with GSDML file, no additional software required
- EDS file downloadable
- Diagnostics website
- MQTT Publisher on both network sides (PROFINET & Ethernet/IP)
Vraag direct een offerte aan!
PN/EtherNetIP Coupler
Direct leverbaar!
PROFINET Interface: | ||||
Number | 1 with 2 ports | |||
Protocol | PROFINET IO as defined in IEC 61158-6-10 | |||
Transmission rate | 100 Mbps full duplex | |||
I/O image size | max. 1024 bytes of input and output data | |||
Connection | 2x RJ45 | |||
Integrated switch | Yes | |||
Features | Media Redundancy Protocol (MRP), automatic addressing, topology detection (LLDP, DCP), diagnosis alarm | |||
Ethernet/IP interface: | ||||
Number | 1 with 2 ports | |||
Connection | 2x RJ45 | |||
Integrated switch | Yes | |||
Protocol transmission model | EtherNet/IP | implicit messaging (Transport Class 1) | explicit messaging (Transport Class 3) | |
Transmission rate | 10/100 Mbit/s, full-/half duplex | |||
Status indicator: | 9 LEDs function status, 8 LEDs Ethernet status | |||
Voltage supply: | 24 V DC (18 ... 28 V DC) | |||
Current draw: | max. 210 mA | |||
Ambient conditions: | ||||
Ambient temperature | 0 °C to 60 °C | |||
Transport and storage temperature | -20 °C to 80 °C | |||
Protection rating | IP 20 | |||
Certifications | CE, PROFINET Conformance Class B (in preparation) | |||
RoHS | Yes | |||
REACH | Yes |
Description |
Order number |
PN/EtherNetIP Coupler | 700-160-3EN02 |
Easy connection of fieldbus networks – with Helmholz PROFINET gateways | Versie: 10-2023 |
PN/EthernetIP Coupler, Quick Start Guide | Versie: 3 |
PN/EtherNetIP Coupler, GSDML file | Versie: 20220518 |
IPset | Versie: 1.04.016 |
PN/EthernetIP Coupler, Firmware | Versie: V1.04.002 |
