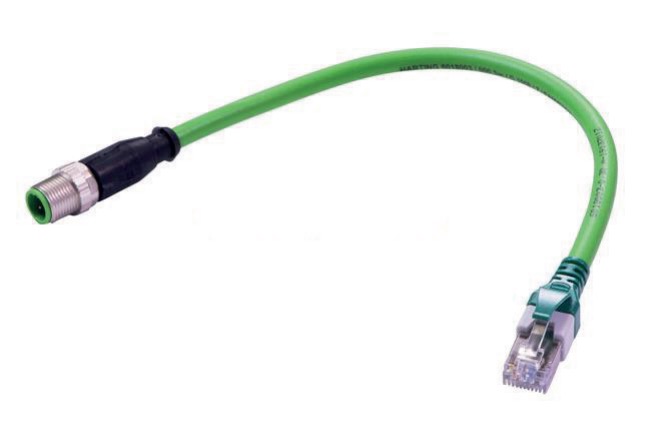

PROFINET Patchcable – M12/RJ45 – D-coded AWG22/19 PUR
In industrial networks, reliability is essential. PROFINET patch cables form the backbone of your automation system, ensuring a stable, fast, and secure connection between your devices. At Helmholz Benelux, we offer high-quality PROFINET patch cables that meet the strictest industrial standards.
Why Choose PROFINET Patch Cables from Helmholz?
Excellent Signal Quality: Our patch cables are optimized for high data speeds and minimal signal loss.
Industrial Durability: Options with resistance to oil, vibrations, and extreme temperatures.
Easy Installation: Flexible and equipped with pre-assembled RJ45 and M12 connectors.
Compatibility: Complies with PROFINET guidelines for reliable operation within your network.
- Pre-assembled on both sides
- Suitable for PROFINET Conformance Class B applications
- Sheath material PUR
| Product Category: | Ethernet Cables / PROFINET Cables |
| RoHS | RoHS Compliant |
| Type: | Cat 5 Class D up to 100 MHz |
| Connector End B: | M12 D-Coded Male |
| Connector End B: | RJ45 |
| Color: | Green |
| Cable core structure: | 4x AWG 22/19 |
| Bending radius: | 5c Cable diameter (singular bending) |
| Drag chain compatible: | yes |
| Bending cycles: | ≥ 5.000.000 @ Bending radius = 75 mm @ length ≤ 5 m @ speed ≤ 5 m/s @ acceleration ≤ 20 m/s ² |
| Cycles of alternating bending (tic-toc test): | 1.000.000 @ Bending radius = 75 mm |
| Torsional strength: | ≥ 5.000.000 @ torsion angle= ±180° @ 1m |
| Transmission rate: | 10/100 Mbit/s |
| Operating temperature: | -20 ... +60 °C |
Description |
Order number |
| 0,3m | 700-601-8003 |
| 0,5m | 700-601-8005 |
| 1,0m | 700-601-8010 |
| 1,5m | 700-601-8015 |
| 2,0m | 700-601-8020 |
| 3,0m | 700-601-8030 |
| 5,0m | 700-601-8050 |
